Tokheim Quantium 510 - M-SAT Dispenser with Lifting Slots on Metal Profile Transport Pallet

Page 5-18 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual

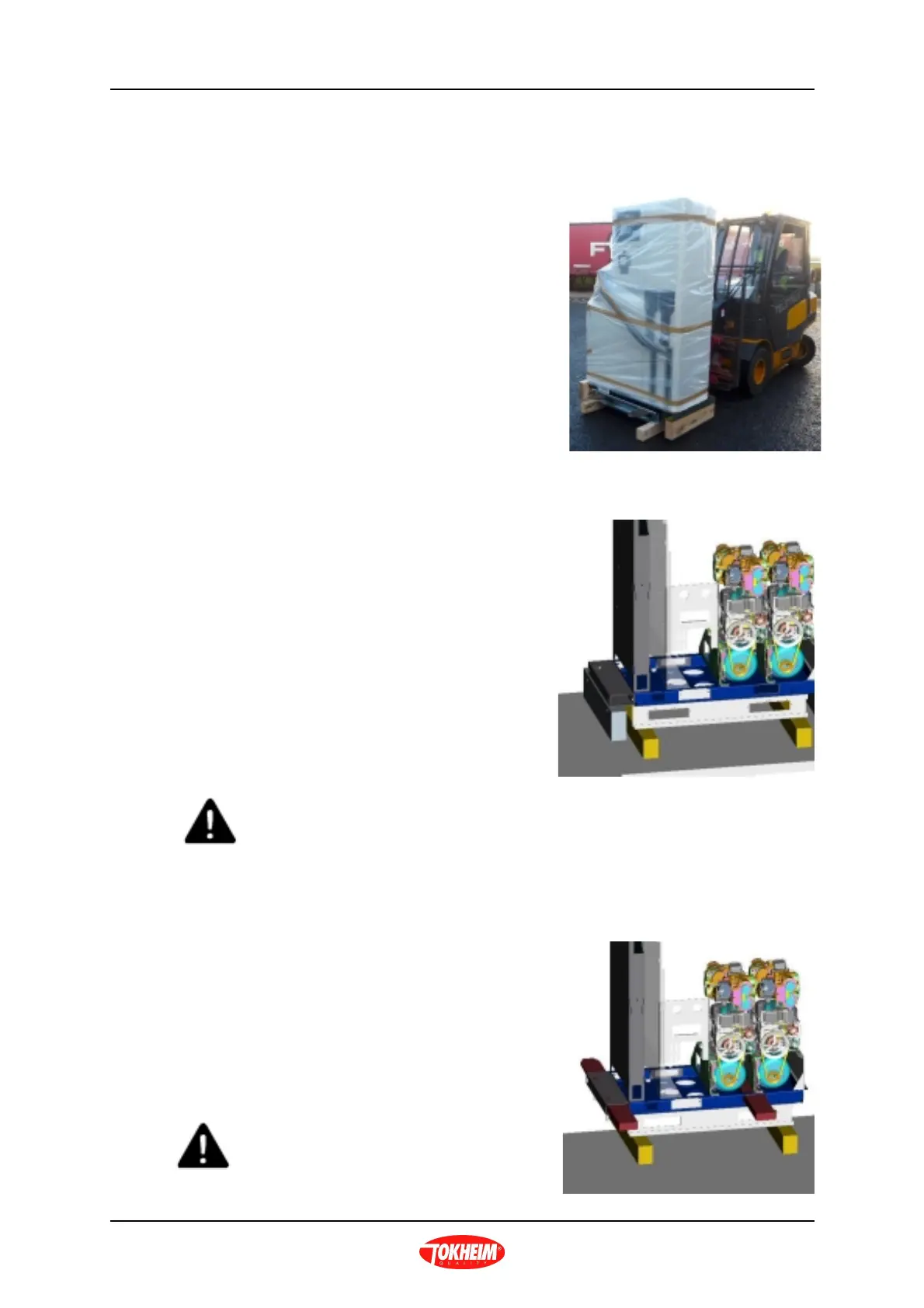

1) Unload the dispenser from the transport
truck and place it on even ground.
Remove the forklift truck and remove the
transport packaging.
2) Using a 19mm spanner or socket, loosen
and remove the bolts holding the end
pallet sections. Remove the wooden end
sections from both sides of the dispenser.
Follow the instructions in section 4.6 to
access the dispenser hydraulic area and
remove the hydraulic doors from both
sides of the dispenser.
3) With the dispenser stable on the central wooden transport pallet, position the
forks of a suitable forklift to the lifting slot in the driptray and lifting bracket
located on the hose management side
of the dispenser. Carefully insert the
forks into the lifting positions.
Note : Do not raise the dispenser.
Note : The forklift slot in the lifting bracket is 100mm x 40mm and only
a suitable forklift can be used for placement.
5.4.6 M-SAT DISPENSER WITH LIFTING SLOTS ON METAL PROFILE
TRANSPORT PALLET
