Tokheim Quantium 510 - Dispenser Dimensions

Page 3-2
Document Ref 942583-001 Rev 8
Drawings Quantium 510 Installation Manual
3 DRAWINGS

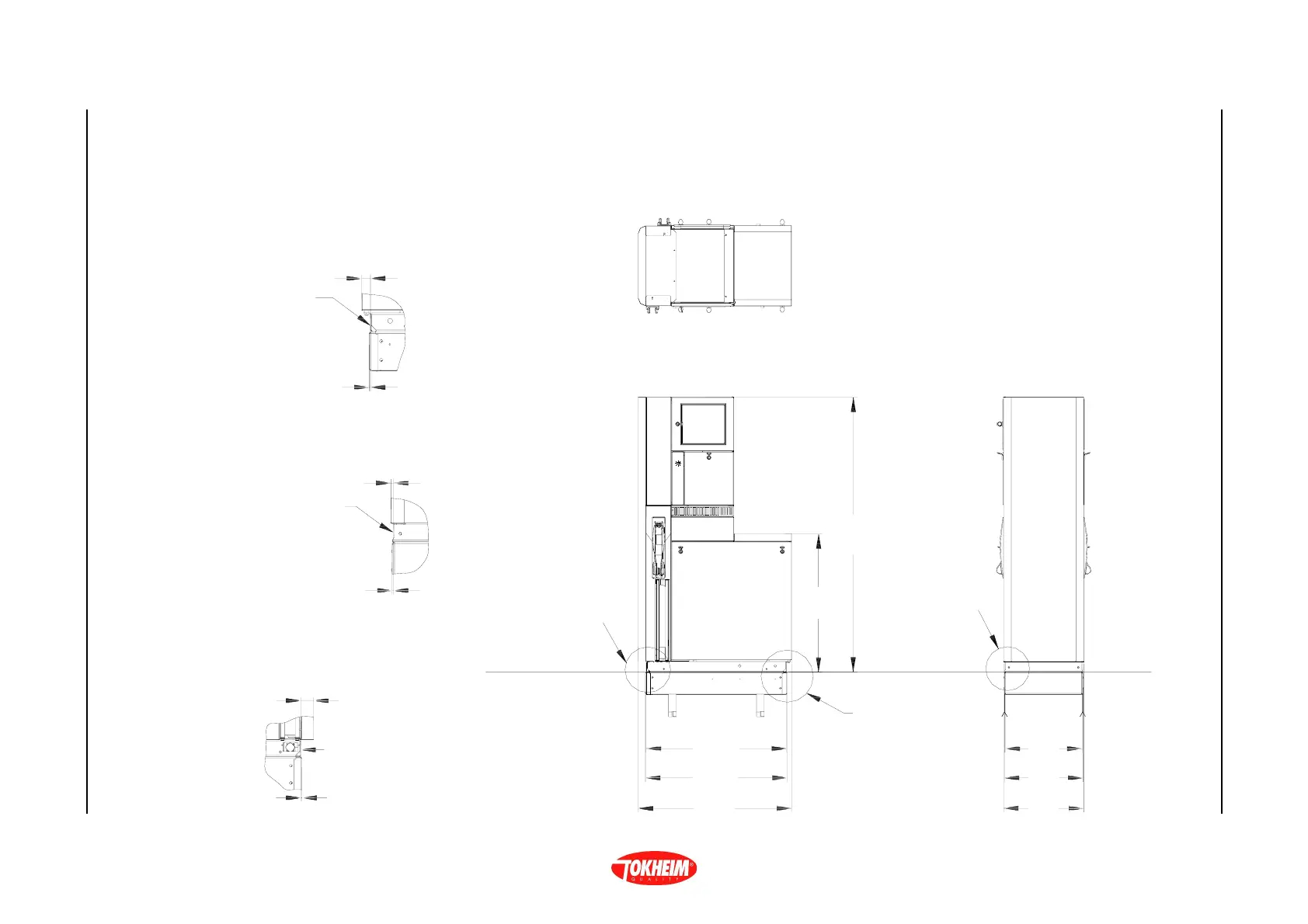

3.1 Dispenser Dimensions
3.1.1 TWO FRAMES & ONE COLUMN MODELS (1-1, 1-2, HS 1-1, HSM 1-1, HS 1-2, HSM 1-2, THS 1-2, VHS 1-1, VHS
1-2, VHSM 1-2)
Cladding extent (column)
Edge of driptray base
Groundframe extent
Cladding extent (door)
Edge of driptray base
Groundframe extent
Cladding extent
(end panel)
Edge of driptray base
Groundframe extent
Groundframe extent
Driptray extent
Cladding extent
50
8.0
12
5.0
33.5
8.0
911.5
927.5
995
500
510
520
900
1781
B SIDE
A SIDE
DETAIL A
DETAIL B
SEE DETAIL A
SEE DETAIL B
SEE DETAIL C
DETAIL C
Island Level
