Tokheim Quantium 510 - Dispenser with Lifting Slots and on Wooden Transit Pallet

Page 5-12 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual

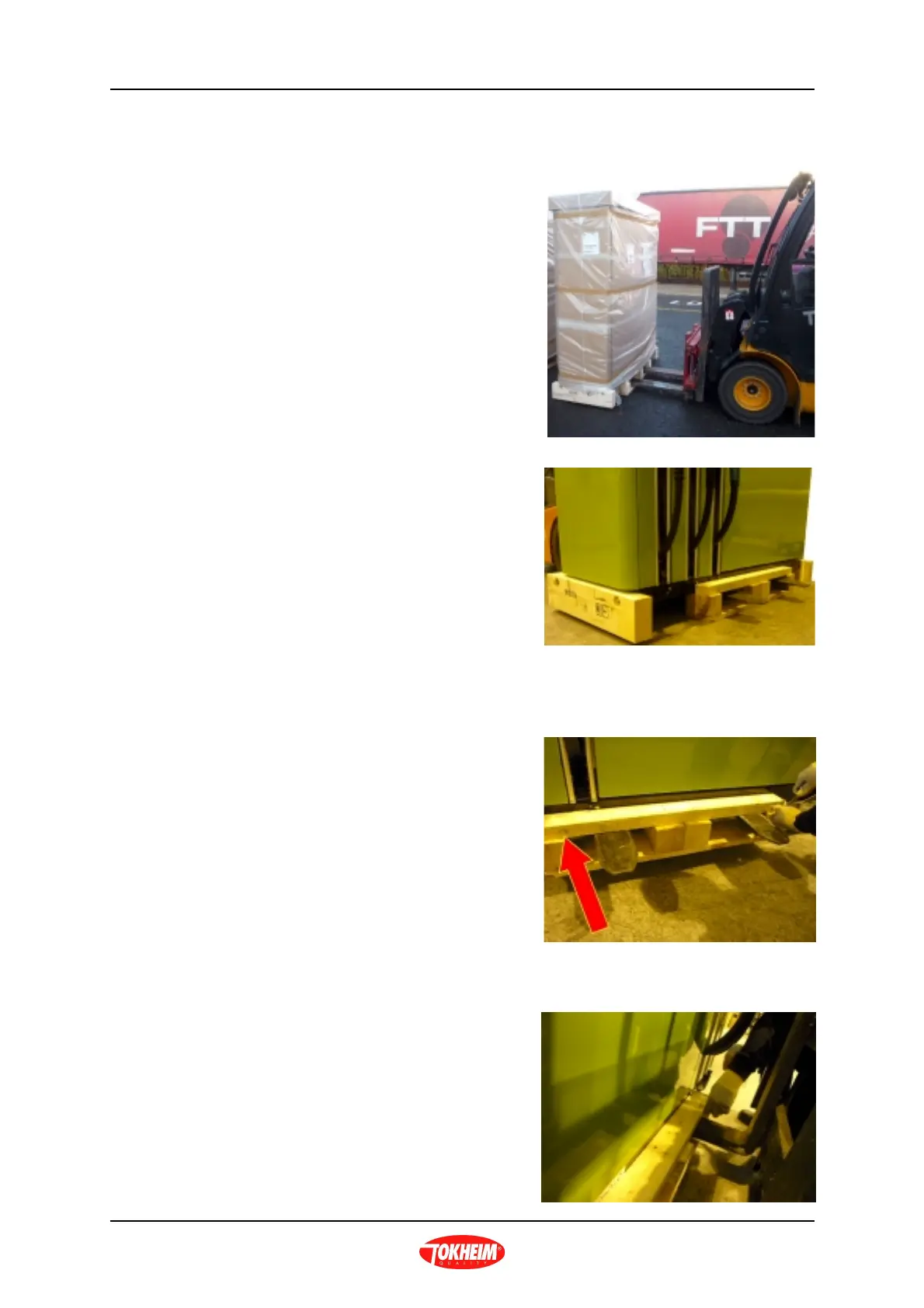

1) Unload the dispenser from the
transport truck and place it on even
ground. Remove the forklift truck and
remove the transport packaging.
2) Re-position the forklift into the
wooden transport pallet, raise and
move the dispenser close to its
forecourt position.
3) Lower the dispenser to about 20mm
off the ground. Use a 13mm spanner
or socket to loosen and remove the
two bolts holding the centre pallet
section to the driptray on the front of
the dispenser and remove it.
4) Carefully loosen and remove the
13mm bolts from the centre pallet
at the rear of the dispenser, then slide
the centre pallet section, still located
on the forklift forks, away from the
driptray. Lower the dispenser onto
the ground resting it on the two
wooden end blocks and remove the
forklift and the centre pallet section.
5.4.4 DISPENSER WITH LIFTING SLOTS AND ON WOODEN TRANSIT
PALLET
