4.9 Access the Junction Box Connections
The following instructions detail the procedure to be followed
to allow safe access to the junction box connections.
1) Follow the instructions given in section 4.6 to remove the
hydraulic door on side B of the dispenser.
2) Locate the junction box on side B of the dispenser.

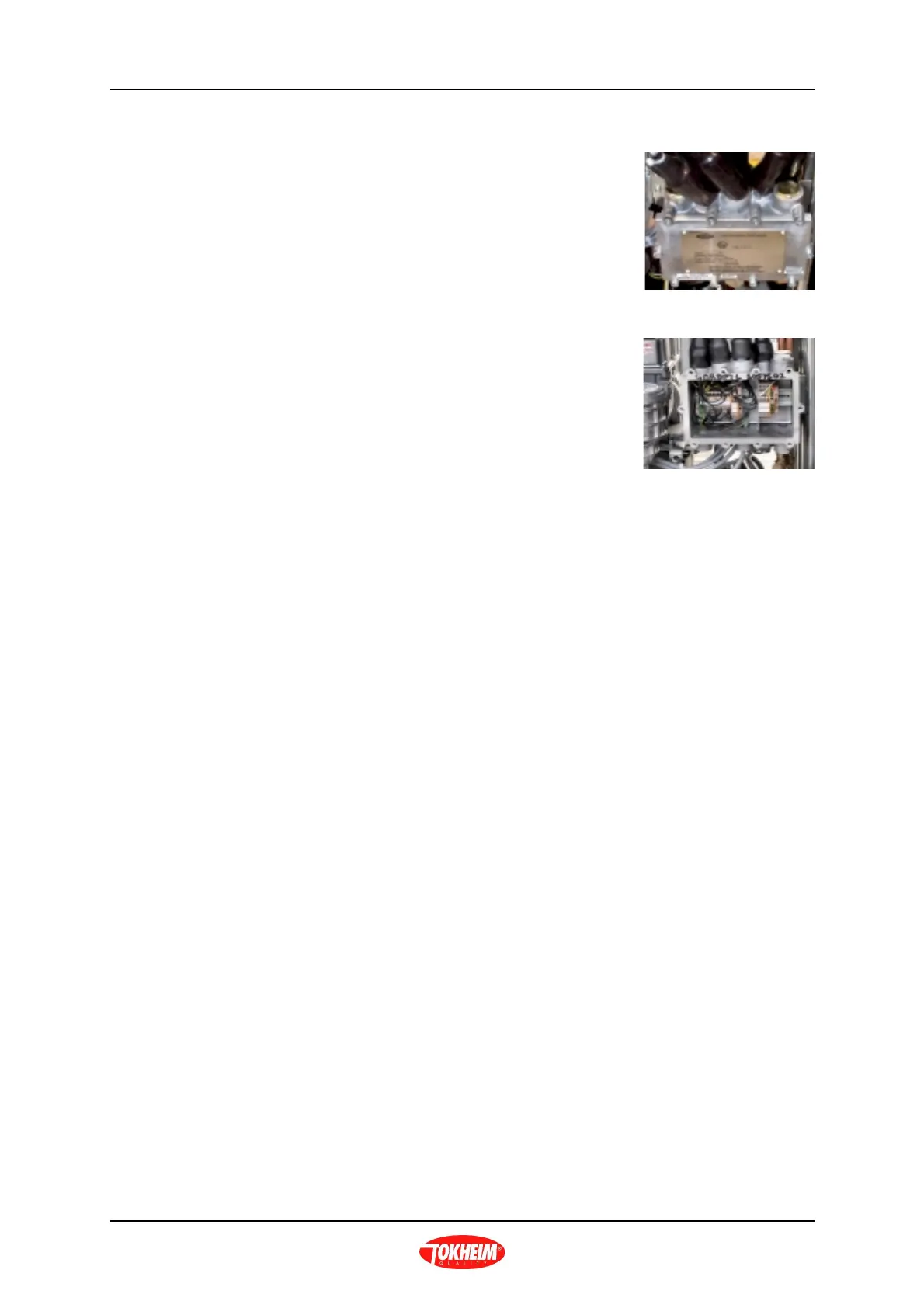

3) Using a 6mm allen key, loosen and remove the ten bolts on the
junction box cover. Remove the junction box cover completely
and place in a safe position.
4) Refer to the wiring diagrams in section 5.
5) To re-fit the junction box cover, follow the instructions in
reverse.
