Page 2-20 Document Ref 942583-001 Rev 8
Site Preparation Quantium 510 Installation Manual
2.3 Hydraulic Connections
The suction pipes are accessible from Side B of the Dispenser. See section 5.2 for the
identification of side B. Different types of hydraulic connection are available depending
on the dispenser configuration.
1.5" male thread
on flexi
max.
max.
Note :
The rubber cover (manchet) for
the driptray must be lower than
the pipe joints (& thread adaptors)
98 98
58
58
1.5" Pipe with female
thread
(incl. plastic pipes)
1.5" Pipe with
male thread
2" Pipe with
male thread
2" Pipe
with female thread
70
Island Level
Driptray height
1.5" female thread on
flexi
If the inlet riser pipe has a female connection, an adaptor must be
used (1.5” or 2”).
If an adaptor is used, the dimensions shown will need to be reduced
(maximum 36mm).
Tokheim requires that rigid pipes must be used for all SAT lines.
Never slacken or remove fixing brackets holding pipework to the dispenser.
Ensure that no strain is placed on pipework during installation.
NOTE :-
2.3.1 SUCTION & SUBMERGED CONNECTIONS

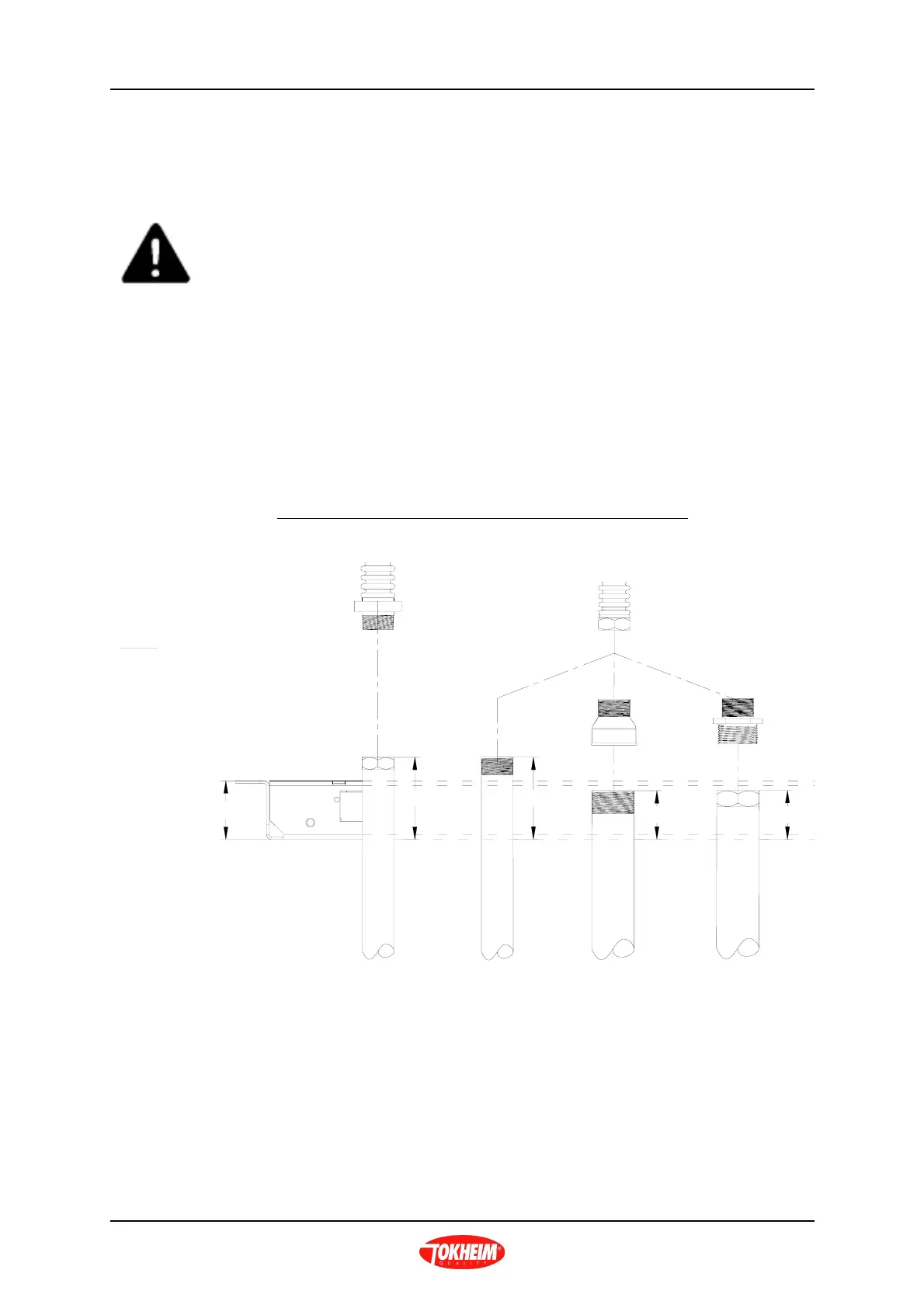

Standard Suction Connection (with & without Filterbox)
To Next Page
