Document Ref 942583-001 Rev 8 Page 2-19
Quantium 510 Installation Manual Site Preparation
with continuous
filling button
Diesel
130

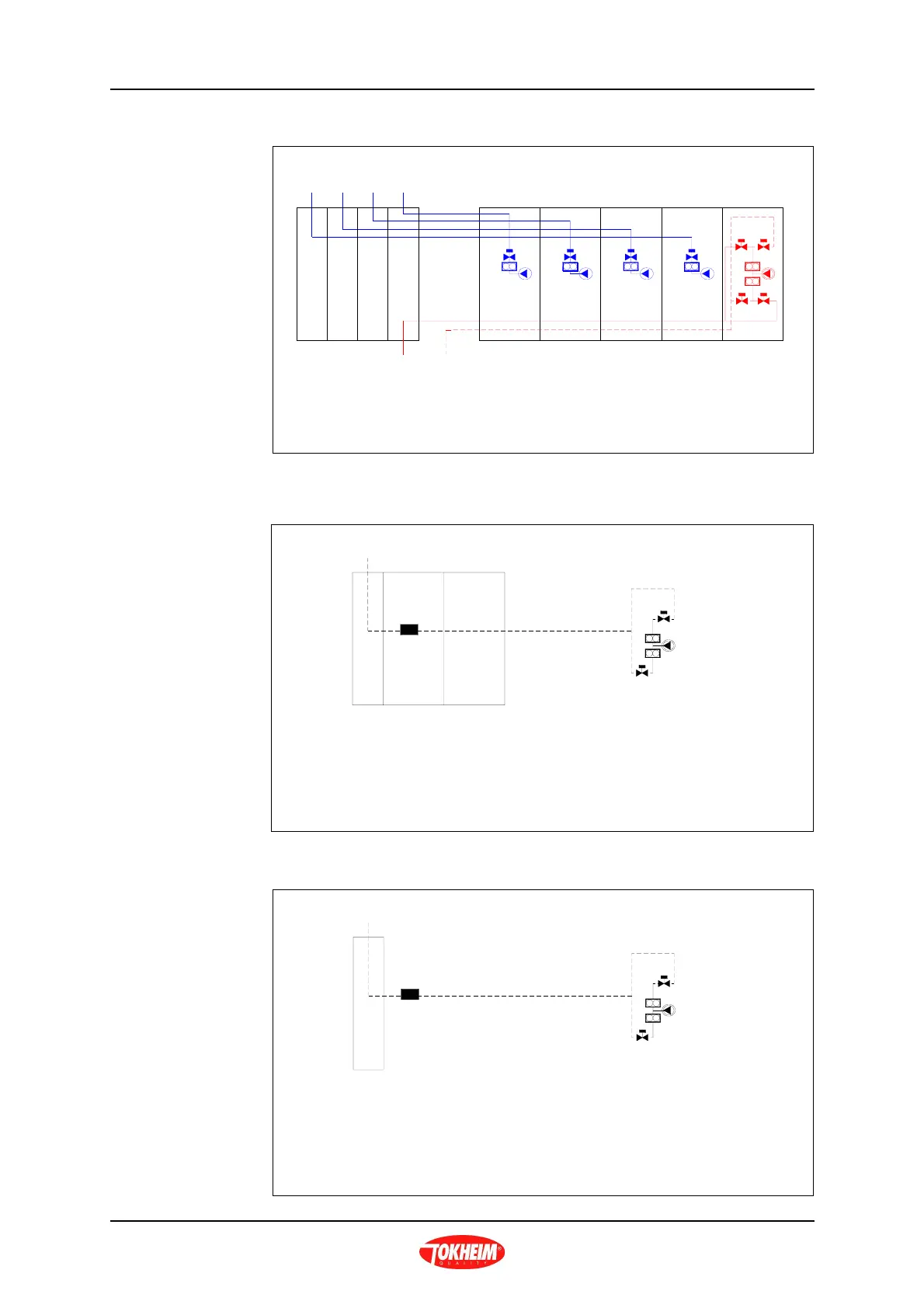

Example shown is B sided (left) Satellite dispenser connected to a Master dispenser
(TQP-HS or Submerge) with an A sided (right) Satellite connection. A sided (right) satellite
dispenser connected to a Master dispenser (TQP-HS or Submerge) with a B sided (left)
Satellite connection is also available. Double sided does not exist.
All control valves are in the Master dispenser. The display head is always present and
needs connection inside Master.
Satellite Feed
with continuous
filling button
Satellite connections in
remote Diesel Master
Dispenser
B side (left)
Blind side
A side (right)
Model MSAT
with continuous
filling button
Diesel
130
Satellite Feed
with continuous
filling button
Satellite connections in
remote Diesel Master
Dispenser
B side (left)
Blind side
A side (right)
Example shown is B sided (left) mini-satellite dispenser is connected to a master dispenser
(TQP-HS or Submerge) with an A sided (right) satellite connection. A sided (right)
mini-satellite dispenser connected to a master dispenser (TQP-HS or Submerge) with a B
sided (left) satellite connection is possible with the same cassette turned 180.
All control valves are in the Master dispenser.
Display is not available.
Model SAT
Model SVHSM 5-5
Prod
1
40
Prod
2
40
Prod
3
40
Diesel2
40
130
Diesel 1
Diesel 2 Prod 3Prod 1 Prod 2
Diesel 1
B side (left)
A side (right)
1.5kW
1 x TQP-HS and 4 x TQP-RS or 5 x submerge.
The valve is needed for Preset or in any case of submerge.
Master to feed MSAT only.
Example shown is VHS on A side (right), B side (left) is also available.
Satellite Feed with continuous
filling button (optional)
