5.5.6 NEW SUBMERGED INSTALLATION - MANUFACTURED AFTER
JANUARY 2015
Depending on the dispenser an additional plate at the end of the hydraulic cabinet
to balance the dispenser during installation may be required. This is fitted in
production on specific configurations only, it is left in place once the dispenser is
installed.

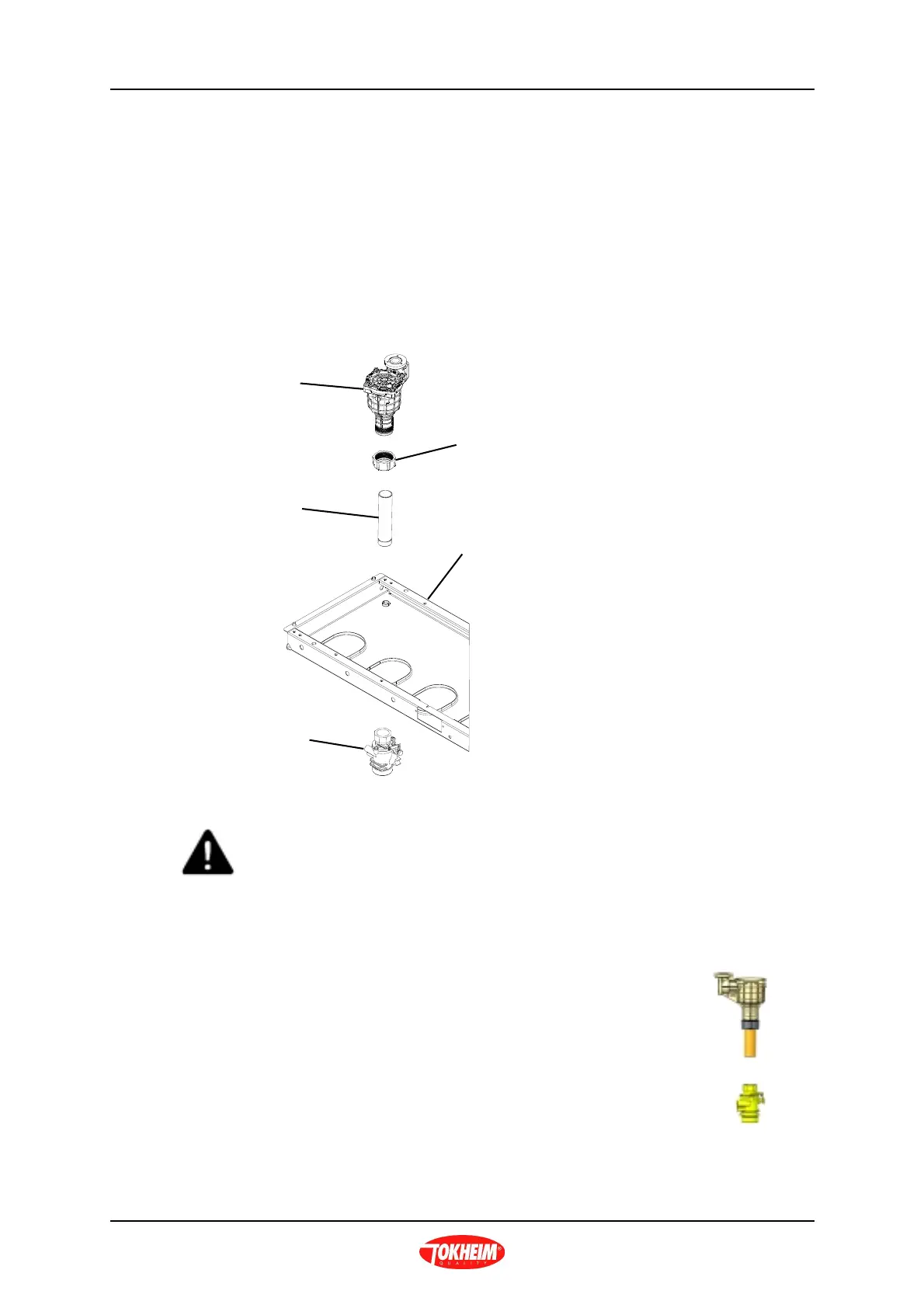

Description of Parts
1) Ensure that the nefit pipe is fully inserted inside the filter pot.
Submerged
Filter
Assembly
Nefit Nut
Nefit Pipe
Driptray
Shear
Valve
WARNING : BELOW INSTALLATION PROCEDURE MUST BE
STRICTLY FOLLOWED WITH THE NEW SUBMERGED.
To Next Page
