4.8.2 STANDARD HEAD & TQC - VGA MEDIA HEAD
Follow instructions in 4.7.2 to access the calculator head and section 4.8.1 to
open the DIT or remove the blind DIT door.

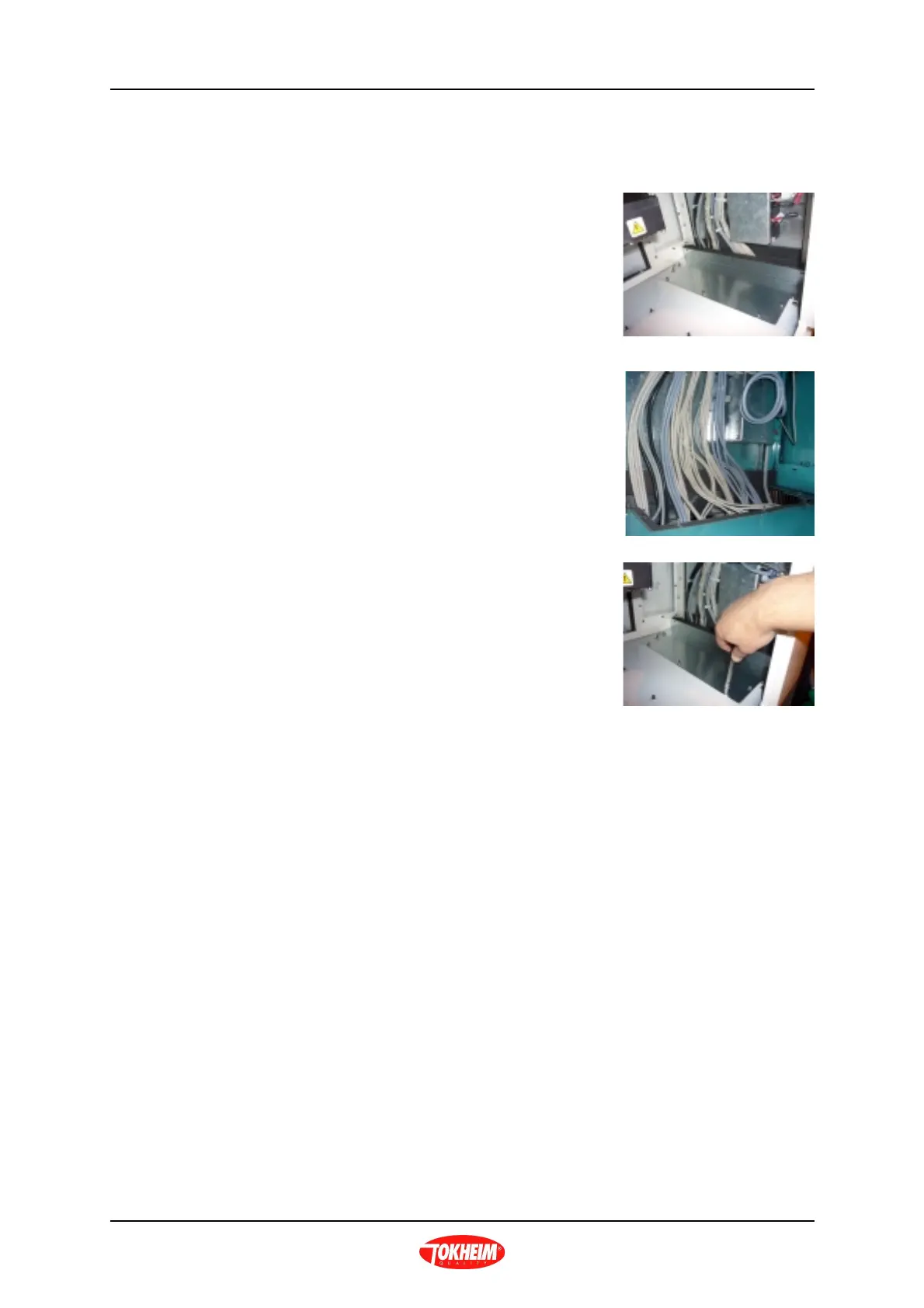

1) In the calculator head, use a 7mm nut runner to
loosen and remove the small nuts securing the
cable retaining plate to the inside of the calc box.
2) Remove the cable retaining plate completely from
the dispenser and place in a safe position.
3) To re-fit, replace the cable retaining plate and
secure to the inside of the calc box by refitting
the nuts.
4) Replace the DIT/blind DIT door according to the
instructions in section 4.8.1.
