Tokheim Quantium 510 - Special Dispenser Configurations

Page 5-42 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual
Additional
Junction Box 1
Additional
Junction Box 2
***Comms***
***Comms***
Junction Box Bracket
Identification Stickers
Usual Comms location
Usual DIT Comms location
Mains Section
Main Junction Box
(M2000/M2000T)
Comms
Section
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8

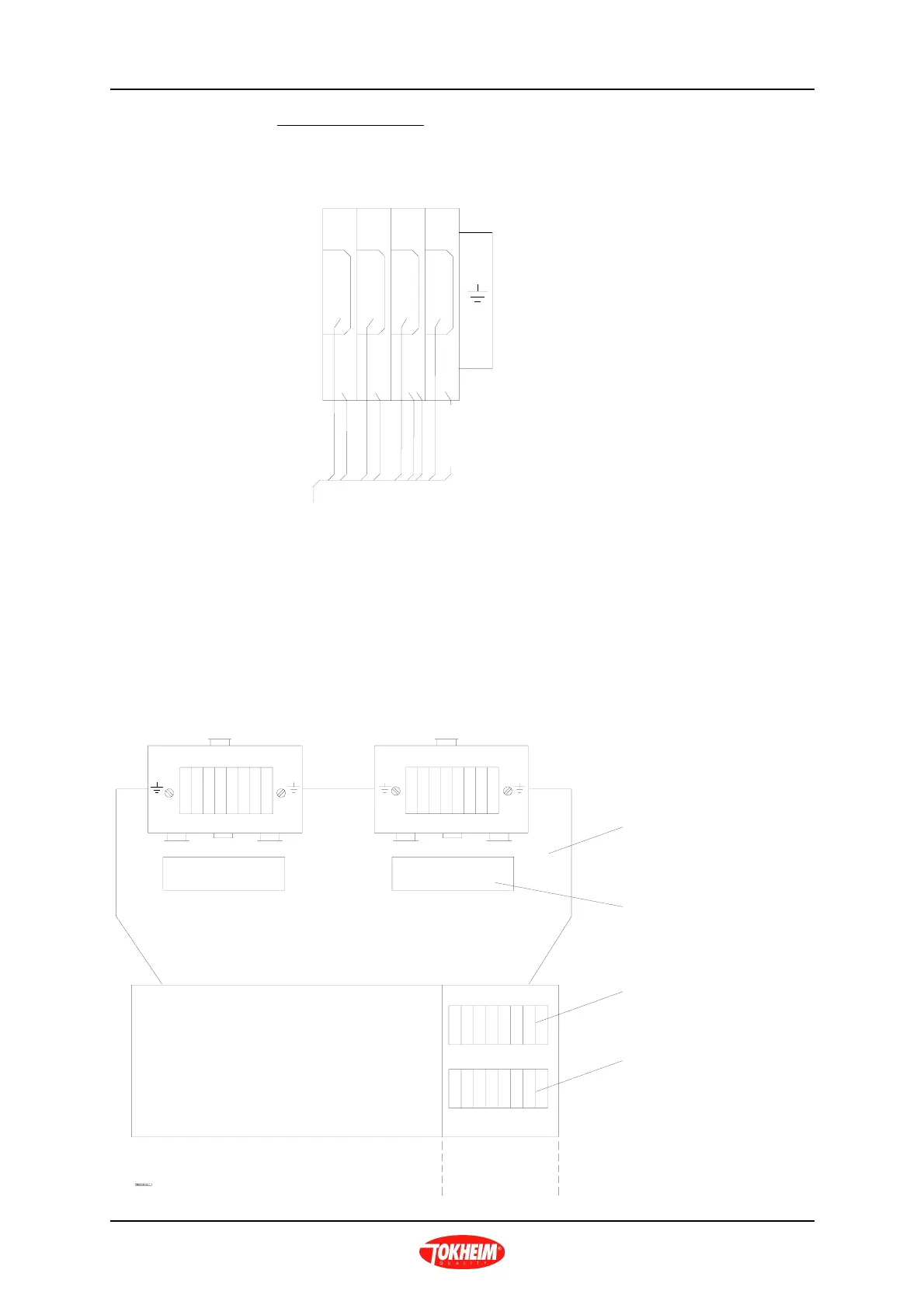

5.6.3 SPECIAL DISPENSER CONFIGURATIONS
With certain combinations of options, additional junction boxes may be required.
X2
X2 = Connection Strip
mounted in Junction Box
mains.
Coding signals on X2
are calculator signals.
RB
RA
TB
TA
1 2 3 4
5 6 7 8
GND
EPSI INTERFACE
screen
screen
screen
screen
8 core
screened cable
EPSI INTERFACE
