Page 5-44 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual

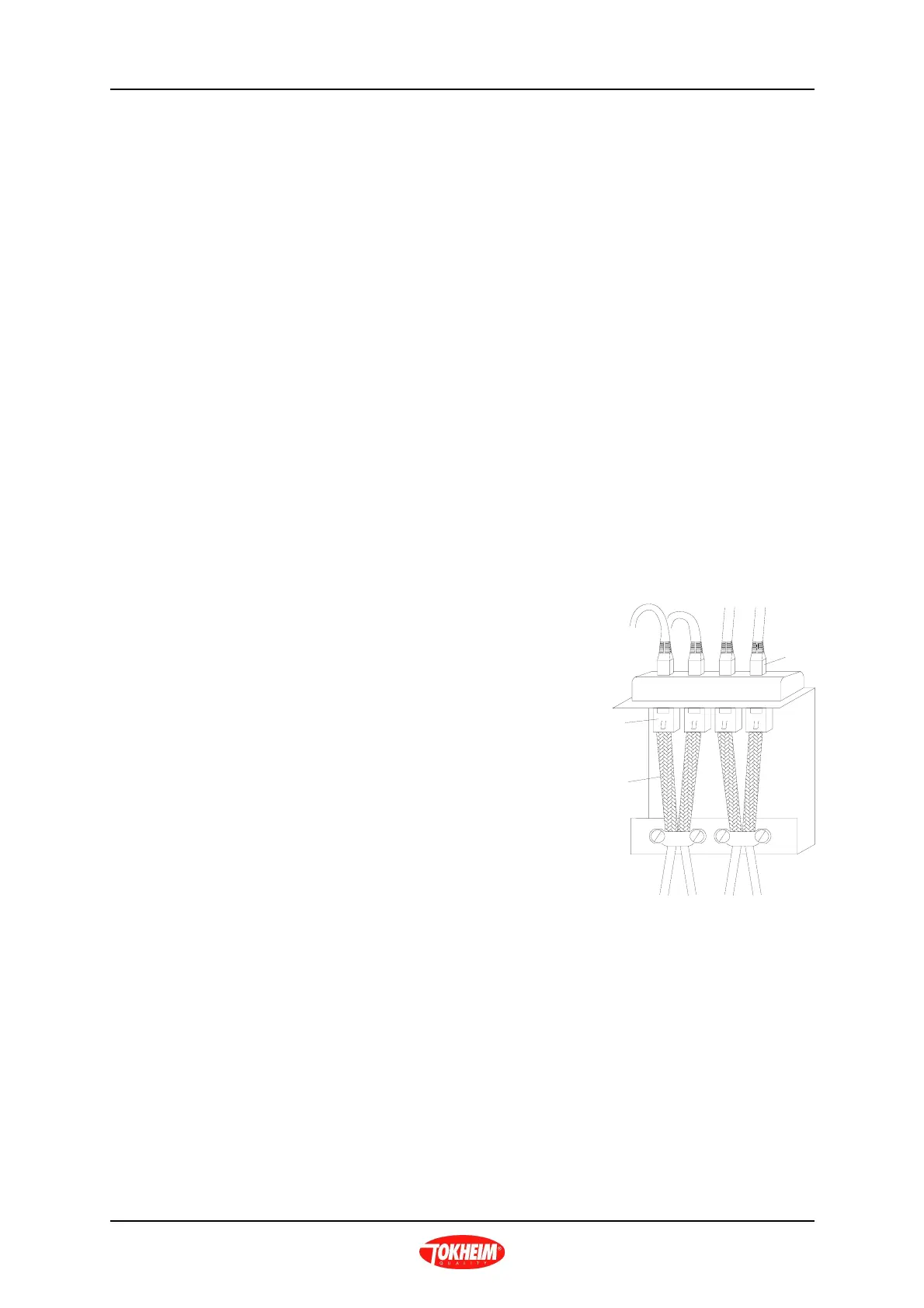

Crypto side A
2x2x24 AWG cable
Crypto side B
Vidium side A
4x2x24 AWG cable
Vidium side B
Vidium cables up to CAT5
receiver in calc head
Crypto VGA
cables down to
Crypto VGA
CAT5 cable
shielded
>10cm
RJ45 socket
RJ45 plug
5.6.4 MEDIA HEAD CONFIGURATION
Refer to separate Technical Manuals for Crypto VGA and Vidium as required.
Note : The information in this section relates to Tokheim’s recommended
installation but differences may exist in the standards relating to installation
in different countries and local regions, in which case the local and/or
national standards must be employed.
Prior to the Crypto VGA and/or Vidium unit being connected, the appropriate
video and audio source(s) must be made available within the kiosk. The
communication cables from the kiosk typically consist of one Cat 5 ethernet
cable per dispenser for Crypto VGA and one Cat 5 ethernet cable per dispenser
for Vidium (Note : “event-driven” Vidium would require one Cat 5 cable
per side). These cables should be routed through the dispenser using the
designated glands.
Routing of all communication cables should be completed prior to commencing
the unit installation.
CRYPTO VGA
Tokheim recommends the use of an
oil resistant certified PUR Cat 5
ethernet installation cable terminated
with an RJ45 connector and cable
904094-001 to connect to the Crypto
VGA processor.
VIDIUM MULTIMEDIA
Tokheim recommends the use of an
oil resistant certified PUR Cat 5
ethernet installation cable terminated
with an RJ45 connector and cable
904094-002 to connect to the Vidium
Cat 5 Receiver.
TQC-VGA MULTIMEDIA
Tokheim recommends the use of an
oil resistant certified PUR Cat 5
ethernet installation cable terminated
with an RJ45 connector and cable
904094-002 to connect to the Vidium
Cat 5 Receiver.
To Next Page
