Page 5-20 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual

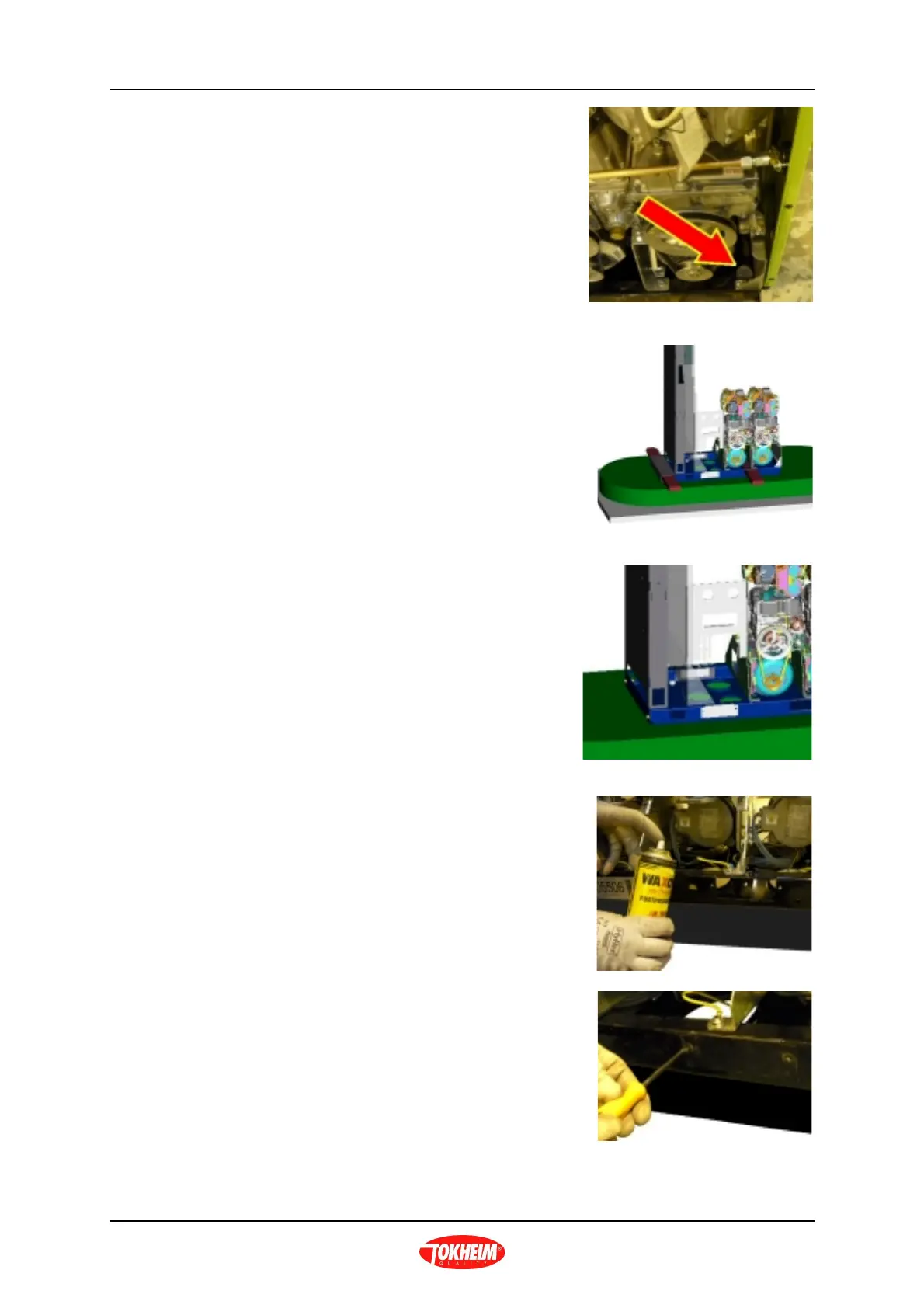

9) Lower the dispenser slowly onto the cradle
and use the 2 mounting holes closest to the
hydraulic end as a first locating point.
Follow the instructions in section 5.4.6 to
secure the dispenser using all 4 mounting
holes.
10) With the dispenser now secure, remove the
retaining ratchet straps. Ensure that the area
around the dispenser is clear of all personnel,
then slowly remove the forklift and move it
away from the dispenser.
11) Using a 19mm spanner or socket, remove
the lifting bracket, located on the hose
management side of the dispenser.
12) Using a rust preventative fluid, such as
Waxoyl professional 120-4 (Black), apply a
generous coating to the inside and outside of
the forklift slots.
13) Fit the supplied blanking plates to the two
slots in the driptray and apply a coat of rust
preventative around the 4 edges of each
blanking plate.
Dispenser placement is complete.
