Page 5-32 Document Ref 942583-001 Rev 8
Installation Quantium 510 Installation Manual

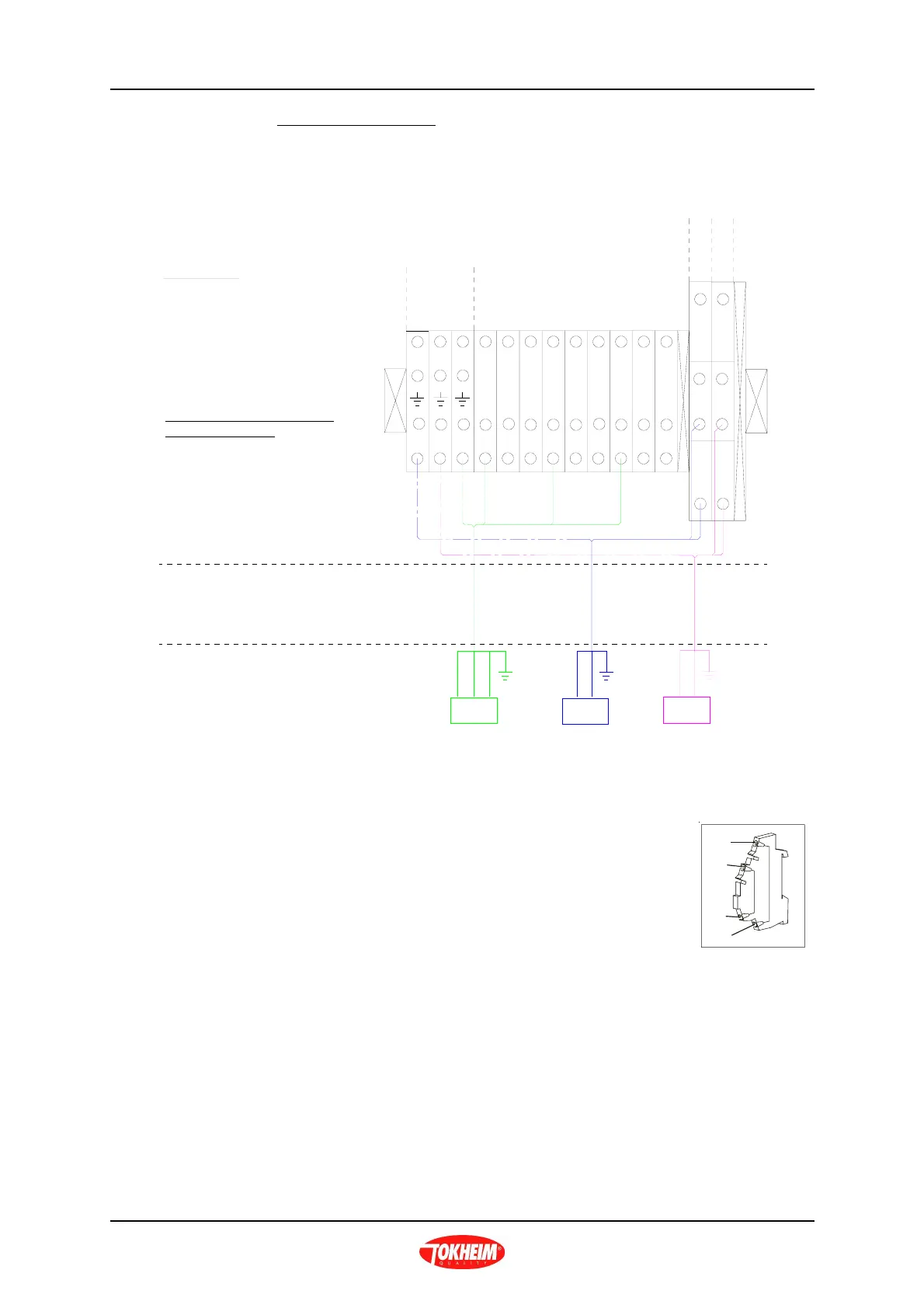

Three Phase Suction
L5
L5
N
N
MOTOR
MCB
MOTOR POWER
(4x1.5mm² cable)
Tokheim recommends the use of a
3 P+N Lockable Type 'D' MCB.
10 amp for 40/80 MPD dispensers
or single product 130 litre/min
dispensers.
16 amp for MPD 130 litre/min
dispensers.
Note 1 : Motor, Electronics &
Lighting Protection
* Note 1
CALC
MCB
CALC POWER
(3x1.5mm² cable)
The number of motors varies.
Always connect to the furthest left
terminal i.e. furthest left L1, furthest
left L2, furthest left L3. Jumper sizes
and positions vary for different
amounts of motors.
Motor Wiring
MOTORS
CALC
N N
TERMINALS INSIDE MAIN
JUNCTION BOX
FORECOURT WIRING
KIOSK EQUIPMENT
L4 L5
L1 L1 L1 L2 L2 L2 L3 L3 L3
PE
L4 L5
LIGHT/HEATER
LIGHT/
HEATER
MCB
* Note 2
* Note 3
Note 2 :
WWC 2A
TQC 6A
TQC-VGA 6A
Note 3 :
LIGHT 8A
HEATER 8A
LIGHT/HEATER
POWER
(3x1.5mm² cable)
To Next Page
