Document Ref 942583-001 Rev 8 Page 5-39
Quantium 510 Installation Manual Installation
SHIELD
1 - Tilt Detector 1
2 - Tilt Detector 2
3 - -
4 - (1st) Fire Detector 1
5 - (1st) Fire Detector 2
6 - -
7 - (2nd) Fire Detector 1
8 - (2nd) Fire Detector 2
Shock/
Tilt
Detection
Fire
Detection
(1)
Fire
Detection
(2)
1 2 3 4 5 6 7 8
TERMINALS INSIDE ADDITIONAL
BERNSTEIN JUNCTION BOX
KIOSK EQUIPMENT
FORECOURT WIRING
Tilt Detection and/or
Fire Detection
(6x0.5mm²)
902675-016 Rev 1

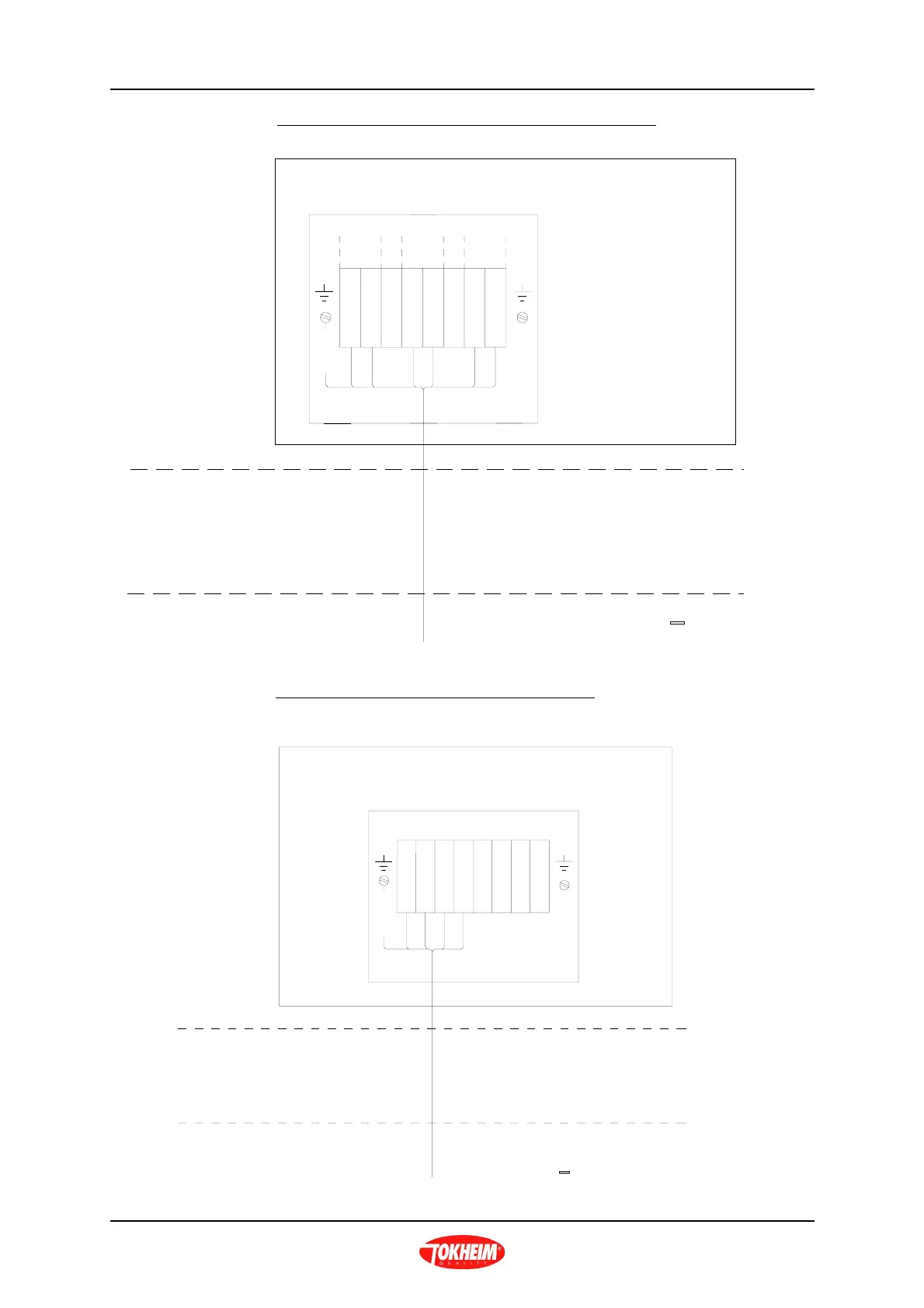

Fire & Tilt Detection (in additional Junction Box)
Audio Option (in additional Junction Box)
AUDIO INPUT
(4x0.5mm²
shielded/pyro cable)
SHIELD
1 2 3 4 5 6 7 8
L-AUDIO +
L-AUDIO -
R-AUDIO +
R-AUDIO -
KIOSK EQUIPMENT
FORECOURT WIRING
TERMINALS INSIDE ADDITIONAL
BERNSTEIN JUNCTION BOX
902675-0 15 Rev 1
To Next Page
