Tokheim Quantium 510 - Page 29

Document Ref 942583-001 Rev 8 Page 2-11
Quantium 510 Installation Manual Site Preparation
Prod
2
40
Prod
3
40
Diesel
1
80
Prod
1
40
Prod 1 Diesel 1Prod 2 Prod 3

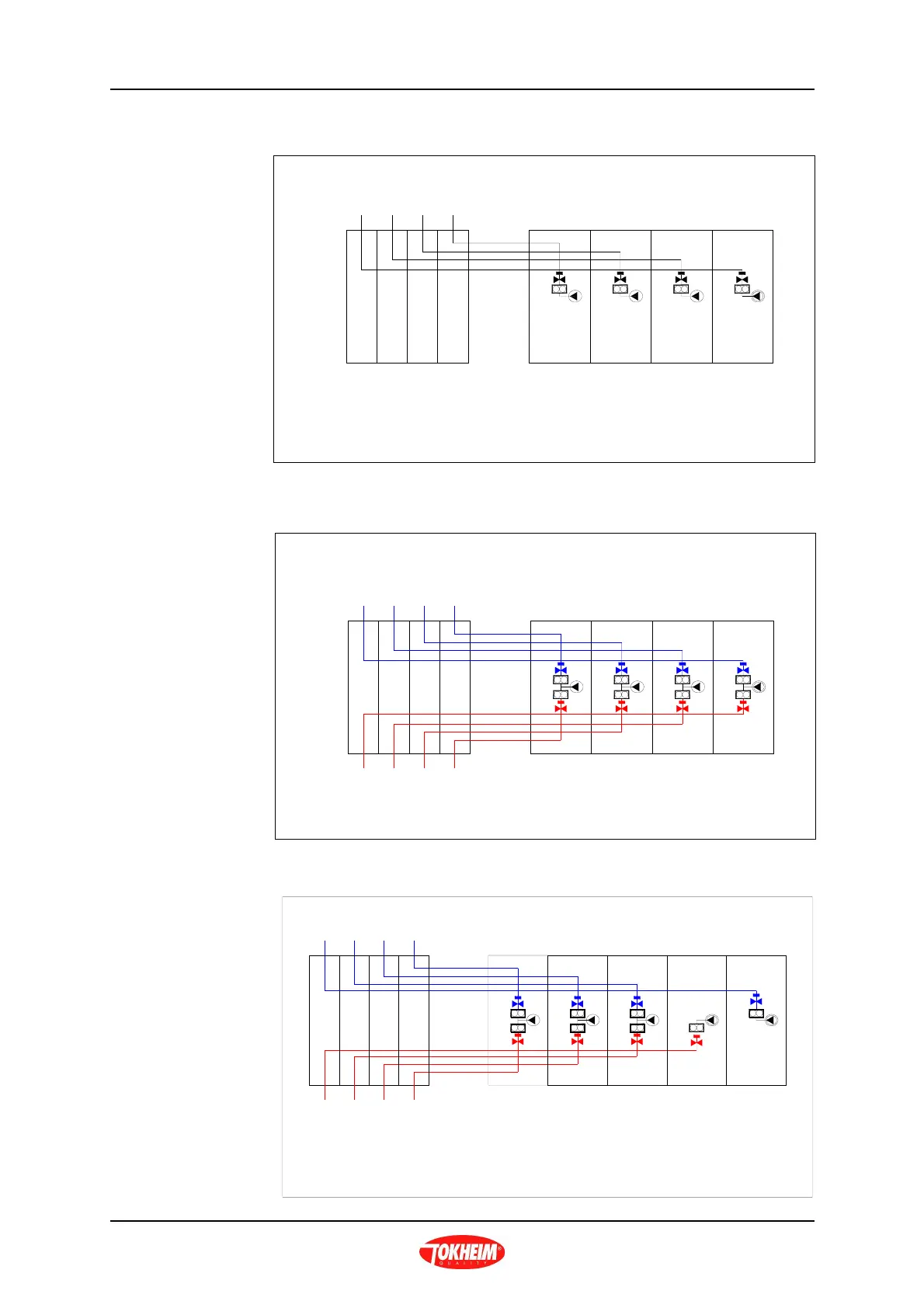

B side (left)
In case of NON-preset with TQP-RS, the valves are not needed.
The valve is needed for Preset or in any case of submerge.
Example shown is B sided (left), A sided (right) is also available.
HS in first column also available.
A side (right)
Blind side
1kW
Model HS 4-4
Prod
2
40
Prod
3
40
Diesel
1
80
Prod
1
40
40
Prod
2
40
Prod
3
80
Diesel
1
40
Prod
1
Prod 1 Diesel 1Prod 2 Prod 3
Prod 2Prod 1 Diesel 1Prod 3
B side (left)
A side (right)
1.5kW
HS in first column also available.
Model HS 4-8
Prod
2
40
Prod
3
40
Diesel
2
80
Prod
1
40
40
Prod
2
40
Prod
3
80
Diesel
1
40
Prod
1
Prod 1 Prod 2 Prod 3 Diesel 2
Prod 2Prod 1 Diesel 1Prod 3
B side (left)
A side (right)
2 x TQP-HS and 3 x TQP-RS or 5 x submerge. In case of NON-preset with TQP-RS or
TQP-HS, the valves for the last column are not needed. The valve is needed for Preset
or in any case of submerge. HS in first column is also available.
Model THS 5-8
