Document Ref 942583-001 Rev 8 Page 2-27
Quantium 510 Installation Manual Site Preparation

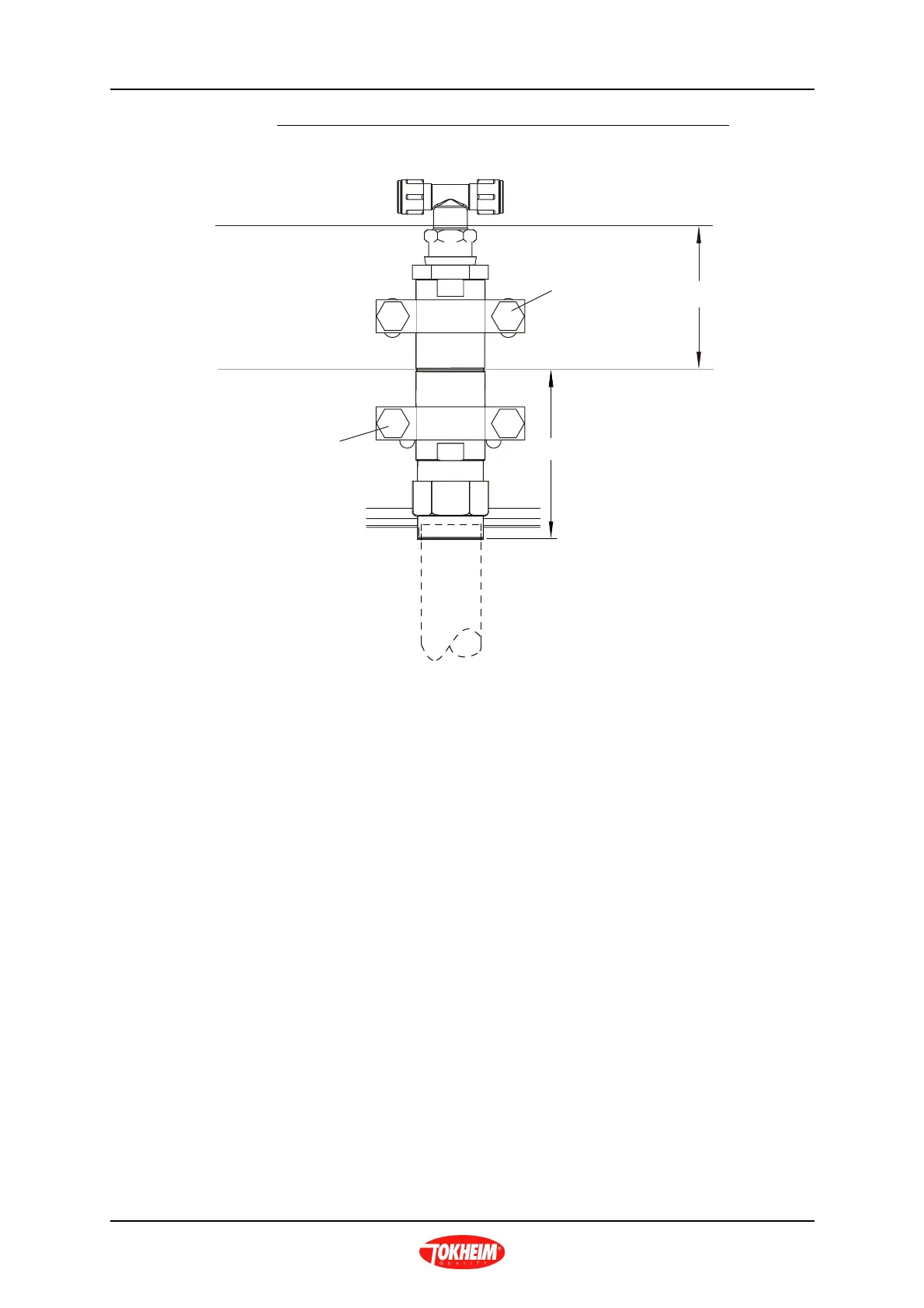

VR Connection with Risbridger Shear Valve (UK & EIRE) Kit
VR Riser Pipe with
male threadG1"
Underside of dispenser
Weak point level with
top of ground frame
Driptray
height
70
Terminate VR pipe
79.5mm below dispenser
fixed to
securing bracket
Clamp
fixed to
ground frame
Clamp
906069
Risbridger Shear Valve
IMPORTANT
Assembly below the shear poin
must be secured to the ground
frame (NOT dispenser frame)
97.5
NOTE : All threads must be
sealed using Loctite 577
To Next Page
