Page 2-30 Document Ref 942583-001 Rev 8
Site Preparation Quantium 510 Installation Manual

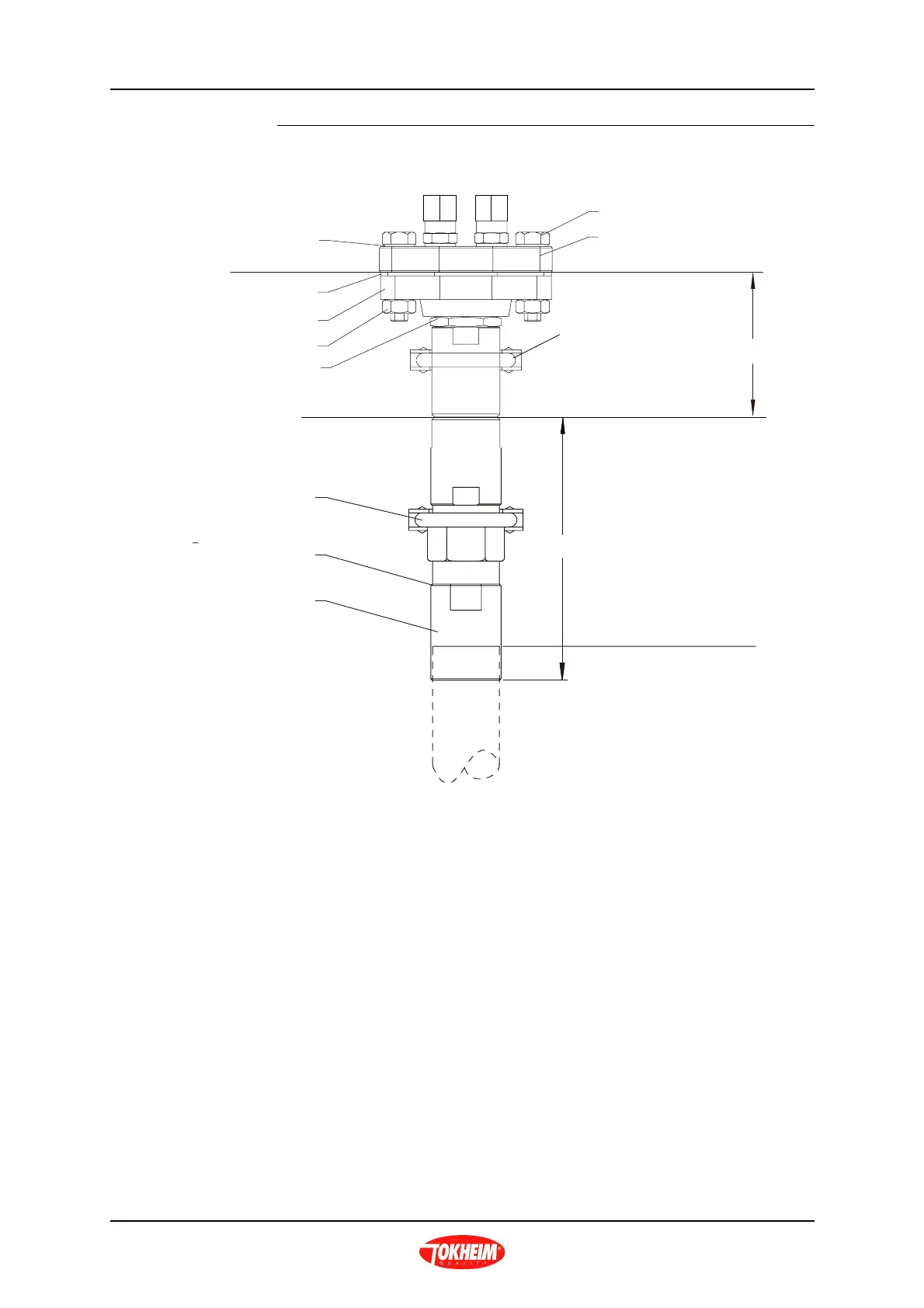

VR Connection with Risbridger Shear Valve & Flame Arrester for Ethanol
Kit 2 - Tokheim Part No 943143-002
Terminate VR pipe
154mm below dispenser
169.5
IMPORTANT
Assembly below the shear point
must be secured to the ground
frame (NOT dispenser frame)
NOTE : All threads must be
sealed using Loctite 577
900416
943050-001
903184
U Clamp
Flame Arrester
G1"- G
3
4
" Nipple
(Under Clamp)
M10x45 Bolt
Flange on Dispenser
VR Flexi
900015-022
901596
900758-003Insulation Sleeve
901320-001
900011-004
901772
901859
Flange 1" 78mm
M10 Nut
Nipple
Gasket
Underside of dispenser
Driptray
height
70
U Clamp 903184
fixed to ground frame
VR Riser Pipe with
male threadG1"
To Next Page
