Document Ref 942583-001 Rev 8 Page 5-5
Quantium 510 Installation Manual Installation

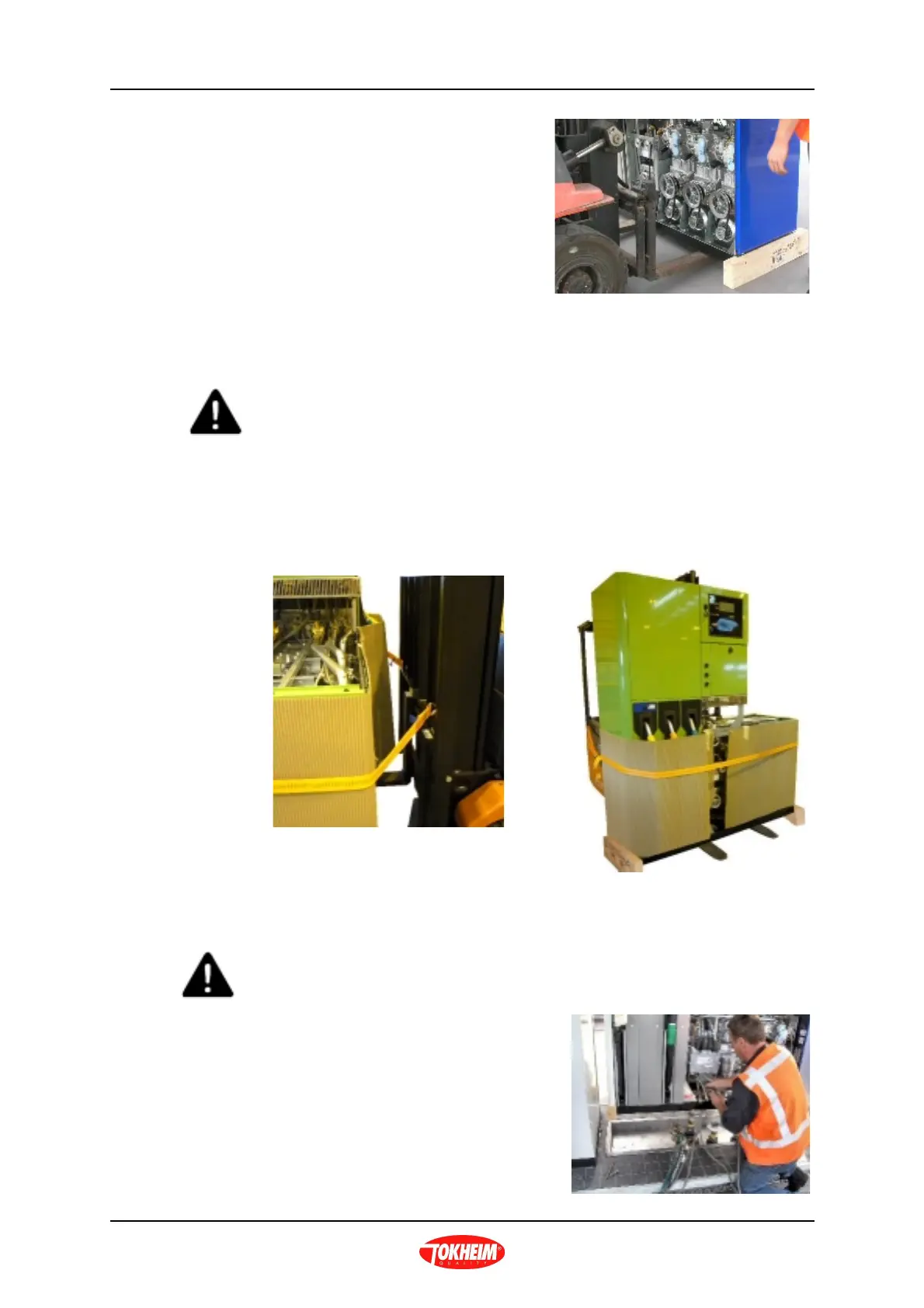

5) With the dispenser stable on the two
wooden end blocks, follow the
instructions in section 4.6 to access the
dispenser hydraulic area and remove
the hydraulic doors from both sides of
the dispenser.
Position the forks of a suitable forklift under the dispenser driptray.
6) Protect the dispenser panels with cardboard or other suitable material, then
strap the dispenser to the forklift using a ratchet strap or similar to ensure stability
and safety.
7) Move the dispenser close to its final position and lower it to the ground resting
on the two wooden end blocks.
8) Feed the cables up through the electrics
hole position in the driptray.
Note : Do not unstrap or remove the forklift.
Note : Do not raise the dispenser off the ground.
