Tomey AL-100 User Manual

3-43

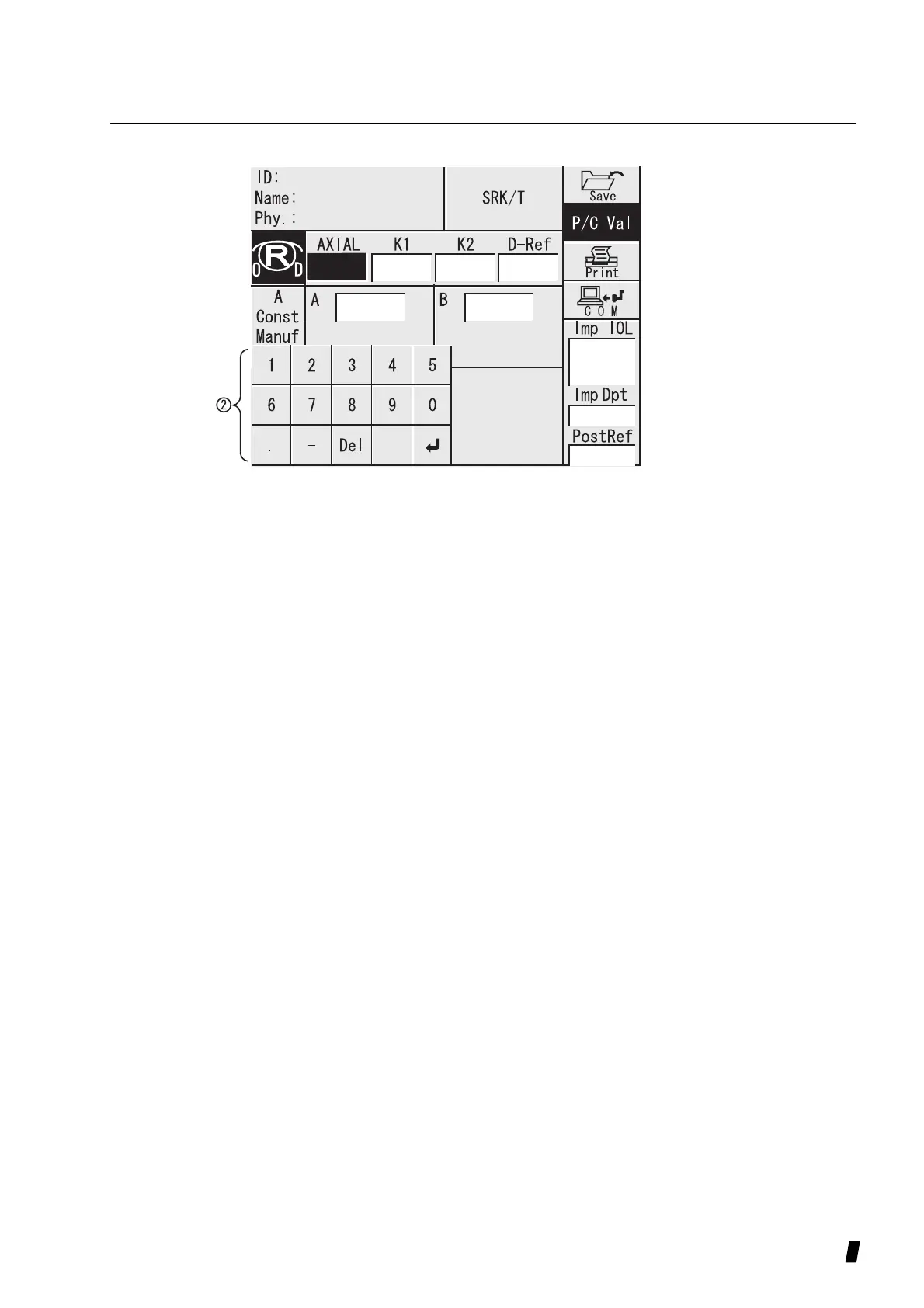

2) The selected databox will be reverse highlighted.(Fig 3)
<AXIAL> Axial length
<ACD> Anterier Chamber Depth
<K1 / K2>
Corneal Refractive Power / Corneal Raduis
<Post Ref> Postoperative refractive power
[Acceptable range] -30.0 ~ +10.0D
<Imp. dpt>
Refractive power of implanted IOL
[Acceptable range] -10.0 ~ +80.0D
<Aconst>
Applied IOL lens constant (Aconst)
When above values have already entered on (Fig 1) dis
play, those are not changable on P/C value calculation
screen.
3) Touch reverse highlighted key again to complete data
entry.
4) After all values have been entered, the instrument will
automatically display the calculation results.
5) Press IOL Button to return to the IOL calculation
window(Fig 1).
(Figure 3)
