Tomey AL-100 User Manual

3-47
3.5.2 Sample printout

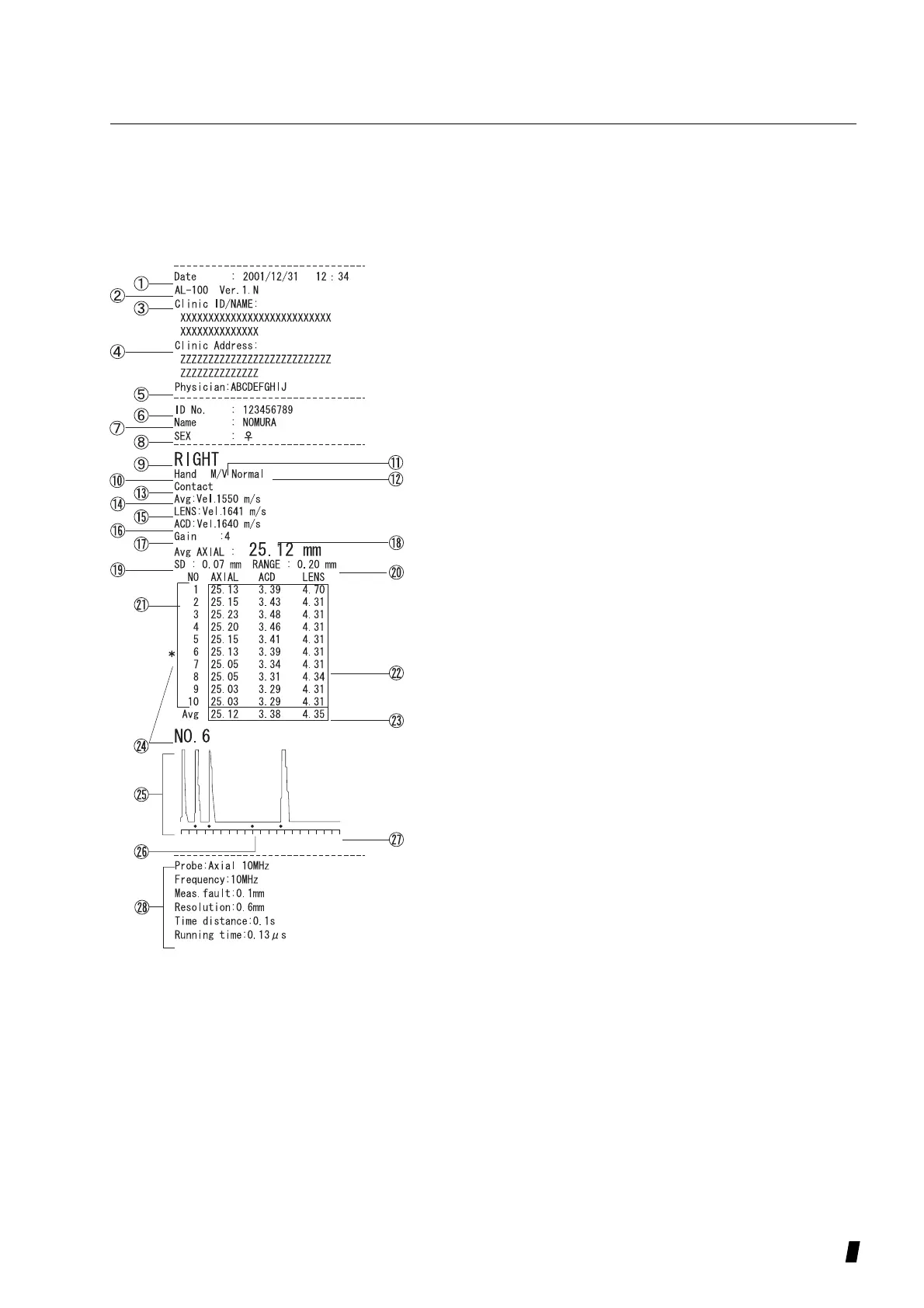

a) Sample biometry printout
Standard mode (with Extended Export)
(1) Time/Date
(2) Model name; version
(3) Clinic ID/NAME
(4) Clinic Address
(5) Physician’s name
(6) Patient ID number
(7) Patient name
(8) Patient’s sex
(9) Eye (Right/Left)
(10) Measurement mode
(11) Mean velocity / Sectional velocity
(12) Eye type
(13) Contact / Immersion
(14) Average axial length velocity
(15) Lens velocity
(16) ACD velocity
(17) Gain
(18) Average axial length
(19) Standard deviation of axial length data
(20) Difference between minimum and maximum axial
length
(21) Memory number
(22) Measurement data (axial length/ACD/lens thickness)
(23) Mean measurement data values
(24) Memory number of the displayed waveform
(25) Waveform
(26) Selection cursor for retina waveform
(27) Scale (2 mm/div)
(28) Technical Information

Tomey AL-100 Specifications

General

Brand	Tomey
Model	AL-100
Category	Measuring Instruments
Language	English
