3-48

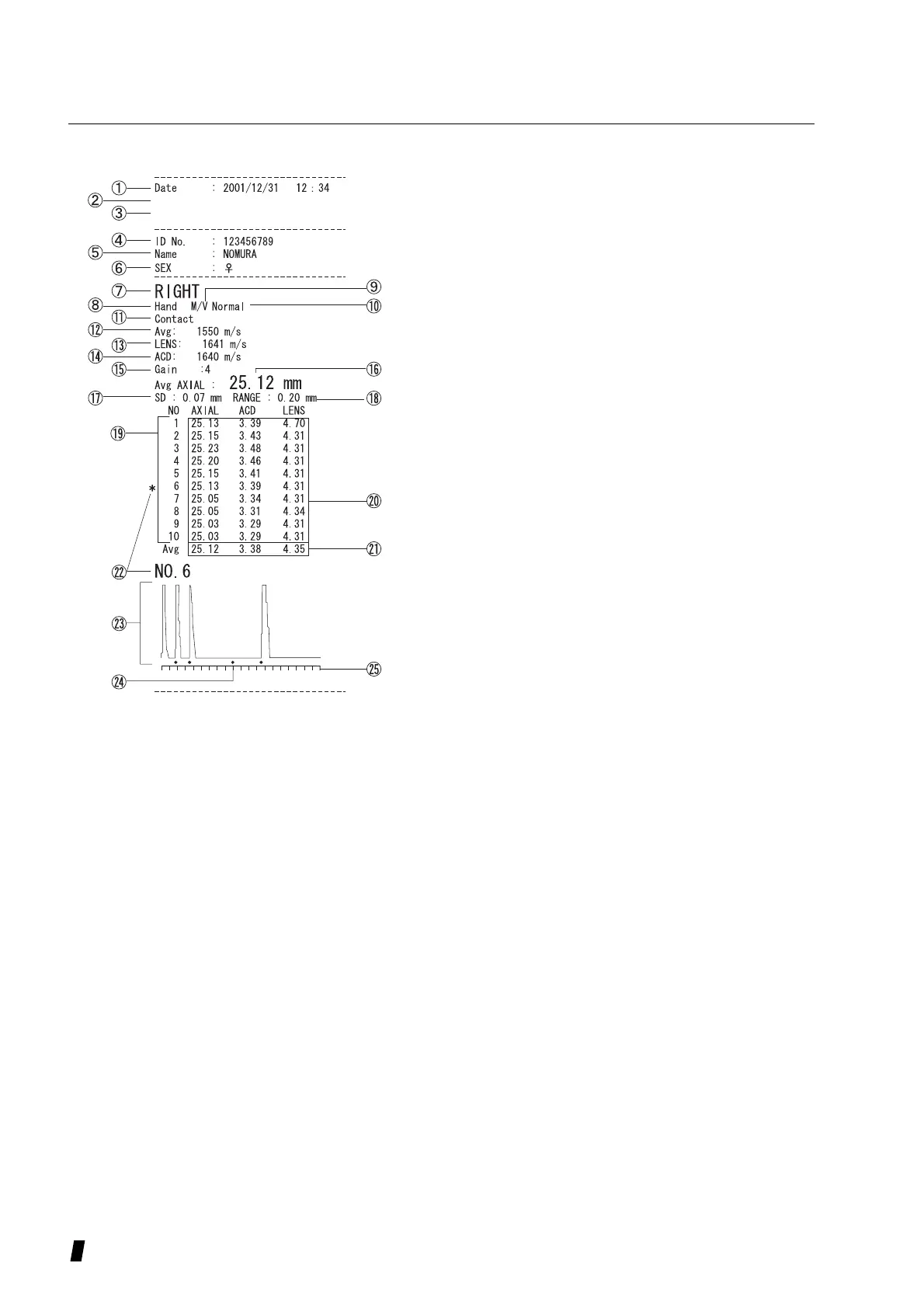

Standard mode (without Extended Export)
(1) Time/Date
(2) Model name; version
(3) Name of physician
(4) ID number
(5) Name of patient
(6) Sex of patient
(7) Eye to be measured
(8) Measurement mode
(9) Mean velocity / Sectional velocity
(10) Eye type
(11) Contact / Immersion
(12) Average axial length velocity
(13) Lens velocity
(14) ACD velocity
(15) Gain
(16) Average axial length
(17) Standard deviation of axial length data
(18) Difference between minimum and maximum axial
length
(19) Memory number
(20) Measurement data (axial length/ACD/lens thickness)
(21) Mean measurement data values
(22) Memory number of the displayed waveform
(23) Waveform
(24) Selection cursor for retina waveform
(25) Scale (2 mm/div)
#.8GT0
2J[UKEKCP#$%&'()*+,
8GN
8GN
8GN
