3-71
(Figure 1)
3.7
Utilities
1)

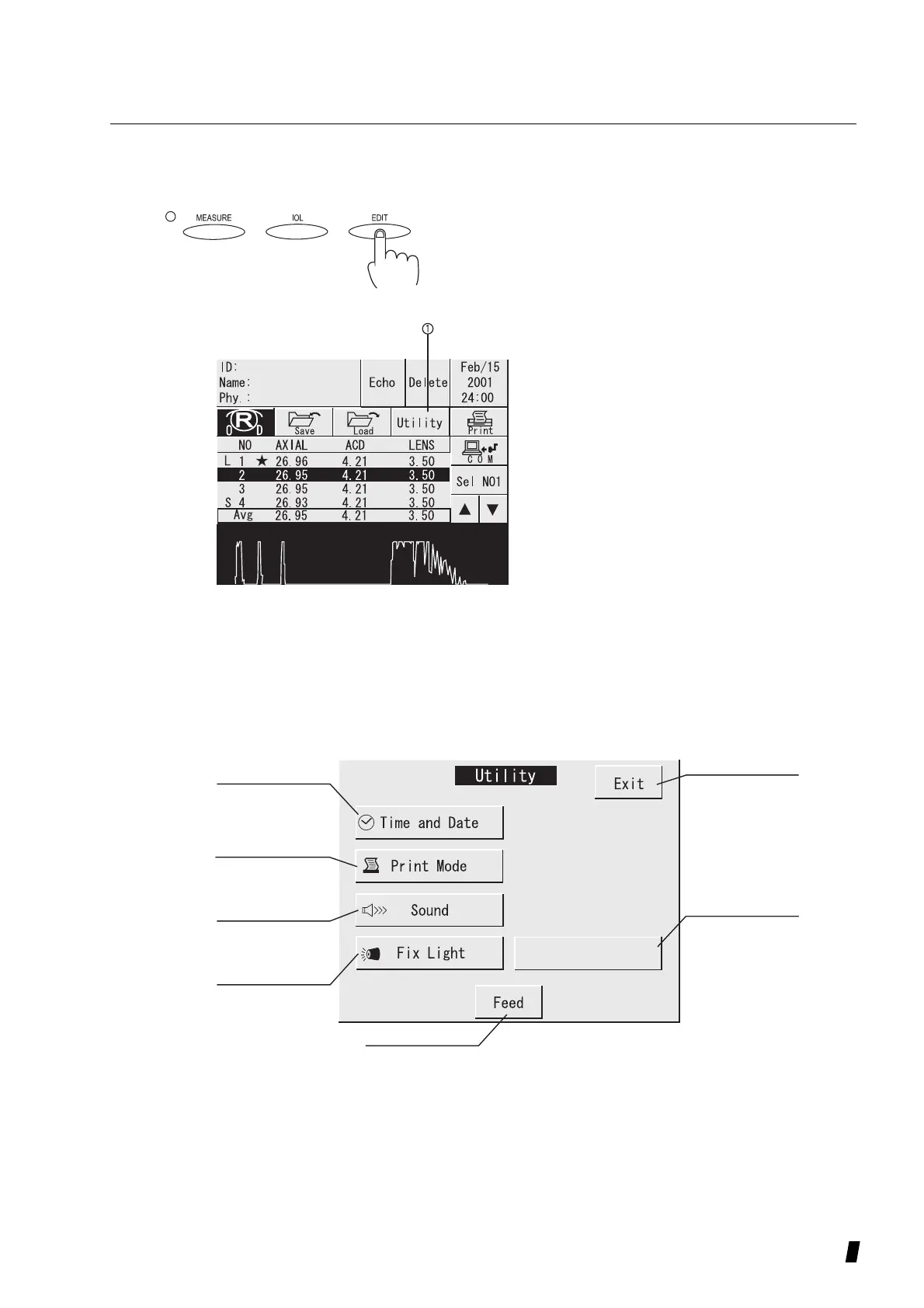

Press EDIT button to show EDIT window.
2)
Touch Utility key(1) to show Utility window.(Fig 1)
'ZVGPFGF
'ZRQTV
Time and Date
Enter current date and
time.
Fix Light
ON/OFF LED on
Fixation light on the tip
of Biometry probe.
Feed
Adjust printer paper.
Extended Export
Opens the Extended
Export screen and
allows you to set
options for extended
export.
Print Mode
Select print mode.
Sound Set
Control sound.
Exit
Return to EDIT window.
3.7.1
Contents of utilities
