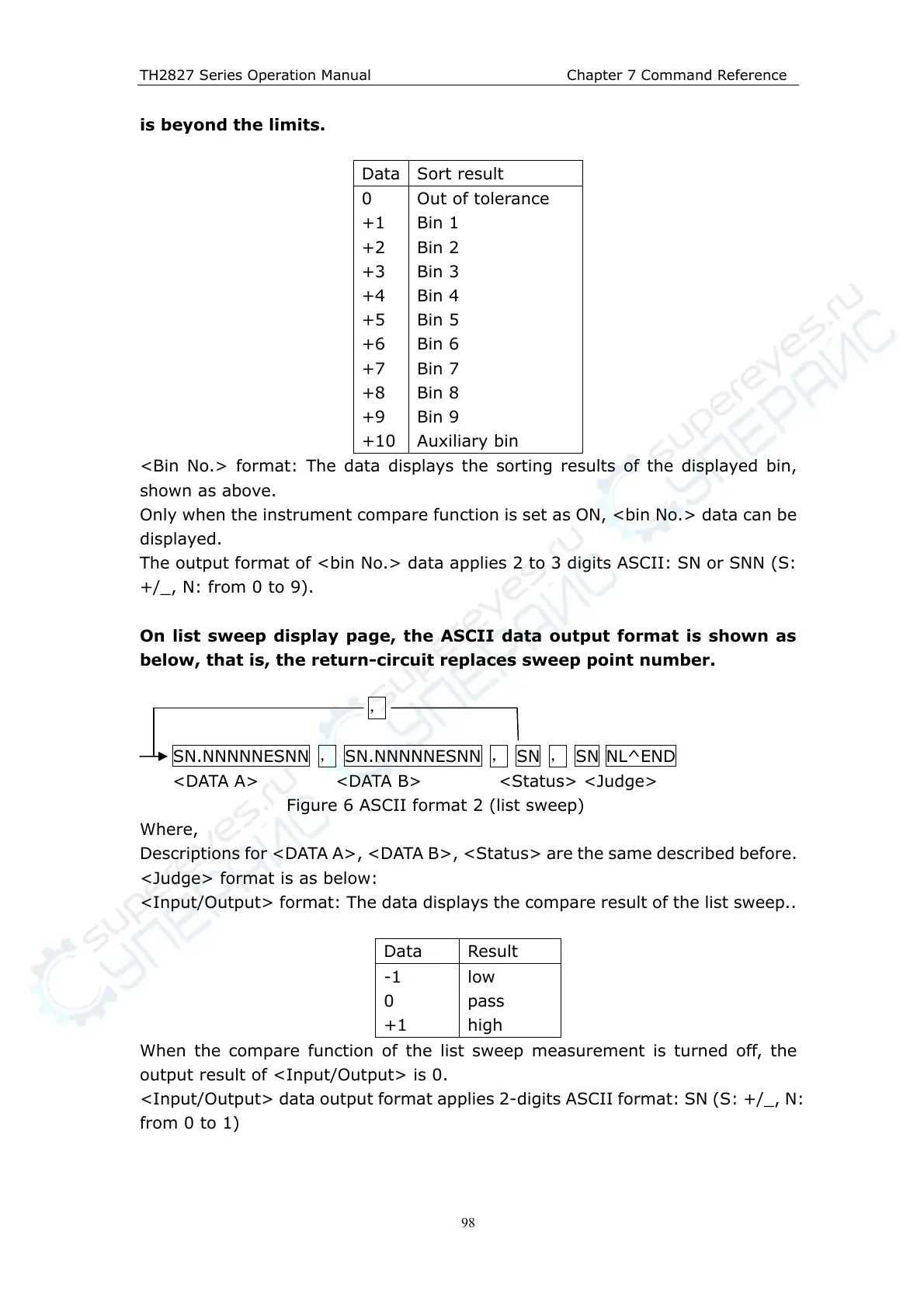

TH2827 Series Operation Manual Chapter 7 Command Reference
98
is beyond the limits.
Data
Sort result
0
+1
+2
+3
+4
+5
+6
+7
+8
+9
+10
Out of tolerance
Bin 1
Bin 2
Bin 3
Bin 4
Bin 5
Bin 6
Bin 7
Bin 8
Bin 9
Auxiliary bin
<Bin No.> format: The data displays the sorting results of the displayed bin,
shown as above.
Only when the instrument compare function is set as ON, <bin No.> data can be
displayed.
The output format of <bin No.> data applies 2 to 3 digits ASCII: SN or SNN (S:
+/_, N: from 0 to 9).
On list sweep display page, the ASCII data output format is shown as
below, that is, the return-circuit replaces sweep point number.
，
SN.NNNNNESNN ， SN.NNNNNESNN ， SN ， SN NL^END
<DATA A> <DATA B> <Status> <Judge>
Figure 6 ASCII format 2 (list sweep)
Where,
Descriptions for <DATA A>, <DATA B>, <Status> are the same described before.
<Judge> format is as below:
<Input/Output> format: The data displays the compare result of the list sweep..
Data Result
-1
0
+1
low
pass
high
When the compare function of the list sweep measurement is turned off, the
output result of <Input/Output> is 0.
<Input/Output> data output format applies 2-digits ASCII format: SN (S: +/_, N:
from 0 to 1)
