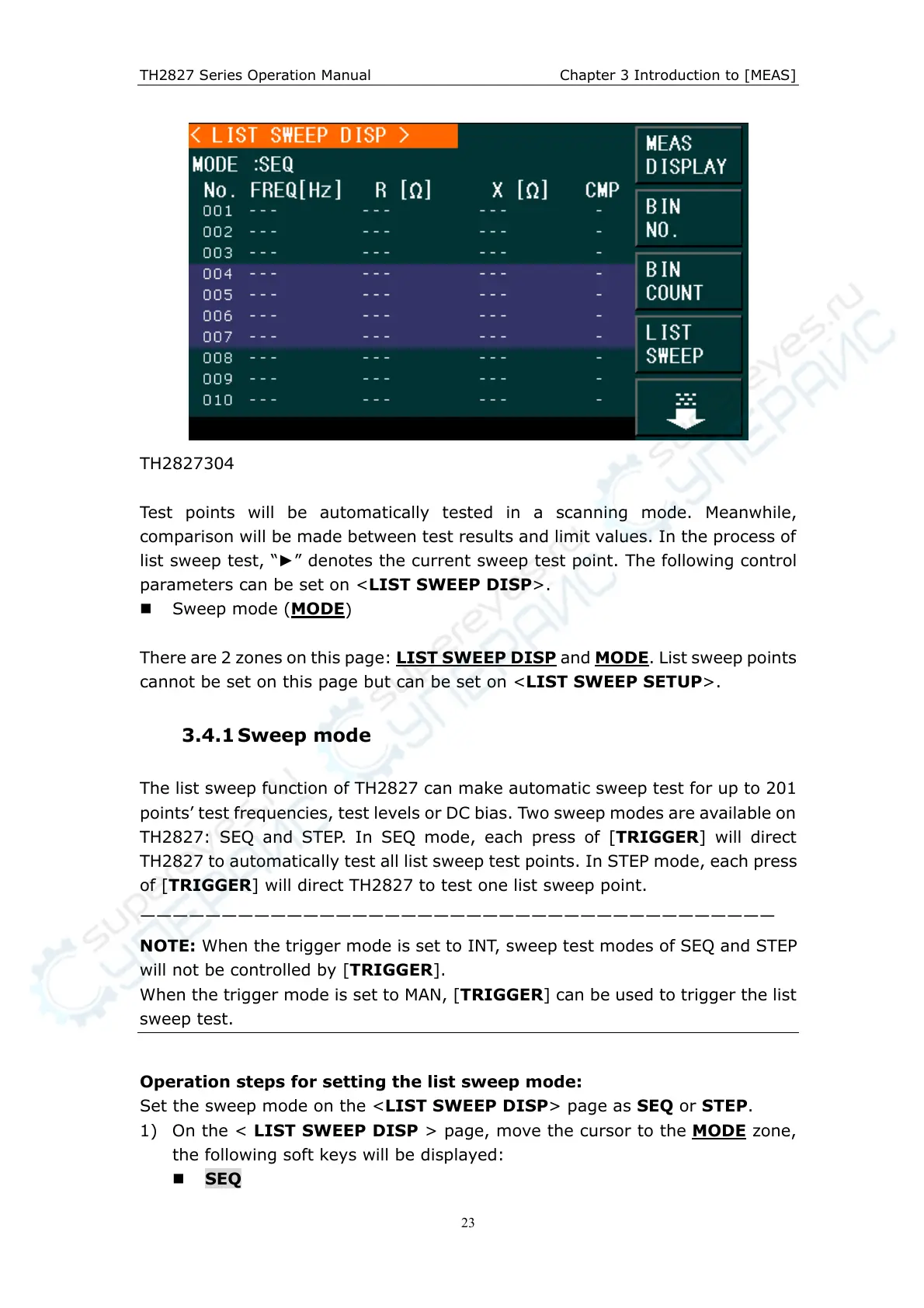

Test points will be automatically tested in a scanning mode. Meanwhile,
comparison will be made between test results and limit values. In the process of
list sweep test, “►” denotes the current sweep test point. The following control
parameters can be set on <LIST SWEEP DISP>.
Sweep mode (MODE
)
There are 2 zones on this page: LIST SWEEP DISP
and MODE. List sweep points
cannot be set on this page but can be set on <LIST SWEEP SETUP>.
3.4.1 Sweep mode
The list sweep function of TH2827 can make automatic sweep test for up to 201
points’ test frequencies, test levels or DC bias. Two sweep modes are available on
TH2827: SEQ and STEP. In SEQ mode, each press of [TRIGGER] will direct
TH2827 to automatically test all list sweep test points. In STEP mode, each press
of [TRIGGER] will direct TH2827 to test one list sweep point.
———————————————————————————————————————
NOTE: When the trigger mode is set to INT, sweep test modes of SEQ and STEP
will not be controlled by [TRIGGER].
When the trigger mode is set to MAN, [TRIGGER] can be used to trigger the list
sweep test.
Operation steps for setting the list sweep mode:
Set the sweep mode on the <LIST SWEEP DISP> page as SEQ or STEP.
1) On the < LIST SWEEP DISP > page, move the cursor to the MODE
zone,
the following soft keys will be displayed:
SEQ
To Next Page
