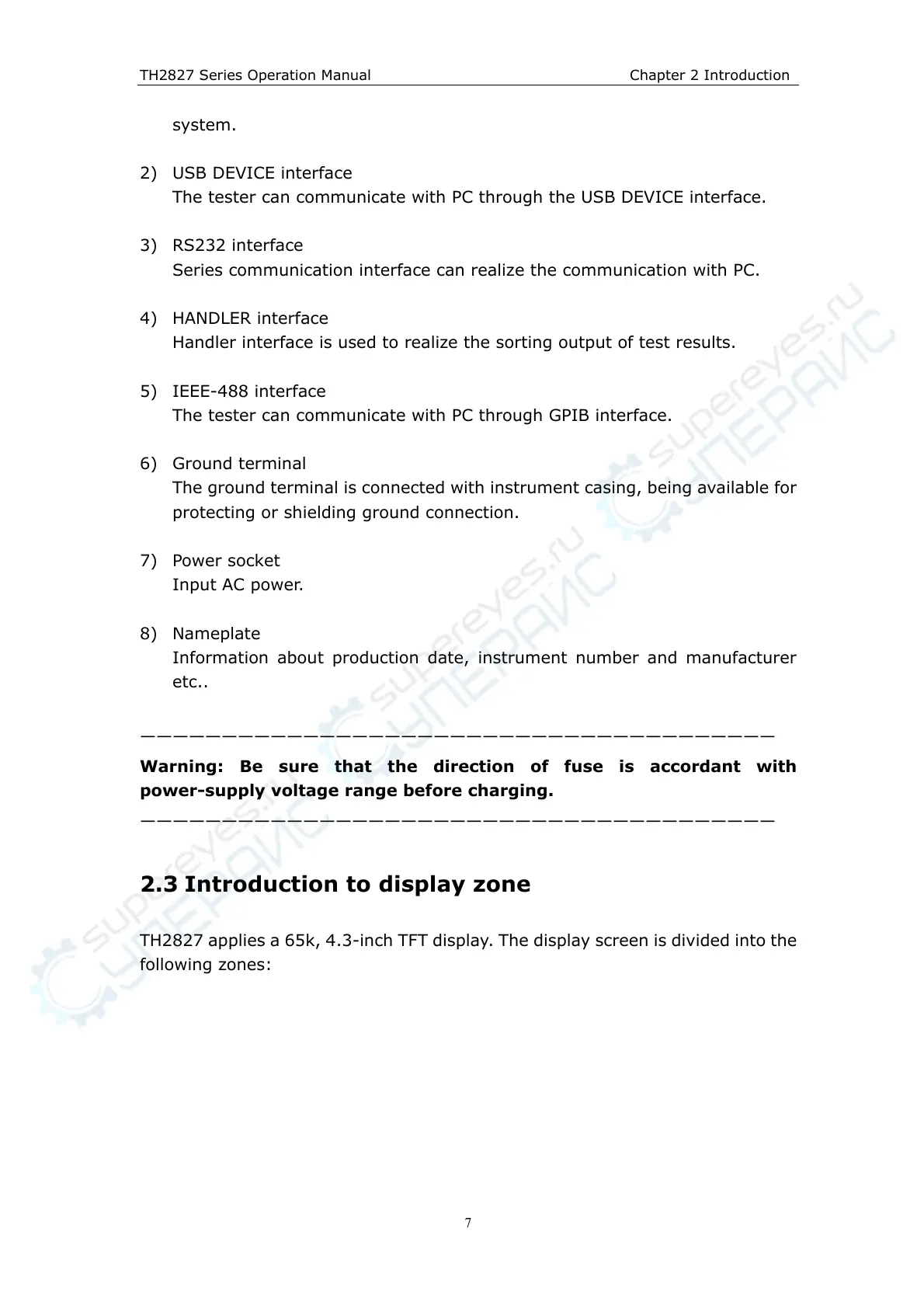

TH2827 Series Operation Manual Chapter 2 Introduction
7
system.
2) USB DEVICE interface
The tester can communicate with PC through the USB DEVICE interface.
3) RS232 interface
Series communication interface can realize the communication with PC.
4) HANDLER interface
Handler interface is used to realize the sorting output of test results.
5) IEEE-488 interface
The tester can communicate with PC through GPIB interface.
6) Ground terminal
The ground terminal is connected with instrument casing, being available for
protecting or shielding ground connection.
7) Power socket
Input AC power.
8) Nameplate
Information about production date, instrument number and manufacturer
etc..
———————————————————————————————————————
Warning: Be sure that the direction of fuse is accordant with
power-supply voltage range before charging.
———————————————————————————————————————
2.3 Introduction to display zone
TH2827 applies a 65k, 4.3-inch TFT display. The display screen is divided into the
following zones:
