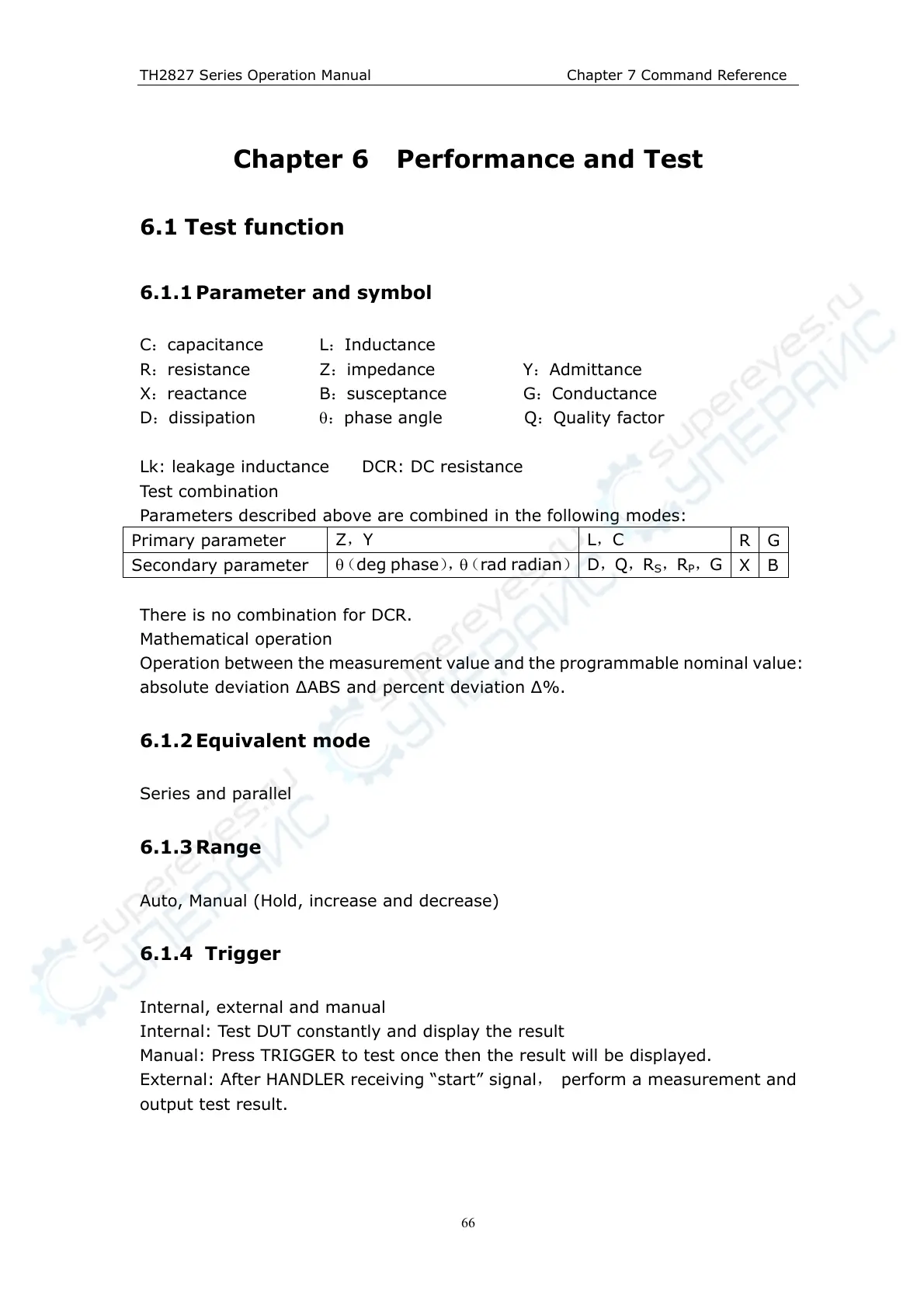

Chapter 6 Performance and Test
6.1 Test function
6.1.1 Parameter and symbol
C：capacitance L：Inductance
R：resistance Z：impedance Y：Admittance
X：reactance B：susceptance G：Conductance
D：dissipation ：phase angle Q：Quality factor
Lk: leakage inductance DCR: DC resistance
Test combination
Parameters described above are combined in the following modes:
Primary parameter
Z，Y L，C
R G
Secondary parameter
（deg phase），（rad radian） D，Q，R
S
，R
P
，G
X B
There is no combination for DCR.
Mathematical operation
Operation between the measurement value and the programmable nominal value:
absolute deviation ABS and percent deviation %.
6.1.2 Equivalent mode
Series and parallel
6.1.3 Range
Auto, Manual (Hold, increase and decrease)
6.1.4 Trigger
Internal, external and manual
Internal: Test DUT constantly and display the result
Manual: Press TRIGGER to test once then the result will be displayed.
External: After HANDLER receiving “start” signal， perform a measurement and
output test result.
