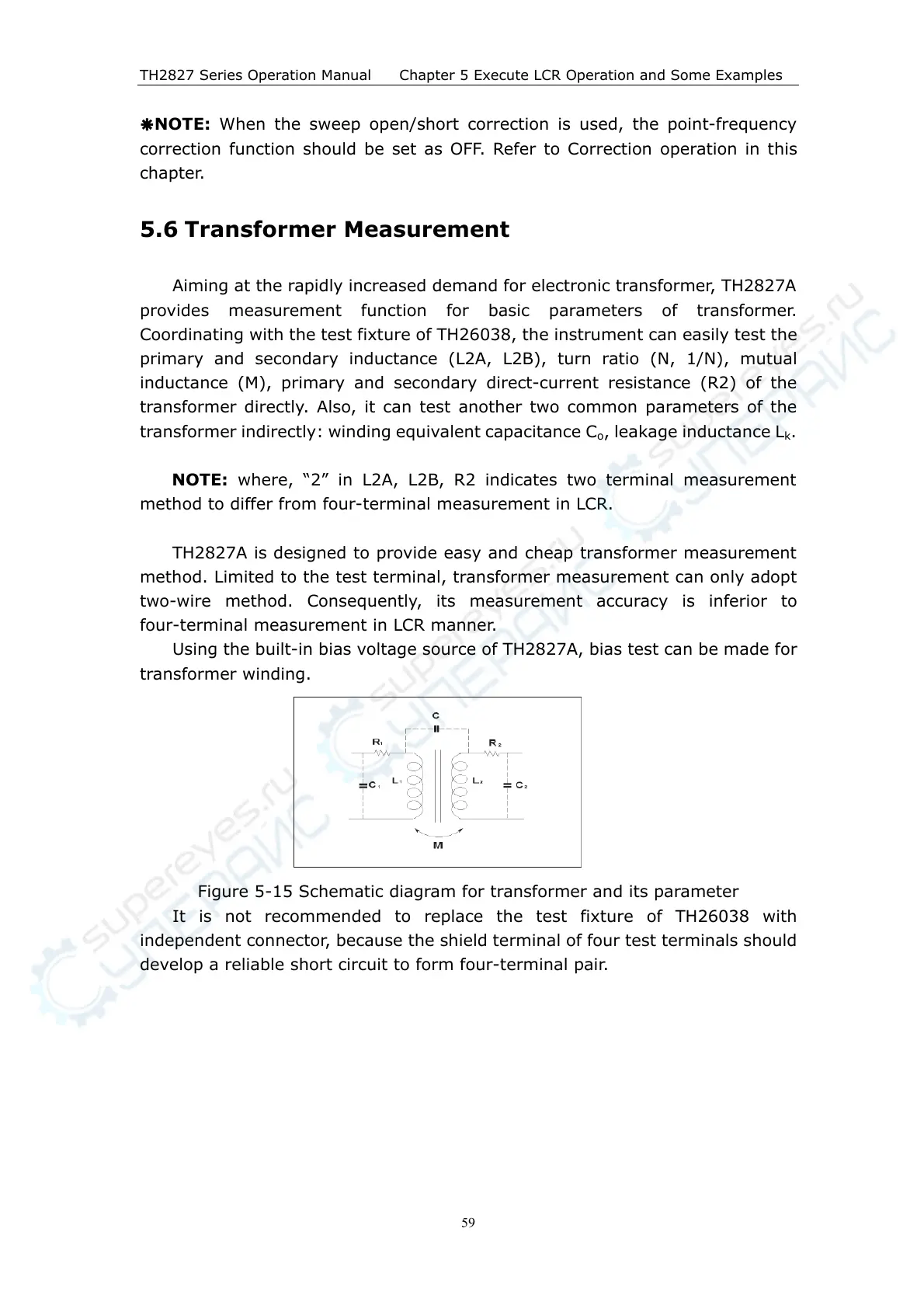

TH2827 Series Operation Manual Chapter 5 Execute LCR Operation and Some Examples
59
NOTE: When the sweep open/short correction is used, the point-frequency
correction function should be set as OFF. Refer to Correction operation in this
chapter.
5.6 Transformer Measurement
Aiming at the rapidly increased demand for electronic transformer, TH2827A
provides measurement function for basic parameters of transformer.
Coordinating with the test fixture of TH26038, the instrument can easily test the
primary and secondary inductance (L2A, L2B), turn ratio (N, 1/N), mutual
inductance (M), primary and secondary direct-current resistance (R2) of the
transformer directly. Also, it can test another two common parameters of the
transformer indirectly: winding equivalent capacitance C
o
, leakage inductance L
k
.
NOTE: where, “2” in L2A, L2B, R2 indicates two terminal measurement
method to differ from four-terminal measurement in LCR.
TH2827A is designed to provide easy and cheap transformer measurement
method. Limited to the test terminal, transformer measurement can only adopt
two-wire method. Consequently, its measurement accuracy is inferior to
four-terminal measurement in LCR manner.
Using the built-in bias voltage source of TH2827A, bias test can be made for
transformer winding.
Figure 5-15 Schematic diagram for transformer and its parameter
It is not recommended to replace the test fixture of TH26038 with
independent connector, because the shield terminal of four test terminals should
develop a reliable short circuit to form four-terminal pair.
