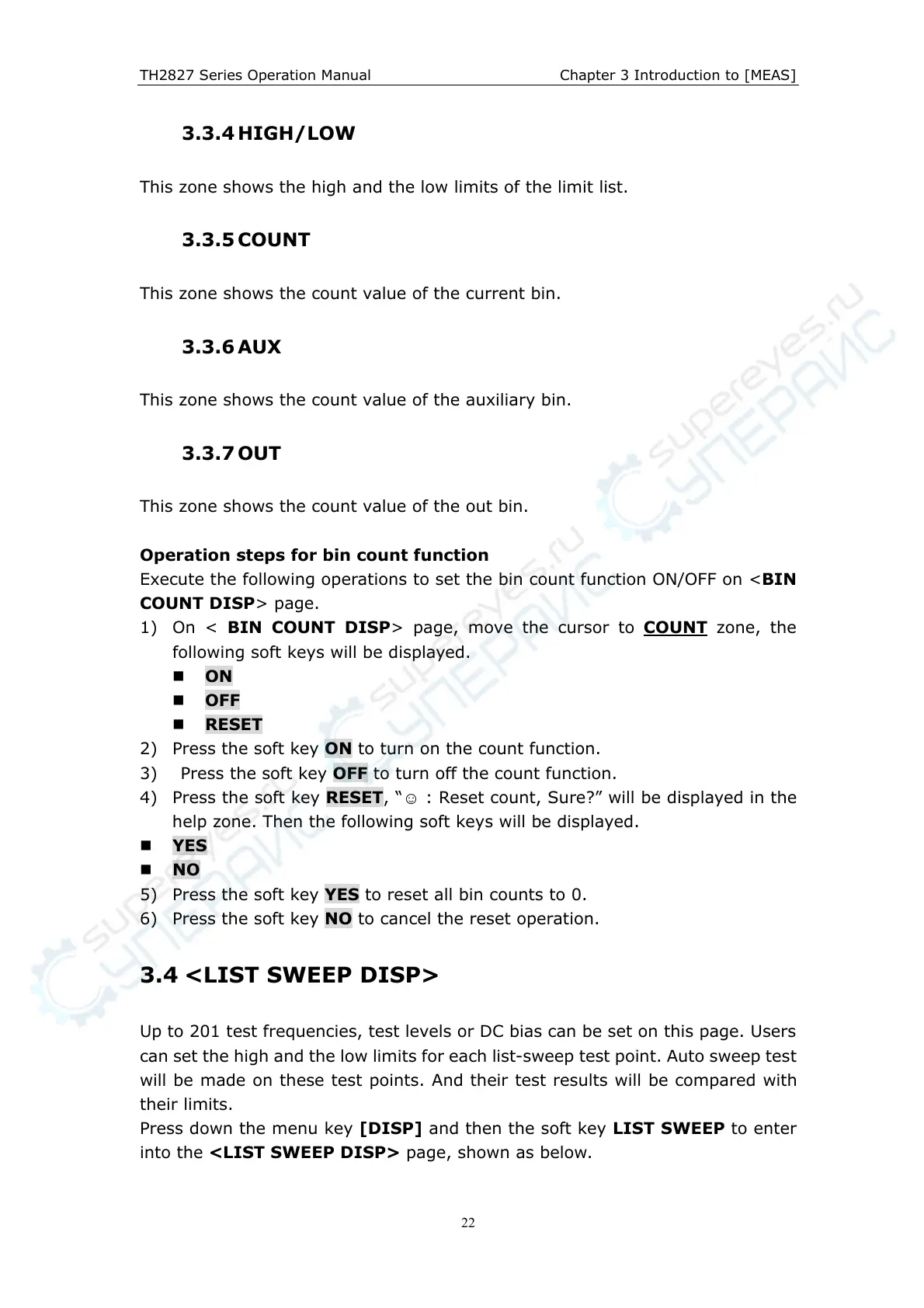

TH2827 Series Operation Manual Chapter 3 Introduction to [MEAS]
22
3.3.4 HIGH/LOW
This zone shows the high and the low limits of the limit list.
3.3.5 COUNT
This zone shows the count value of the current bin.
3.3.6 AUX
This zone shows the count value of the auxiliary bin.
3.3.7 OUT
This zone shows the count value of the out bin.
Operation steps for bin count function
Execute the following operations to set the bin count function ON/OFF on <BIN
COUNT DISP> page.
1) On < BIN COUNT DISP> page, move the cursor to COUNT
zone, the
following soft keys will be displayed.
ON
OFF
RESET
2) Press the soft key ON to turn on the count function.
3) Press the soft key OFF to turn off the count function.
4) Press the soft key RESET, “☺ : Reset count, Sure?” will be displayed in the
help zone. Then the following soft keys will be displayed.
YES
NO
5) Press the soft key YES to reset all bin counts to 0.
6) Press the soft key NO to cancel the reset operation.
3.4 <LIST SWEEP DISP>
Up to 201 test frequencies, test levels or DC bias can be set on this page. Users
can set the high and the low limits for each list-sweep test point. Auto sweep test
will be made on these test points. And their test results will be compared with
their limits.
Press down the menu key [DISP] and then the soft key LIST SWEEP to enter
into the <LIST SWEEP DISP> page, shown as below.
