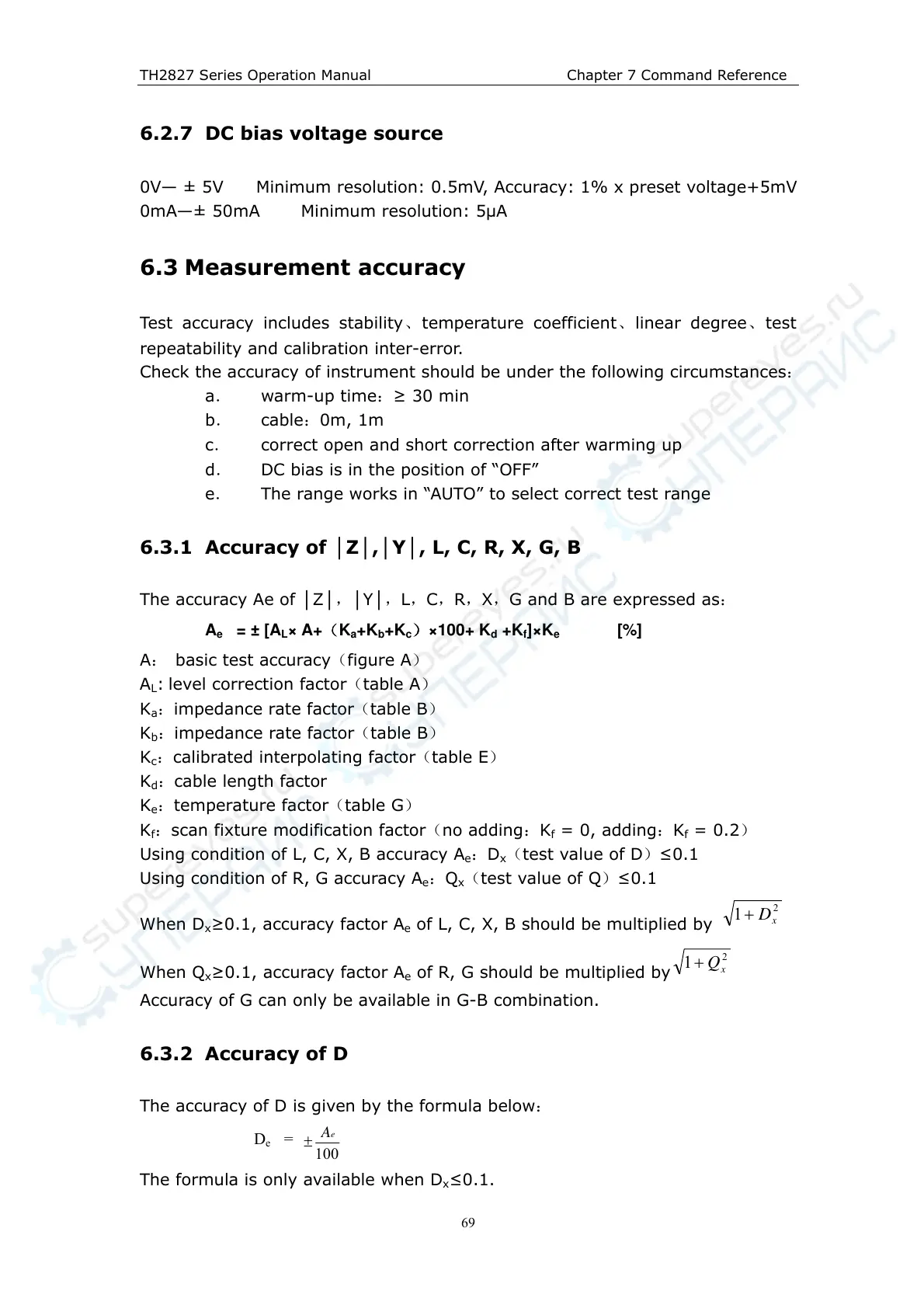

TH2827 Series Operation Manual Chapter 7 Command Reference
69
6.2.7 DC bias voltage source
0V— ± 5V Minimum resolution: 0.5mV, Accuracy: 1% x preset voltage+5mV
0mA—± 50mA Minimum resolution: 5A
6.3 Measurement accuracy
Test accuracy includes stability、temperature coefficient、linear degree、test
repeatability and calibration inter-error.
Check the accuracy of instrument should be under the following circumstances：
a． warm-up time： 30 min
b． cable：0m, 1m
c． correct open and short correction after warming up
d． DC bias is in the position of “OFF”
e． The range works in “AUTO” to select correct test range
6.3.1 Accuracy of │Z│,│Y│, L, C, R, X, G, B
The accuracy Ae of Z，Y，L，C，R，X，G and B are expressed as：
A
e
= ± [A
L
× A+（K
a
+K
b
+K
c
）×100+ K
d
+K
f
]×K
e
[%]
A： basic test accuracy（figure A）
A
L
: level correction factor（table A）
K
a
：impedance rate factor（table B）
K
b
：impedance rate factor（table B）
K
c
：calibrated interpolating factor（table E）
K
d
：cable length factor
K
e
：temperature factor（table G）
K
f
：scan fixture modification factor（no adding：K
f
= 0, adding：K
f
= 0.2）
Using condition of L, C, X, B accuracy A
e
：D
x
（test value of D）0.1
Using condition of R, G accuracy A
e
：Q
x
（test value of Q）0.1
When D
x
0.1, accuracy factor A
e
of L, C, X, B should be multiplied by
2
1
x
D
When Q
x
0.1, accuracy factor A
e
of R, G should be multiplied by
2
1
x
Q
Accuracy of G can only be available in G-B combination.
6.3.2 Accuracy of D
The accuracy of D is given by the formula below：
D
e
=
100
eA

The formula is only available when D
x
0.1.
