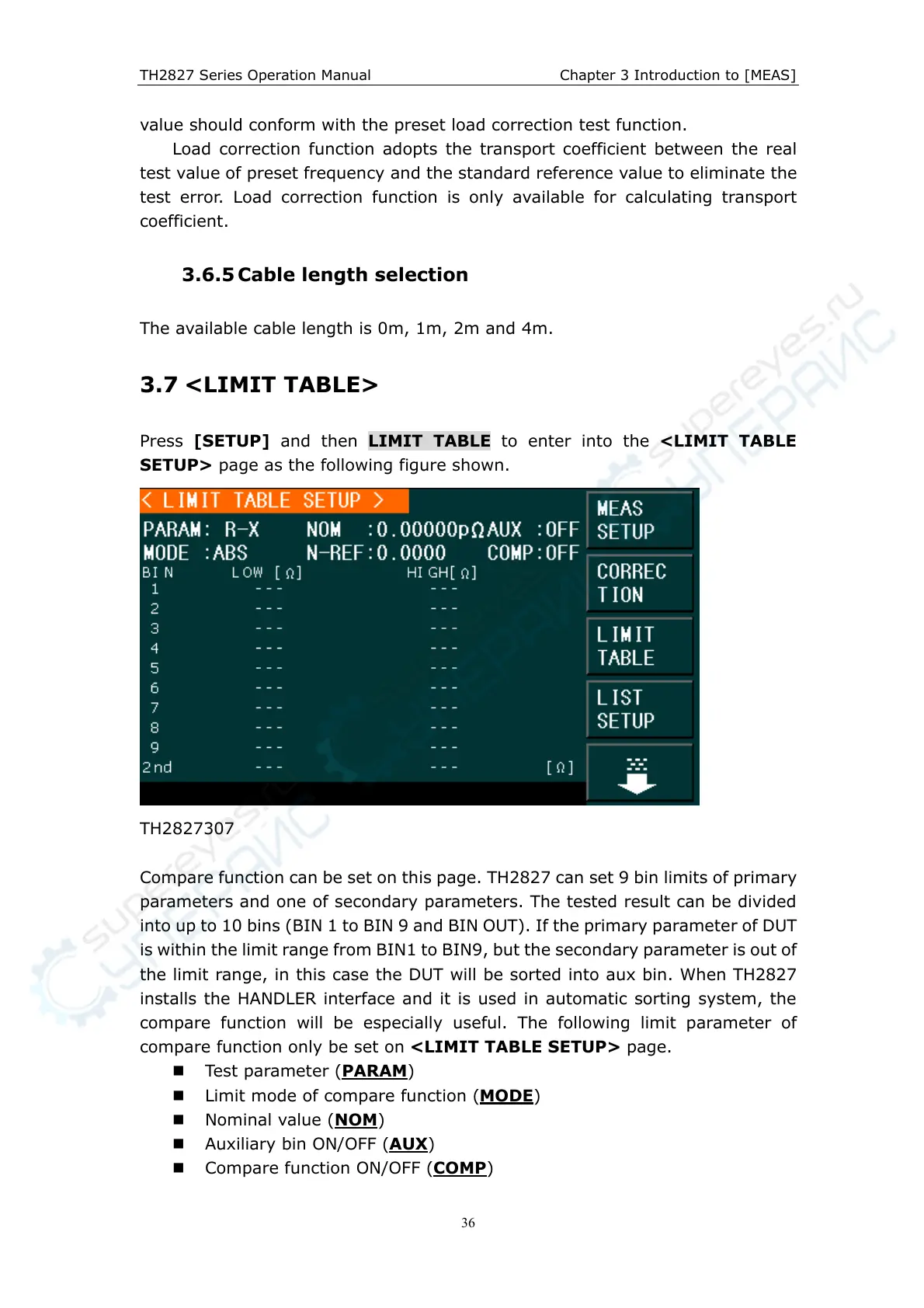

TH2827 Series Operation Manual Chapter 3 Introduction to [MEAS]
36
value should conform with the preset load correction test function.
Load correction function adopts the transport coefficient between the real
test value of preset frequency and the standard reference value to eliminate the
test error. Load correction function is only available for calculating transport
coefficient.
3.6.5 Cable length selection
The available cable length is 0m, 1m, 2m and 4m.
3.7 <LIMIT TABLE>
Press [SETUP] and then LIMIT TABLE to enter into the <LIMIT TABLE
SETUP> page as the following figure shown.
TH2827307
Compare function can be set on this page. TH2827 can set 9 bin limits of primary
parameters and one of secondary parameters. The tested result can be divided
into up to 10 bins (BIN 1 to BIN 9 and BIN OUT). If the primary parameter of DUT
is within the limit range from BIN1 to BIN9, but the secondary parameter is out of
the limit range, in this case the DUT will be sorted into aux bin. When TH2827
installs the HANDLER interface and it is used in automatic sorting system, the
compare function will be especially useful. The following limit parameter of
compare function only be set on <LIMIT TABLE SETUP> page.
 Test parameter (PARAM
)
 Limit mode of compare function (MODE
)
 Nominal value (NOM)
 Auxiliary bin ON/OFF (AUX)
 Compare function ON/OFF (COMP)
