TH2827 Series Operation Manual Chapter 7 Command Reference
120
finished. the comparison result signal is effective until
/EOM is effecive.
others The definition is the same to that of the comparison.
/BIN1 /BIN2 /BIN3 /BIN4 /BIN5 /BIN6 /BIN7 /BIN8 /BIN9 /OUT
the measurement data
the high limit
the good area
the low limit
1 2 3 4 5 6 7 8 9 10
the sweep point

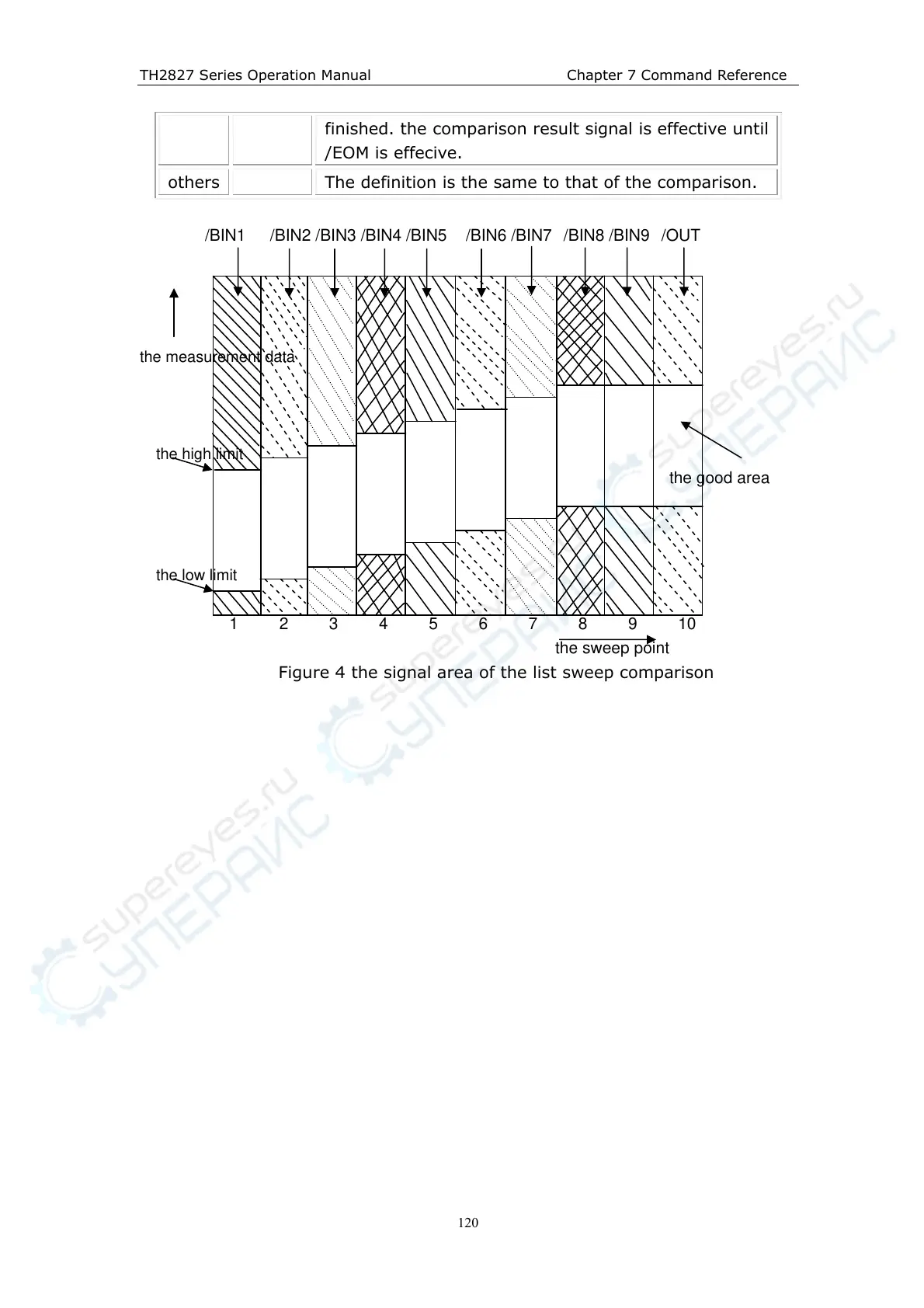

Figure 4 the signal area of the list sweep comparison
