TH2827 Series Operation Manual Chapter 7 Command Reference
123

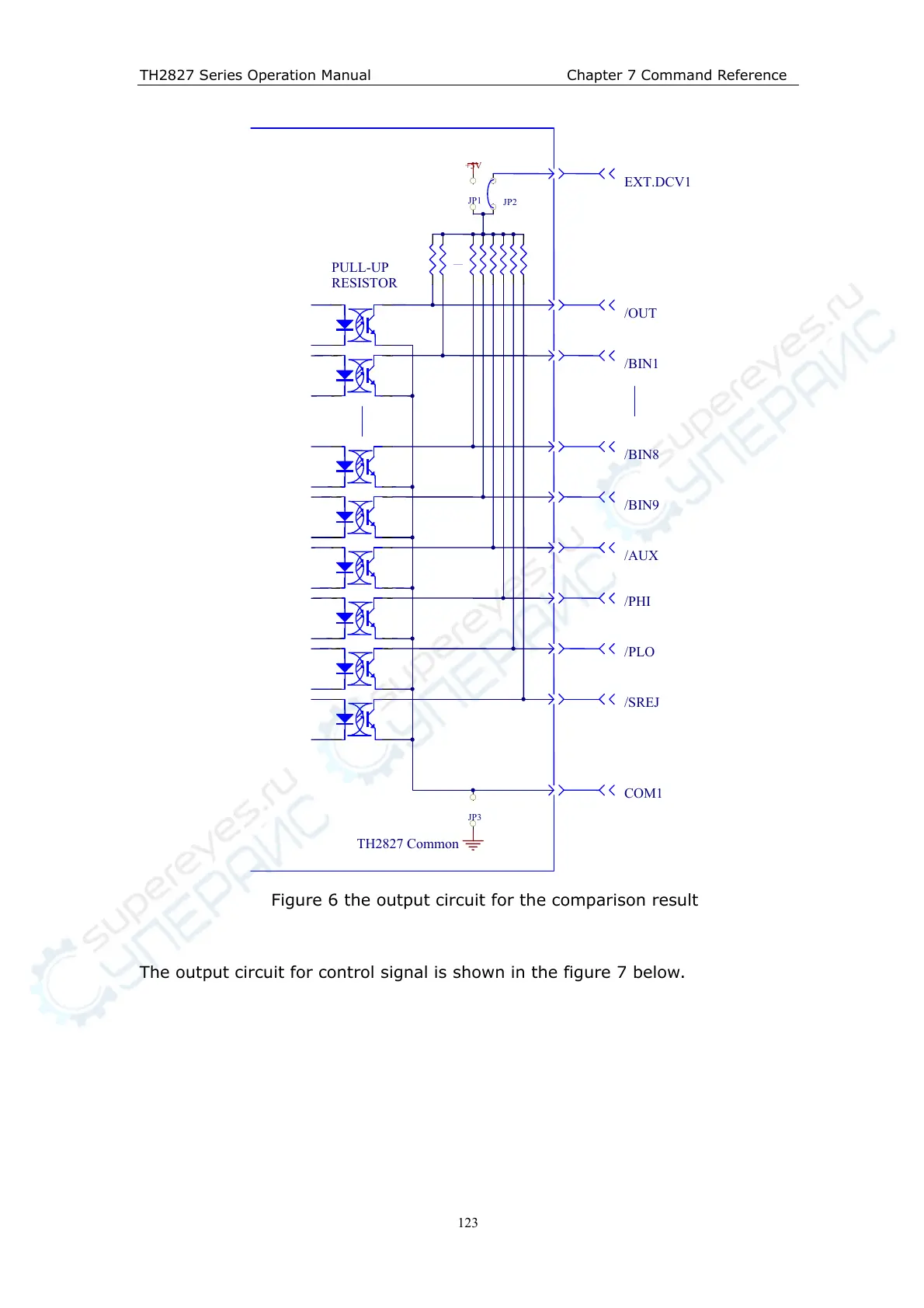

Figure 6 the output circuit for the comparison result
The output circuit for control signal is shown in the figure 7 below.
PULL-UP
RESISTO
R
JP2
JP1
+5V
JP3
TH2827 Common
EXT.DCV1
/OUT
/BIN1
/BIN8
/AUX
/PHI
/PLO
/SREJ
/BIN9
COM1
