TH2827 Series Operation Manual Chapter 7 Command Reference
72
The basic measurement accuracy factor A can be obtained by the following
methods:

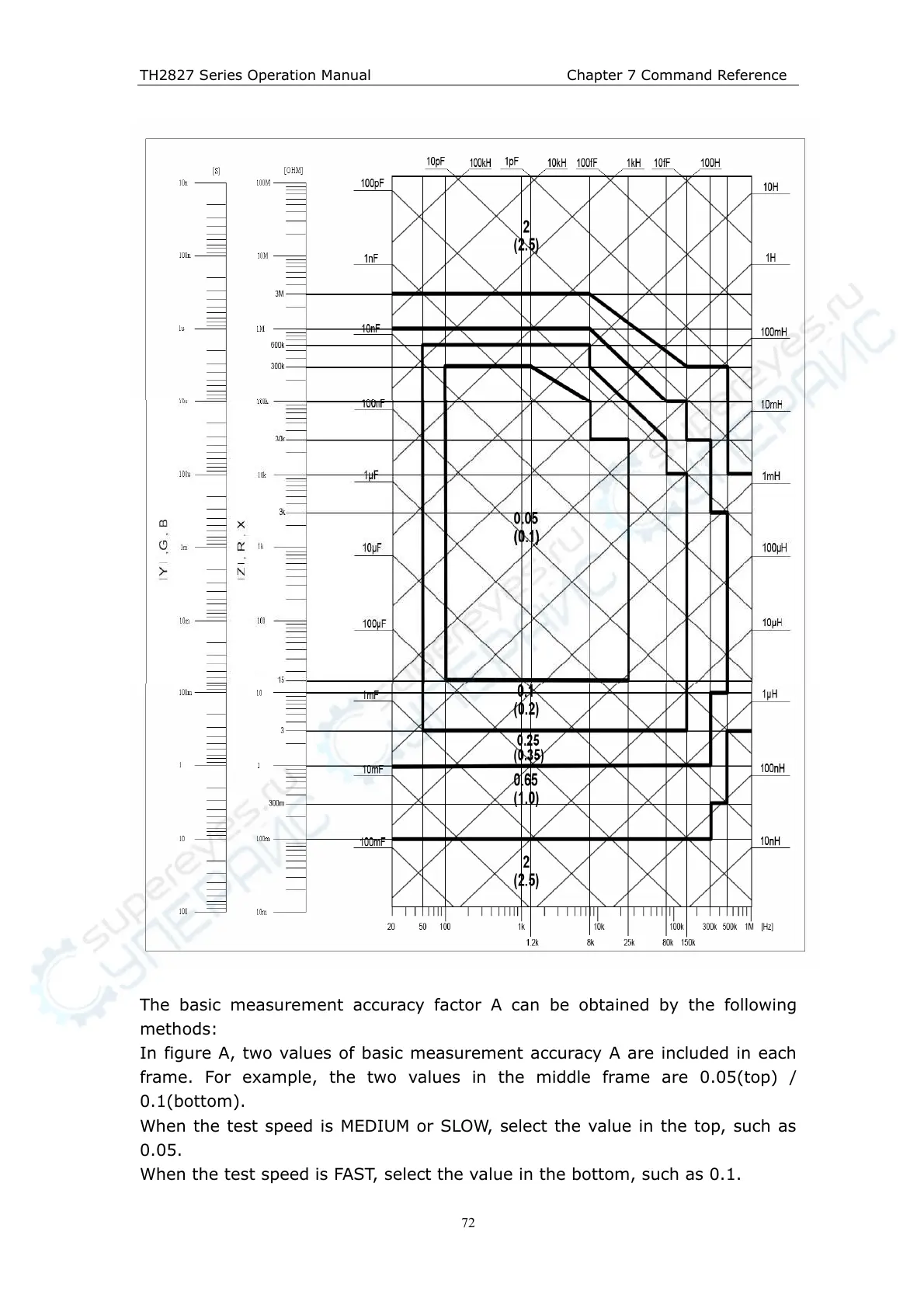

In figure A, two values of basic measurement accuracy A are included in each
frame. For example, the two values in the middle frame are 0.05(top) /
0.1(bottom).
When the test speed is MEDIUM or SLOW, select the value in the top, such as
0.05.
When the test speed is FAST, select the value in the bottom, such as 0.1.
