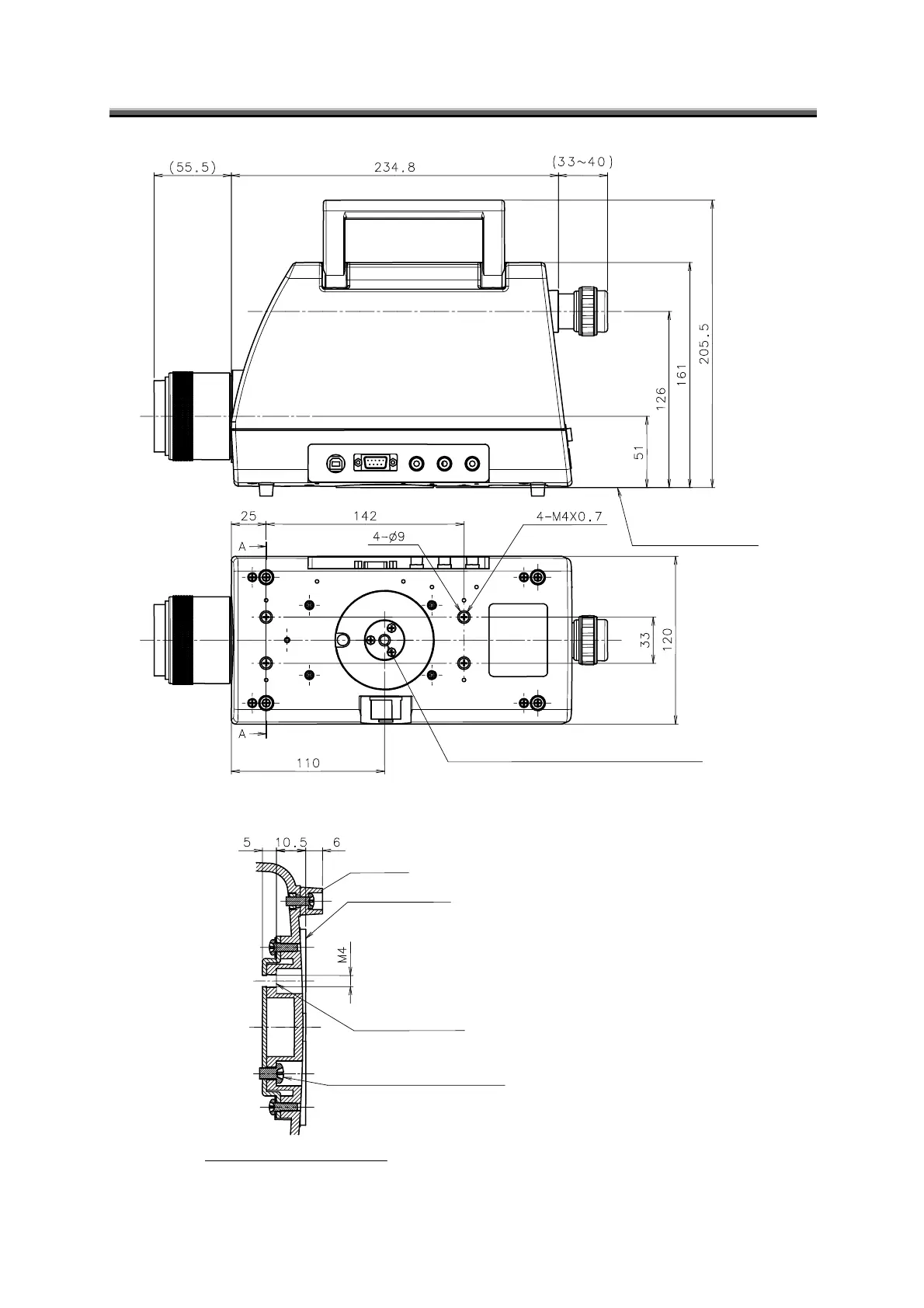

External Dimensions
3
Tripod seat
reference surface
(For tooling)
1/4-20 UNC (Depth 6)
Camera tripod screw
Normal: Cross recessed pan-head screw
Install M4 x 0.7 lengths 6
Rubber leg
Tripod seat surface
Installation surface
A-A Cross section (enlarged view)
