FUNDUS TOMOGRAPHY
Alignment and photography
The alignment operation is done with the control lever.
•
Fine movements of the base, back and forth and right and left, are done by tilting the control lever.
Before performing this operation, free the base by turning the Base clamping knob to the left.
To lock the base, turn the Base clamping knob to the right.
• To move the instrument body up/down, turn the control lever right for upward movement, and left for
downward movement.
The vertical position mark indicates the standard for the instrument's vertical position.
CAUTION
• To avoid injury while moving the instrument body, do not put your hand
into the gap between the main unit and power supply unit.
• To avoid injury to the patient's eyes and nose while moving the instru-
ment body, be attentive to the distance between the patient and the
objective lens.

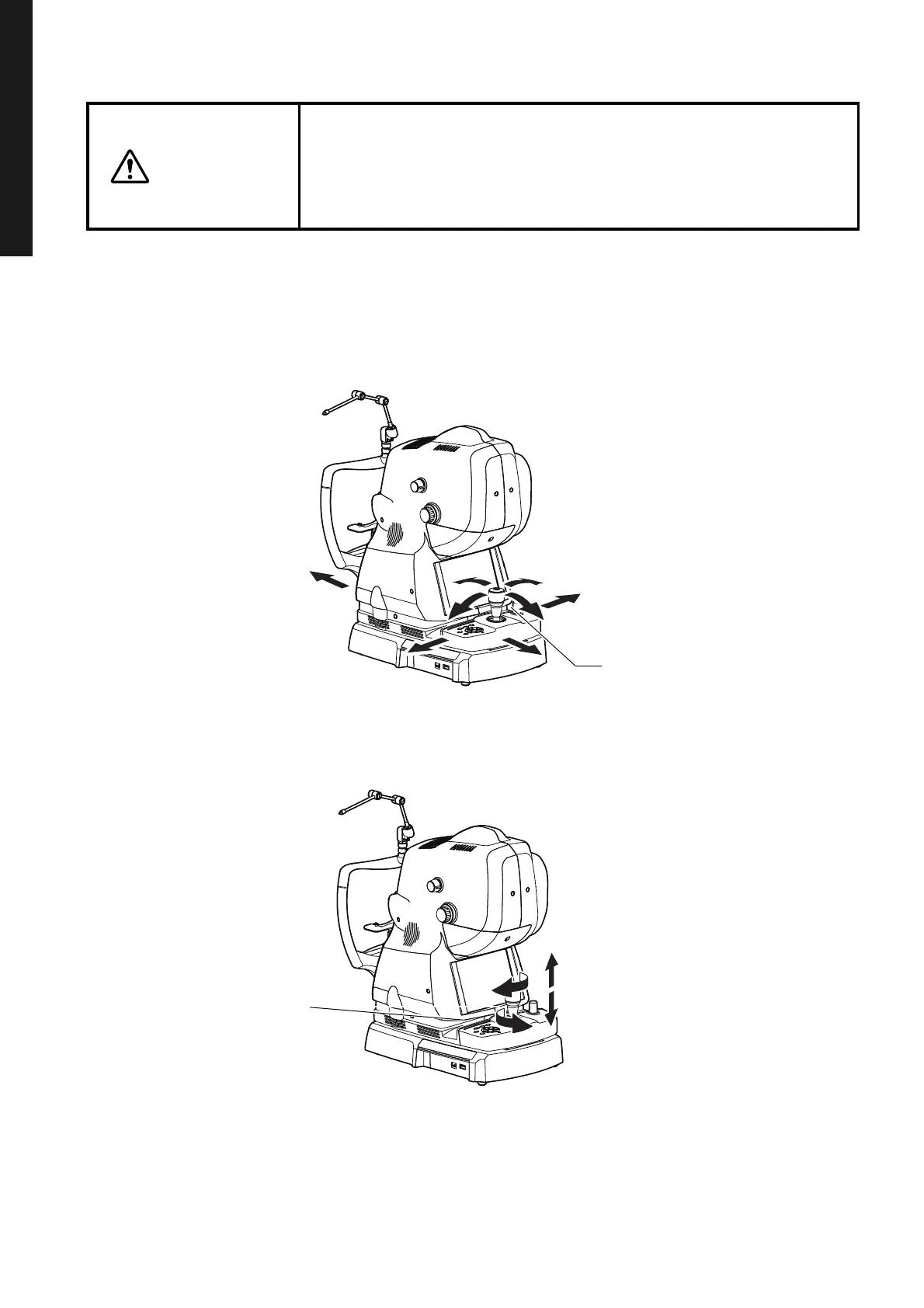

Operating the control lever
(in back and forth/right
and left directions)
Base clamping knob
Operating the control lever
(in a vertical direction)
Vertical position mark
To Next Page
