Bluetooth Module Configuration
P/N 7010-0816
2-19
5. Click Connect to connect the computer and Bluetooth module.

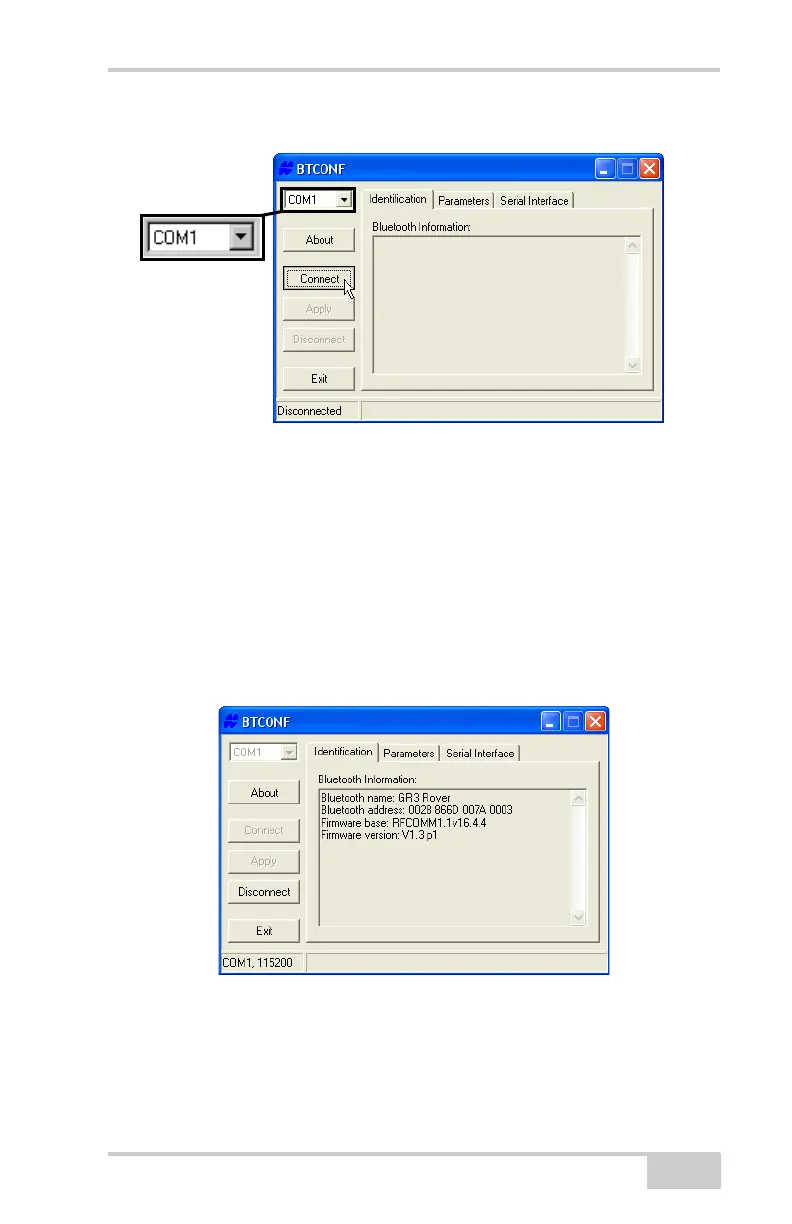

Figure 2-14. Select Communication Port and Click Connect
Once the receiver and computer connect through BTCONF, the
Identification tab (Figure 2-15) displays the following
information:
• Bluetooth name – the name of the Bluetooth module.
• Bluetooth address – the unique electronic address for the
module.
• Firmware version – the current firmware version of the
Bluetooth module.
Figure 2-15. BTCONF Identification Tab
The COM port and baud rate display in the lower left corner.
6. Click the Parameters tab (Figure 7). The Parameters tab sets
identifying and security information for your Bluetooth module.
