Topcon HiPer V - Setting Up the Base Receiver

Field System Setup
SettingUptheBaseReceiver
51
P/N:1001608‐01
Setting Up the Base Receiver

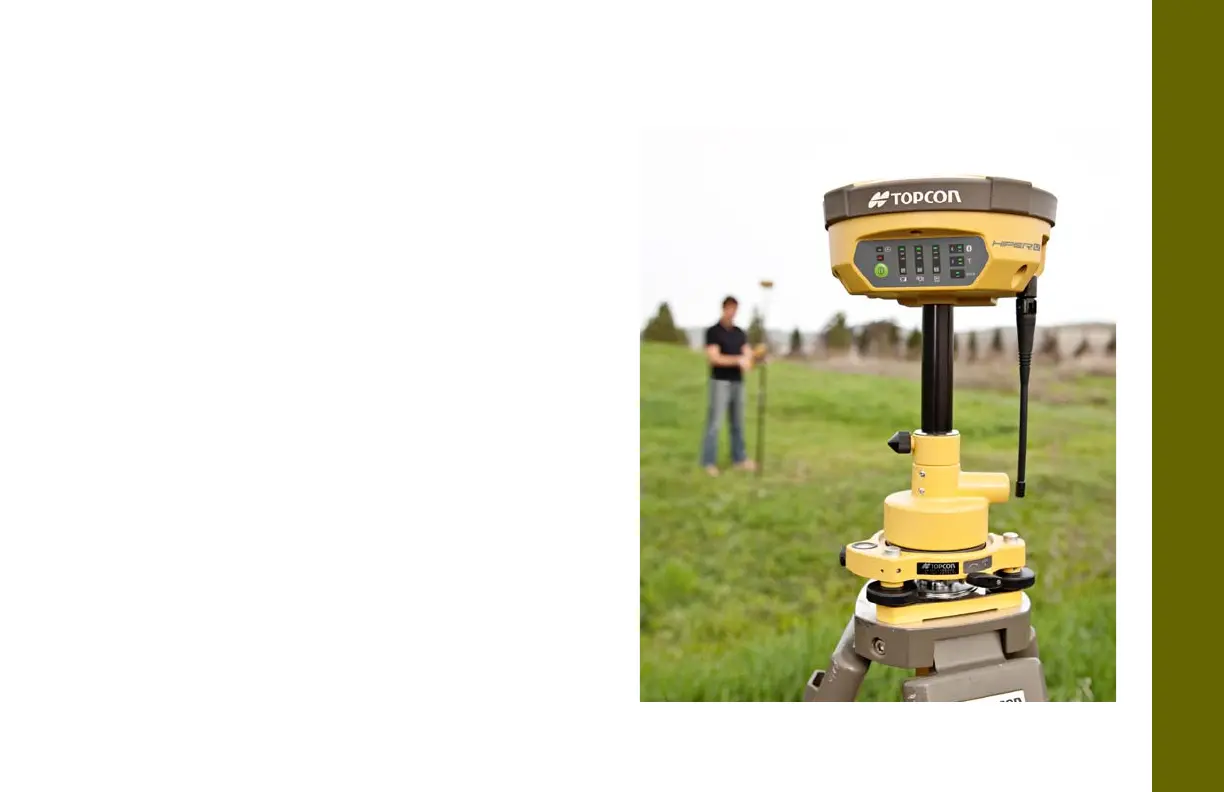

1. Mountthereceiveronatripodwithatribrach,tribrach 
adapter,andprismspacer,asshowninthepictureon
theright.
2. Positionthebasesystem(fromstep1)overaknown
point.
3. Levelthetripodandmeasuretheheightofthereceiver
fromthegroundusingthetapemeasure.See
“Measuring
AntennaHeight”onpage 53.
4. Connecttheexternalradioantennatotheantenna
portforRTKsetup.
5. Pressthepowerbuttontoturnonthereceiver.The
integratedwirelessdeviceinthereceiverturnson
whenthereceiverispowered.
6. ConnectthereceivertotheBluetooth‐enableddata
collector,runningTopco nFieldsoftware,
toconfigure
andstartthebaseHiPerVreceiver.
7. ViewtheLEDdisplaypanelforthereceiver’scurrent
status.Seealso“DisplayPanelOperations”onpage 18.
