Grading Applications
Motorgrader System Five Operator’s Manual
5-14

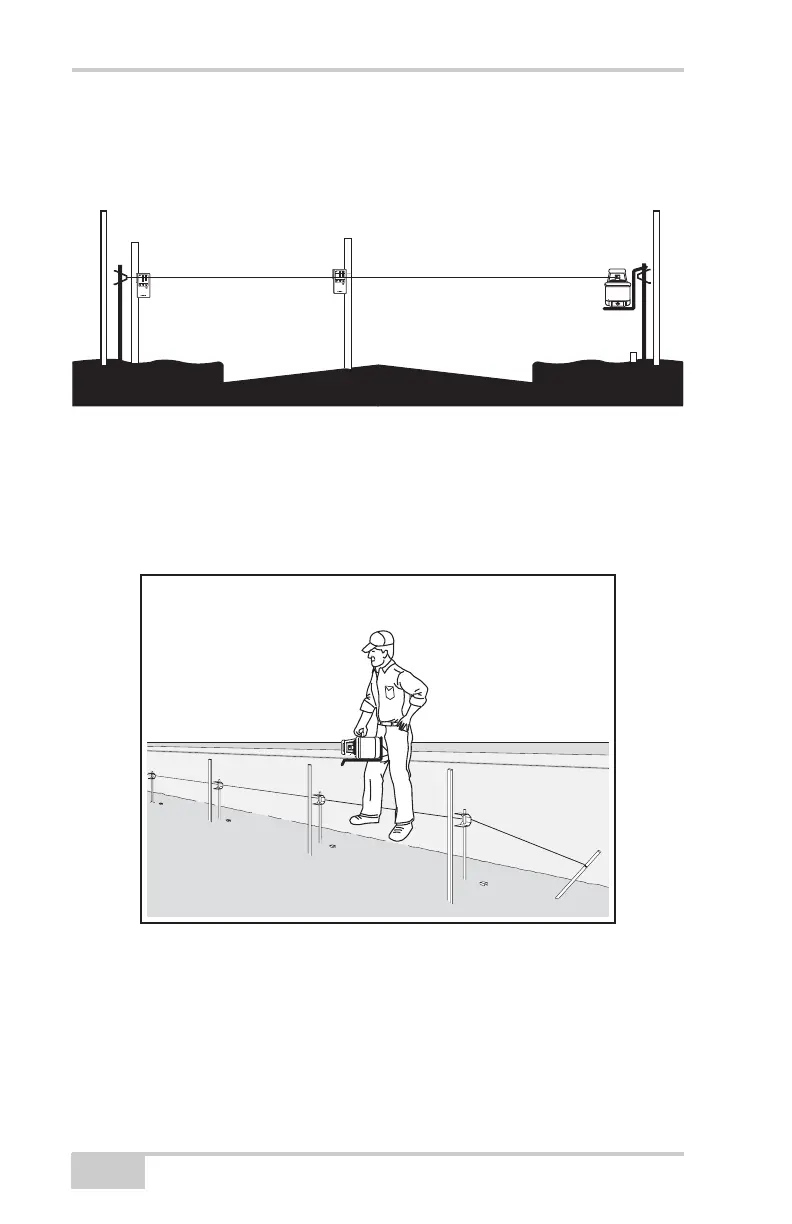

The Laser Grade Checking System can be used to check grade on the
opposite side of the road and to even verify that the hub or stringline
on the opposite side is correct.
Figure 5-17.
To check grade at additional stations, just pick up the laser and move
it. Because of the consistent grade cut by System Five, you will find
you do not need to inspect grade at every station, but you should "spot
"check" grade at several stations.
Figure 5-18.
