Blade Wear Calibration (Trim)
P/N 7010-0344
3-7
Blade Wear Calibration (Trim)
The Blade Wear Calibration allows the operator to make an
adjustment for cutting edge wear. This calibration adjustment is
performed while cutting grade right on the job, and can be completed
in less than 5 minutes. This will insure a perfect calibration and
verifies System Five is cutting exactly the way it is supposed to.
To perform the Blade Wear Calibration:
1. Switch either left side or right side to Automatic Control, and
grade a smooth finish pass at least 50 feet long. The % of slope
dialed in does not matter, but it is best to dial in a slope that will
closely match the area being graded. If the ground is fairly rough,
back up and grade 2 or 3 passes until a smooth finish pass is cut.
Press the "NEXT" button.

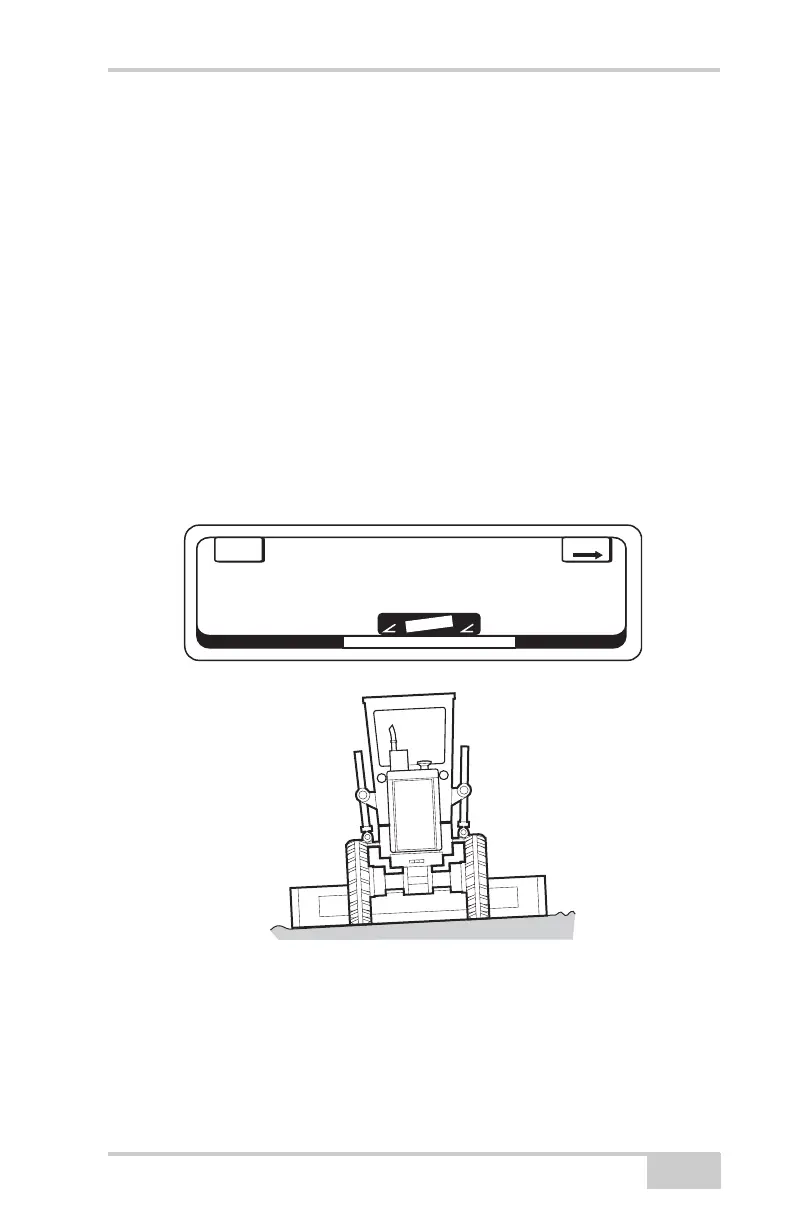

Figure 3-9.
N
E
XT
E
XIT
BLADE WEAR CAL. (TRIM)
TURN ONE SIDE TO
AUTO AND GRADE A
SMOOTH FINISH PASS.
2.0%
To Next Page
