Calibration
Motorgrader System Five Operator’s Manual
3-8
2. Turn machine around 180 degrees and position blade over
previous pass. With one side in automatic, slowly lower the blade
and observe to see if the cutting edge matches the previous pass.
Press the "NEXT" button.

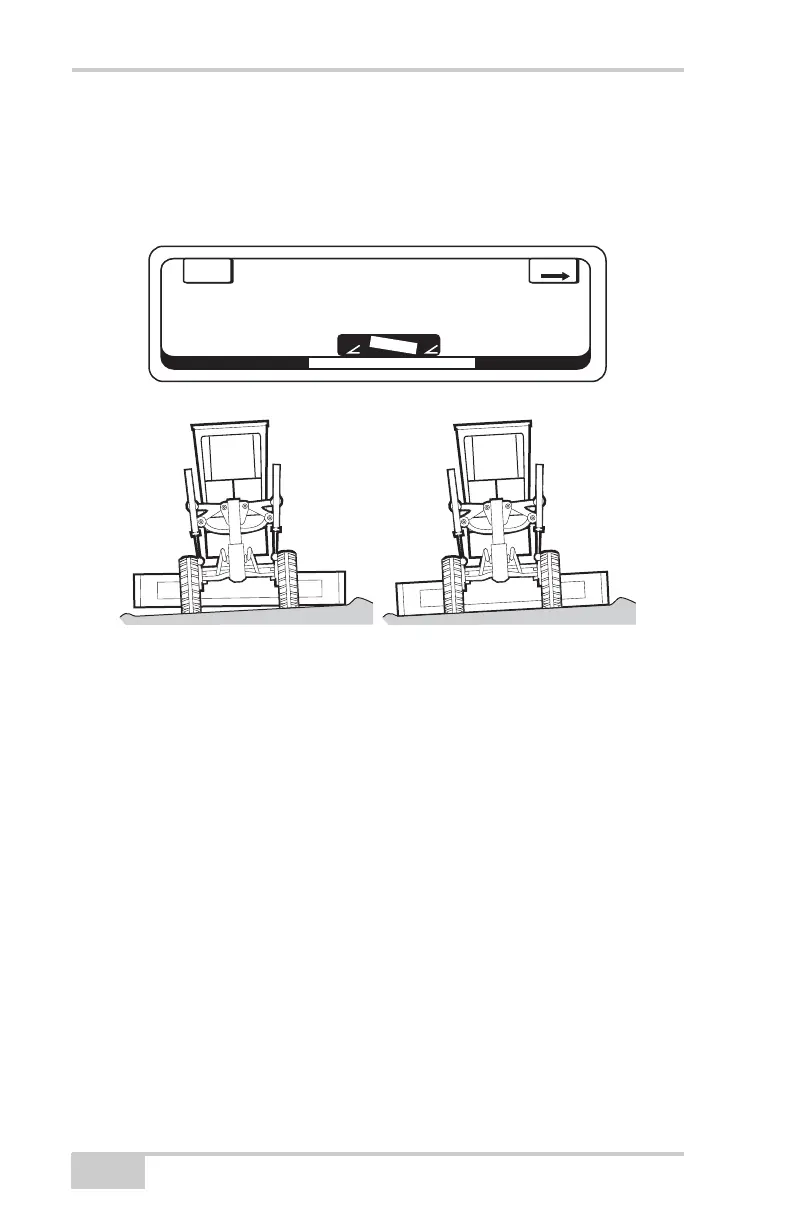

Figure 3-10.
BLADE WEAR CAL. (TRIM)
TURN AROUND AND STOP
OVER PREVIOUS PASS. IN
AUTO CHECK IF CUTTING
EDGE MATCHES.
2.0%
N E XT E XIT
