Topcon Motorgrader - The LCD (Liquid Crystal Display)

Control Box
P/N 7010-0344
2-3
The LCD (Liquid Crystal Display)

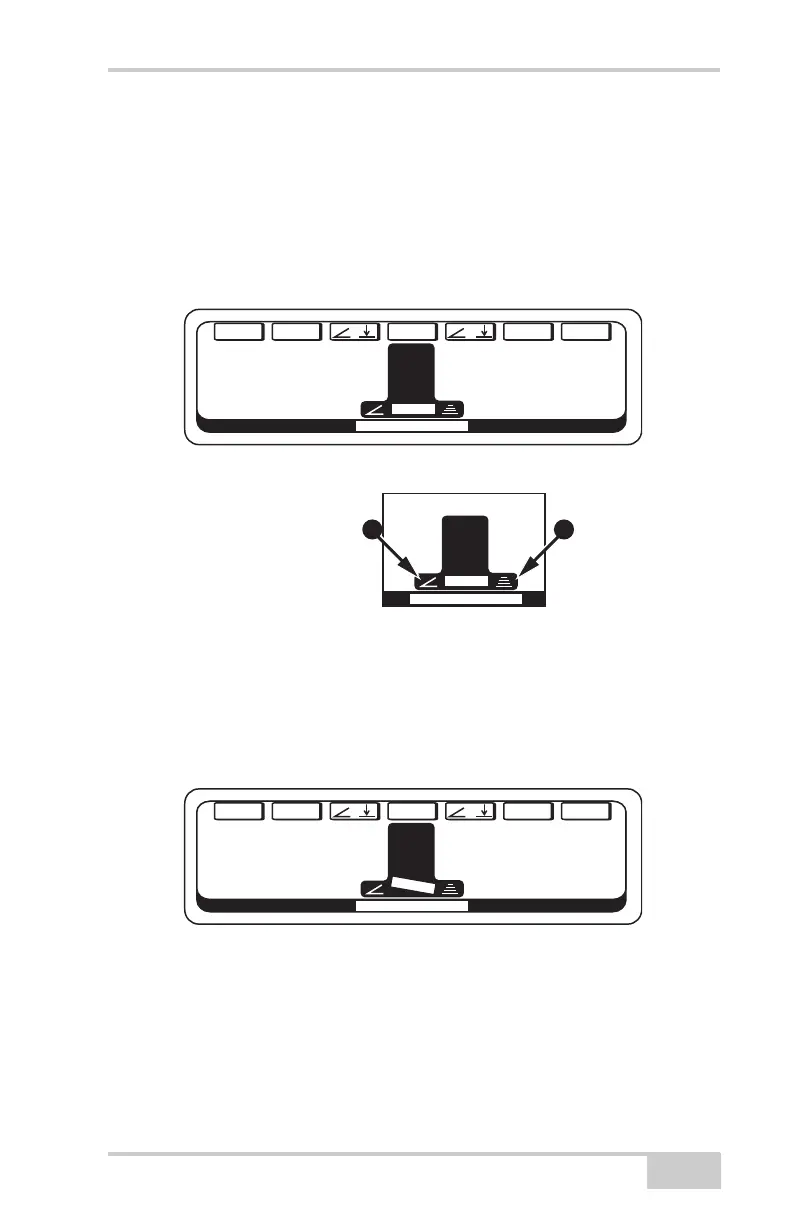

The LCD allows the operator to view text and graphic symbols that
represent elevation or slope settings that System Five is currently
maintaining for the left and right sides of the motorgrader.
• System Five in Control Mode during operation.
Figure 2-2.
Figure 2-3.
• 2.0% cross slope has been selected for the left side. The blade
symbol shows that the 2.0% slope is going down.
• The Sonic Tracker symbol indicates that Sonic Control has been
selected for the right side.
Figure 2-4.
0.0
F
T
CONTROL MODE
G A INS E T/+/ — /T R IMM E NU
0.0%
+
LEFT RIGHT
A
B
CONTROL MODE
A
= Slope Control
B = Sonic Control
0.0
F
T
CONTROL MODE
G A INSS E T/ + / — /T R IMM E NU
2.0%
+
