System Overview
Motorgrader System Five Operator’s Manual
1-6
Laser Tracker and Trackerjack
The Laser Tracker works by receiving a signal from a rotating laser
and sends that signal to the Control Box. Use the same coil cord from
the Sonic Tracker II to power up the Laser Tracker.
The Trackerjack attaches to the laser receiver and then mounts onto a
vibration pole. Use the coil cord from the Sonic Tracker II to power
up the Laser Tracker/Trackerjack System.
The Laser Trackerjack should be removed at the end of each day and
stored in its carrying case. A vibration pole storage bracket can be
attached to the back of the grader for use when the Trackerjack
system is not needed.

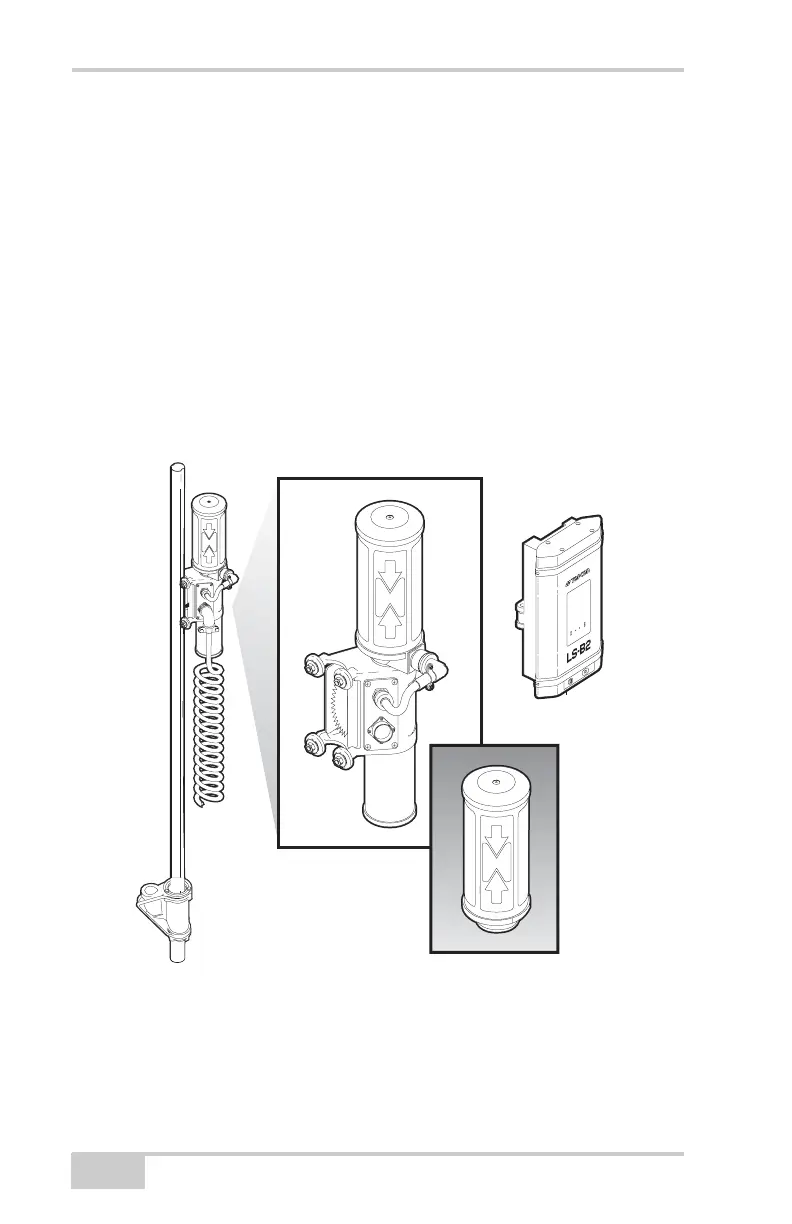

Figure 1-5.
1 2 3 4
OPTIONAL
LS-B
2
