Control Box
P/N 7010-0344
1-3

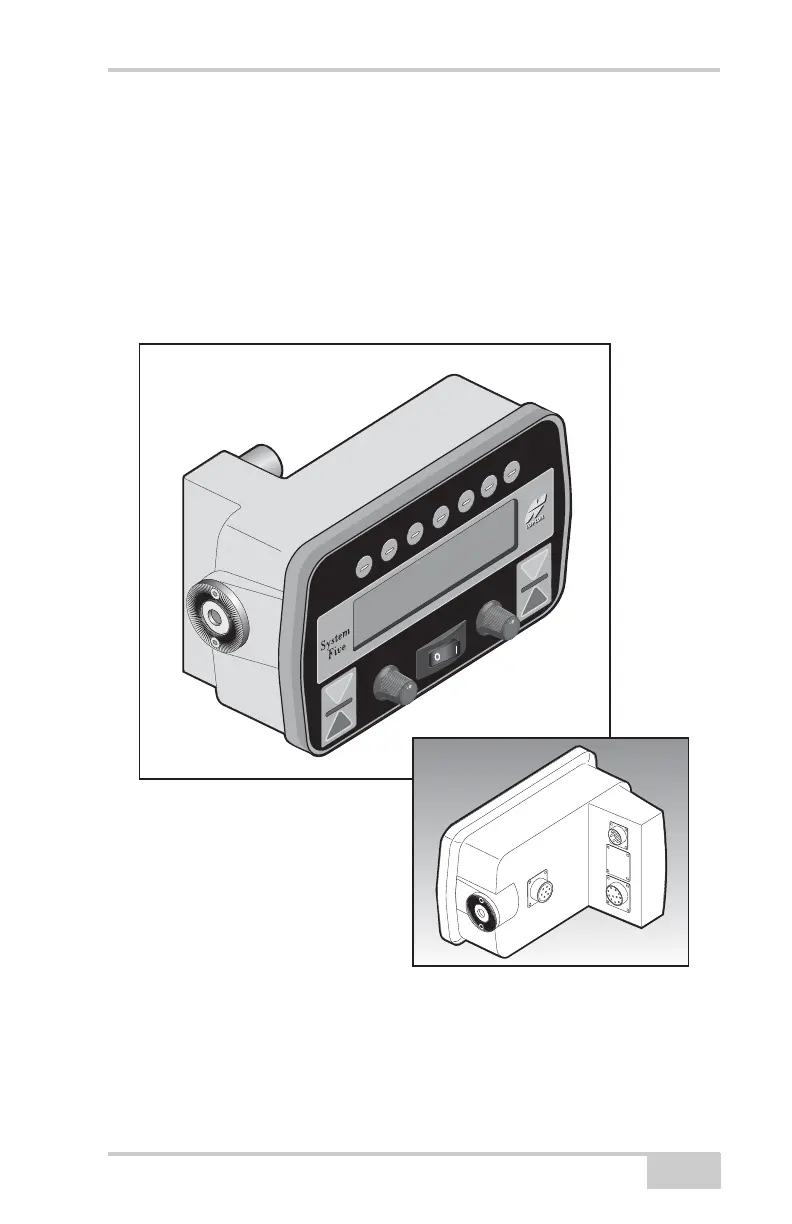

Control Box
The Control Box is the operator's interface to System Five. It easily
attaches to its mounting bracket with one clamp, and at the end of the
day can be quickly removed for storage. The control box connects to
the Remote "Smart" Knobs™ and the machine power system with
one small connector, and connects to the other system components
with one large connector.
Figure 1-2.
