Topcon Motorgrader - Grading a City Street

Grading a City Street
P/N 7010-0344
5-31

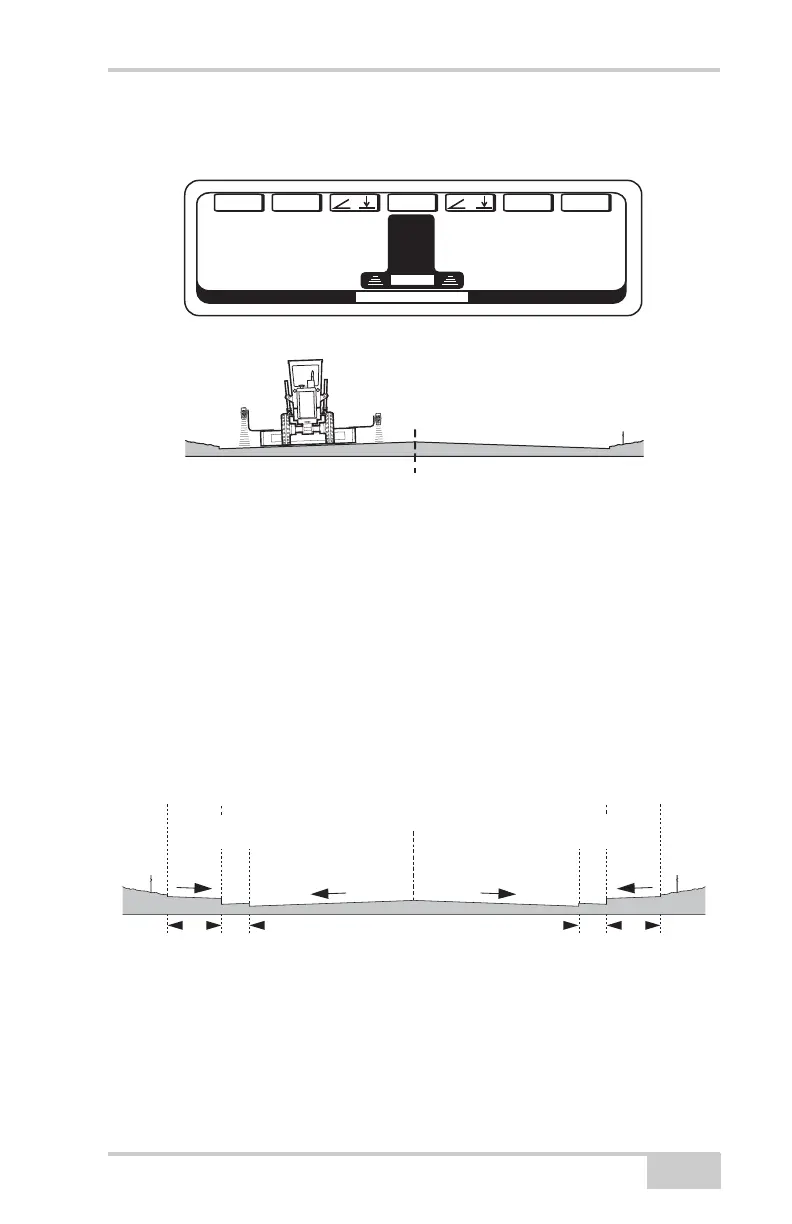

After the windrow is picked up, Sonic Control on both sides may be
used to make a final "clean up" pass after the scraper or loader.
Figure 5-44.
Grading a City Street
This section reviews how to cut sidewalk, curb, and street grade, as
well as cutting a crowned street from existing curb. Street design
varies greatly, so use this as an example and make adjustments for
your job.
Figure 5-45.
For best results, set Sonic Stringline to use as a reference for the
sidewalk grade. Using Sonic Tracker and Slope Control, dial in the
desired grade and slope. Be sure the grade checker verifies the grade
0.00
F
T
CONTROL MODE
G A INS E T/+/ — /M E NU
+
0.00
F
T
+
S E T
C
L
+2.0%
SLOPE
-2.0%
SLOPE
LEFT
STREET GRADE
LEFT
CURB
LEFT
SIDEWALK
RIGHT
STREET GRADE
RIGHT
CURB
RIGHT
SIDEWALK
-2.0%
SLOPE
+2.0%
SLOPE
3.5' 1.5' 3.5'1.5'
+6.0%
SLOPE
-6.0%
SLOPE
C
L
