Control Box
P/N 7010-0344
2-5
Left and Right Automatic Operation Indicators
These LED's illuminate with the word "Auto" when the Right and/or
Left Auto/Manual switch Smart Knobs are used to switch System
Five to Automatic Operation.

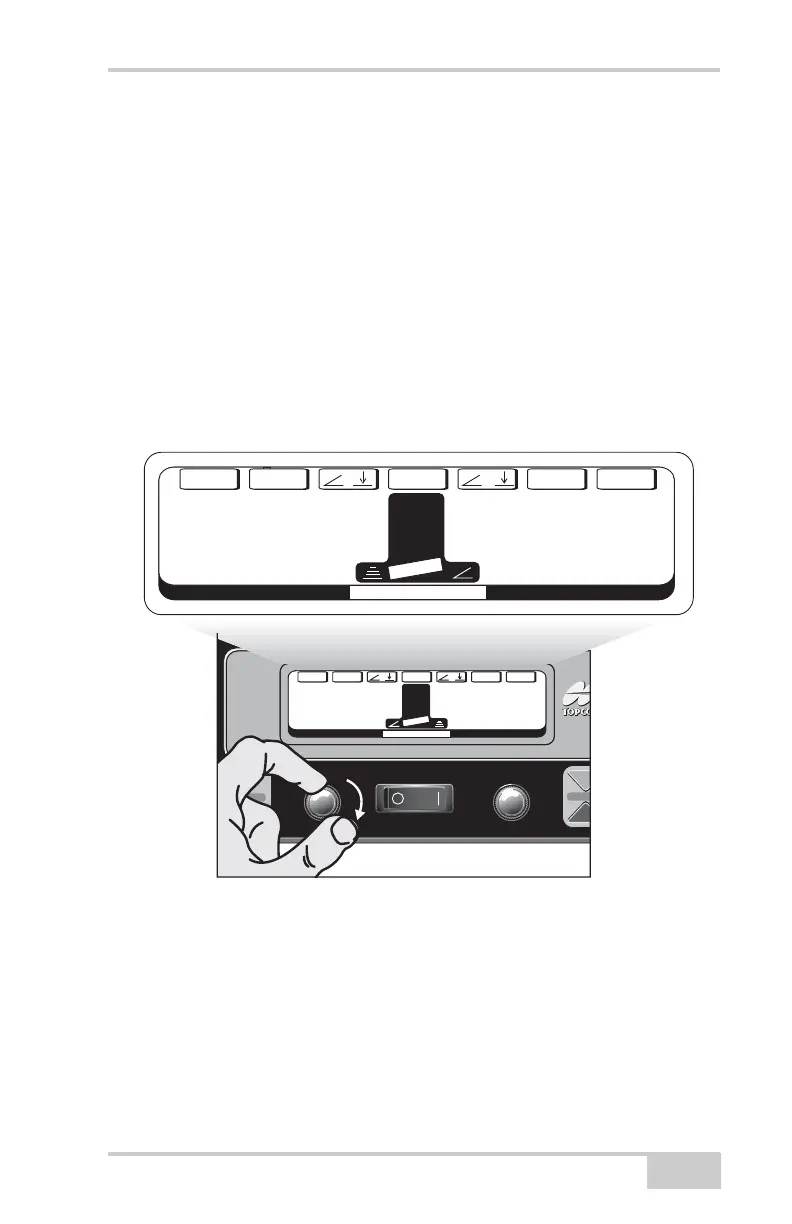

Left and Right Grade Adjustment Knobs
These knobs are used to make measured adjustments to the cross
slope or elevation settings.
• Adjusts the grade height when Elevation Control is selected.
Turning the knob clockwise increases the depth of cut, or lowers
the cutting edge.
