Transducer Replacement Procedure (Sonic Tracker II)
P/N 7010-0344
6-3
Transducer Replacement
Procedure (Sonic Tracker II)
NOTICE
NOTICE
If the Sonic Tracker II is experiencing erratic or inconsistent
readings, Transducer contamination should be considered
first before assuming any other type of failure.
The most common sign of Transducer contamination is the
ability of the Sonic Tracker II to "see" the ground, but not a
Sonic Stringline.
Sonic Tracker II Transducer
Replacement
1. Remove and discard the Filter Foam (a new Filter Foam is
provided in the Transducer Replacement Kit).

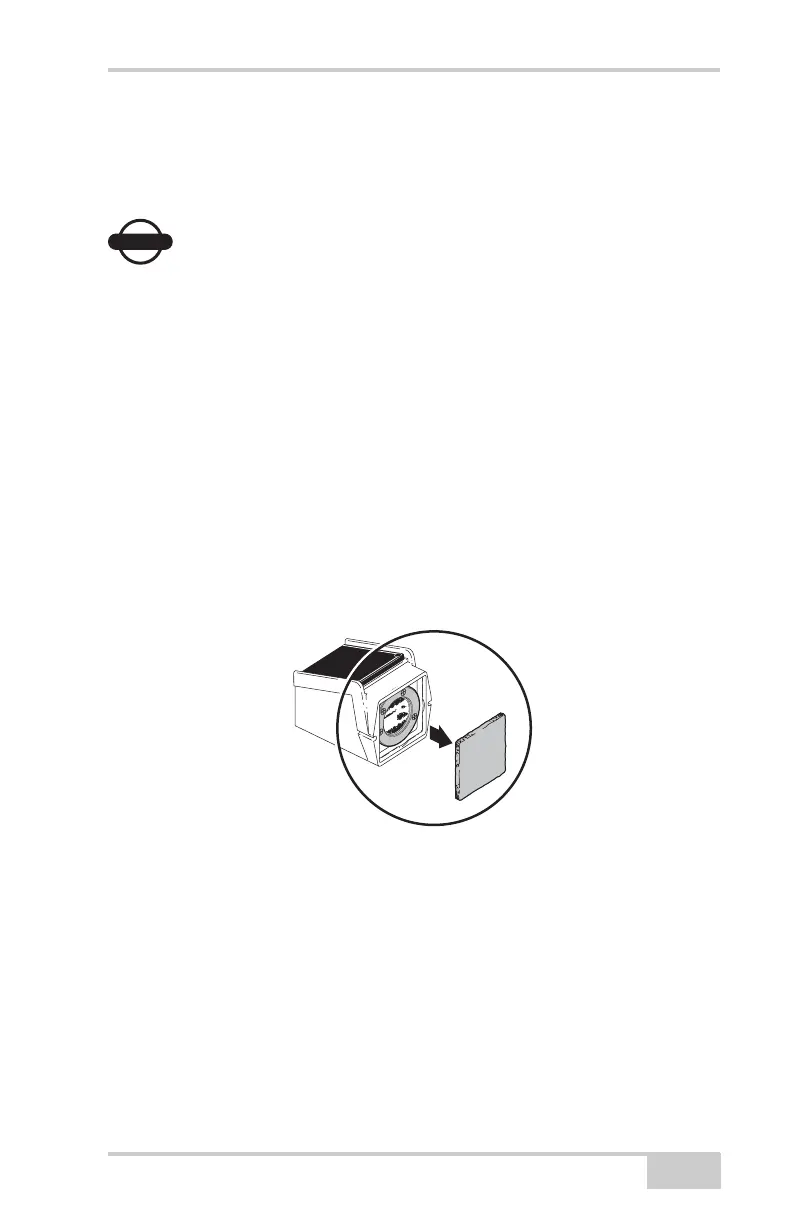

Figure 6-1.
2. Remove the four screws and the black Retaining Ring. There are
four replacement screws supplied in the Transducer Replacement
Kit, but it is advisable to use the original screws and keep the four
supplied in the kit for replacements in the event one or more are
lost). Remove and discard the "O"-Ring (a new "O"-Ring is
supplied with the Transducer Replacement kit).
