Topcon Motorgrader - Laser Receiver Setup

Getting Ready to Grade
Motorgrader System Five Operator’s Manual
4-12
Laser Receiver Setup
Trackerjack and Vibration Pole installation
and positioning
Bolt the vibration pole to the "L"-Bar and visually check to get the
"L"-Bar and vibration pole plumb.
To attach the Trackerjack, turn on the Control Box and attach the coil
cord to the Trackerjack.

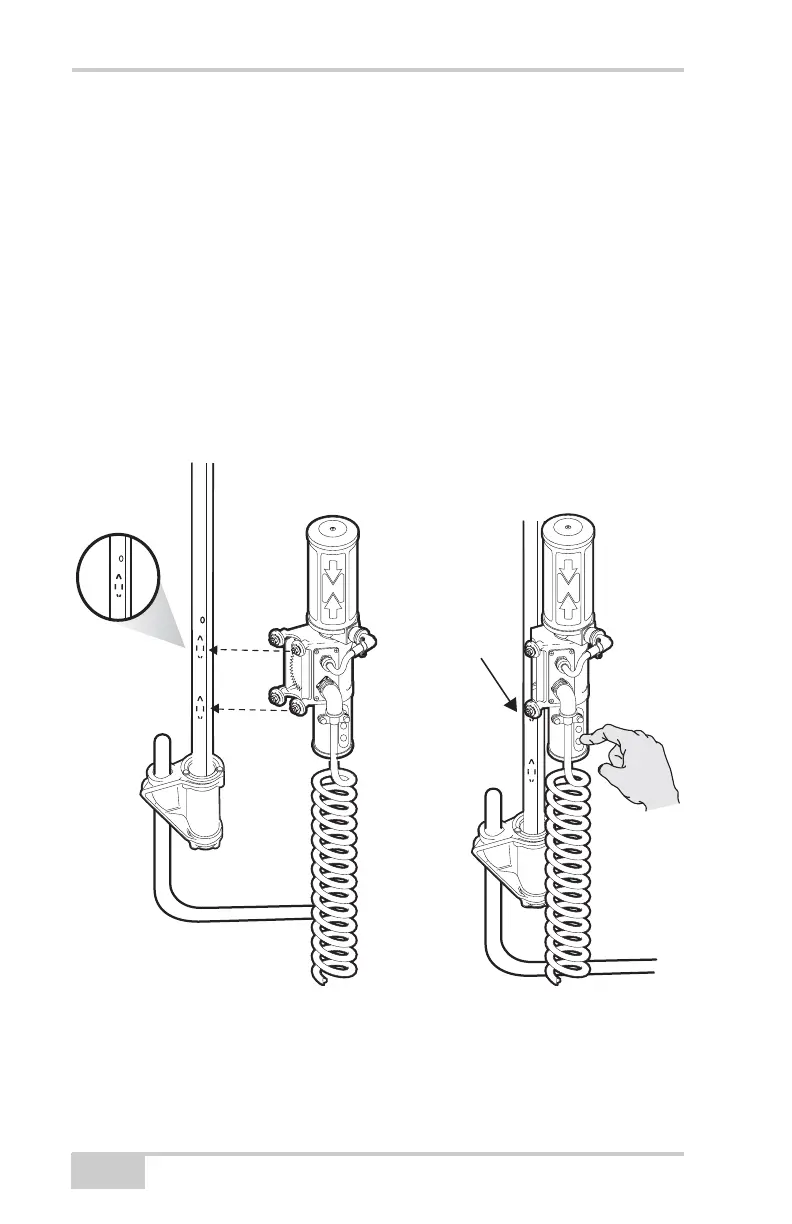

Place the Trackerjack on the vibration pole so the four wheels slide
into the slots at the bottom of the pole.
Push the manual raise button on the Trackerjack to raise it up the pole.
Figure 4-17.
M agnetic
S ensor
