Rotation Sensor Cleaning and Lubrication
P/N 7010-0344
6-7
Rotation Sensor Cleaning and
Lubrication
The Rotation Sensor baseplate should occasionally be cleaned and
greased. Although the sensor does not need lubrication, the grease
will keep contaminents from acumulating in the baseplate and
binding the sensor.
NOTICE
NOTICE
Cleaning and lubrication of the Rotation Sensor may need
to be more frequent if operating in excessively dusty or
gritty materials.
Cleaning the Rotation Sensor
The following procedures detail the disassembly of the rotation
Sensor for cleaning.
1. Place the moldboard perpendicular to the frame of the grader and
lower the cutting edge to the ground.
2. Remove the four screws securing the two halves of the retaining
ring and remove the retaining rings.

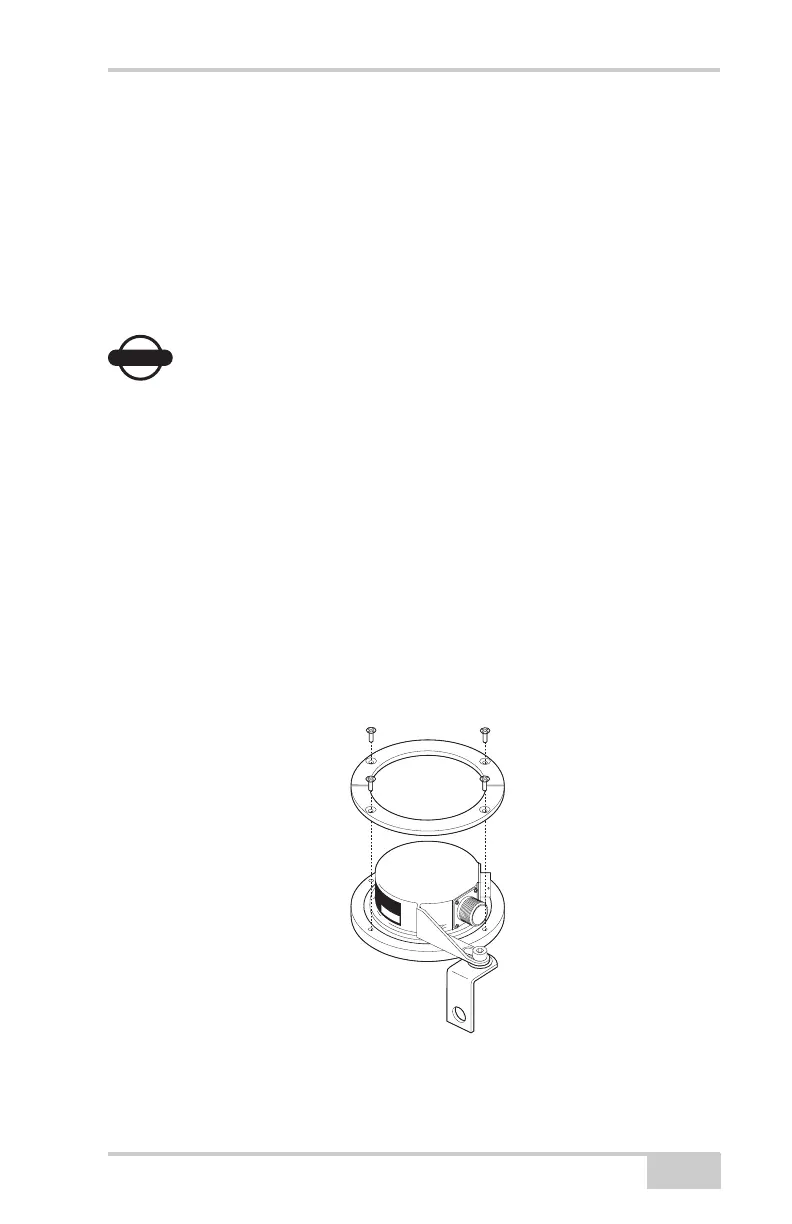

Figure 6-7.
REMOVE FOUR (4)
SCREWS AND TWO
HALVES OF RETAINER
