Topcon Motorgrader - Lubricating the Rotation Sensor

Rotation Sensor Cleaning and Lubrication
P/N 7010-0344
6-9
Lubricating the Rotation Sensor

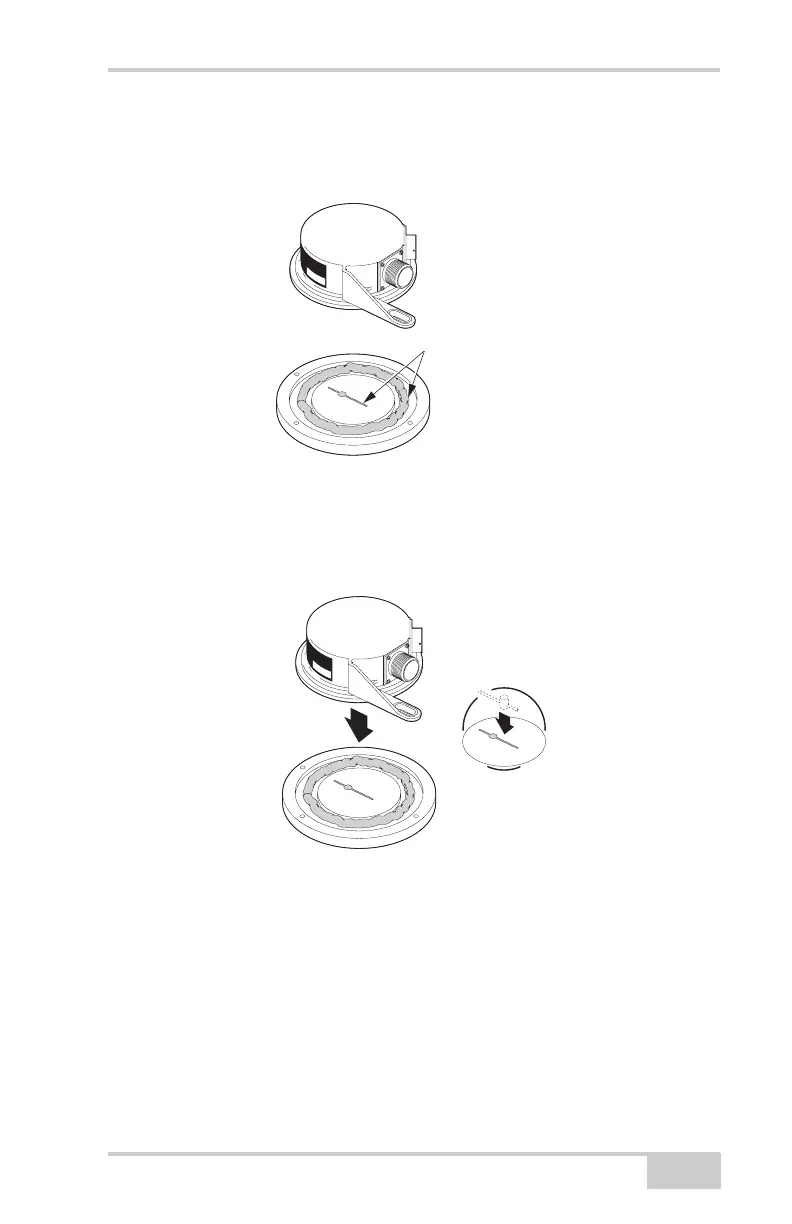

1. Pack the base plate reservoir and pin cavity with fresh grease.
Figure 6-10.
2. Place the Rotation Sensor back on the base plate. Make sure the
rotation pin seats firml in the pin cavity (it will only seat correctly
one way).
Figure 6-11.
PACK SENSOR CHANNEL
AND PIN SLOT WITH
FRESH GREASE
PLACE ROTATION SENSOR
ON BASE PLATE
MAKE SURE
ROTATION PIN
IS ALIGNED
CORRECTLY
