System Overview
Motorgrader System Five Operator’s Manual
1-8

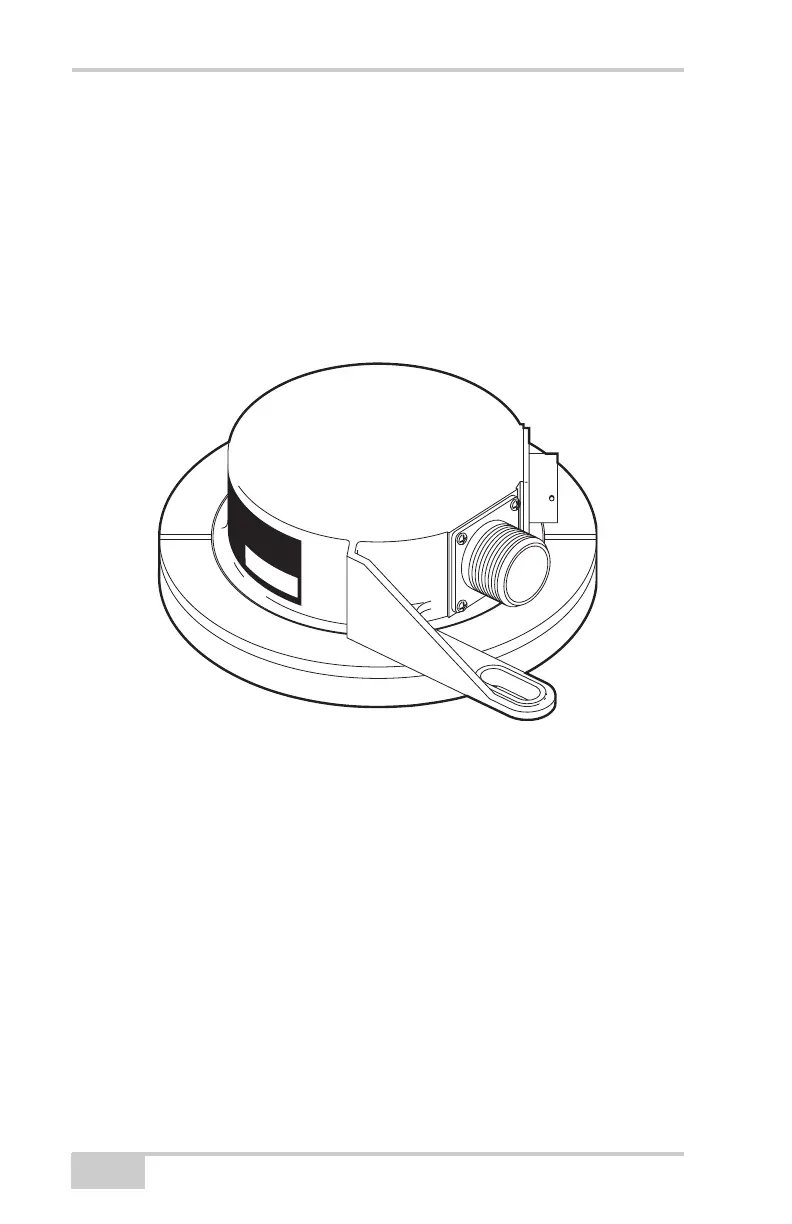

Rotation Sensor
The Rotation Sensor continuously monitors the rotation angle of the
blade. This enables the operator to rotate the blade at any time, and
System Five will continue to maintain the desired cross slope.
The Rotation Sensor is a sealed unit and contains no adjustments.
Once attached to the machine it should not be removed, other than for
periodic maintenance (refer to Maintenance Section of this manual).
Figure 1-7.
