Mainfall Sensor
P/N 7010-0344
1-9

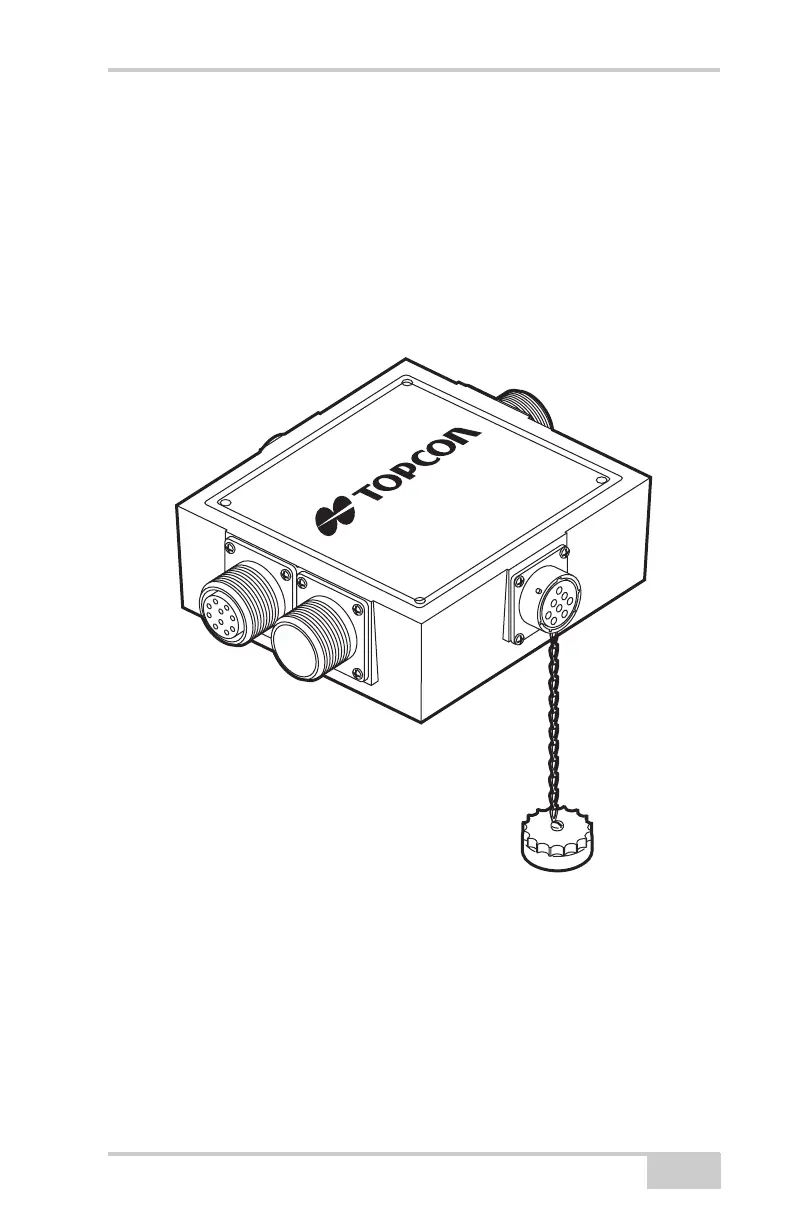

Mainfall Sensor
The Mainfall Sensor uses the same type of precision electronic device
that is used by the Blade Slope Sensor. It mounts under the Hydraulic
Manifold Assembly and measures the slope of the machine in the
direction of machine travel.
The Mainfall Sensor is a sealed unit and contains no manual
adjustments. Once attached to the machine, it should not be removed.
Figure 1-8.
